WN Track dumper TD15

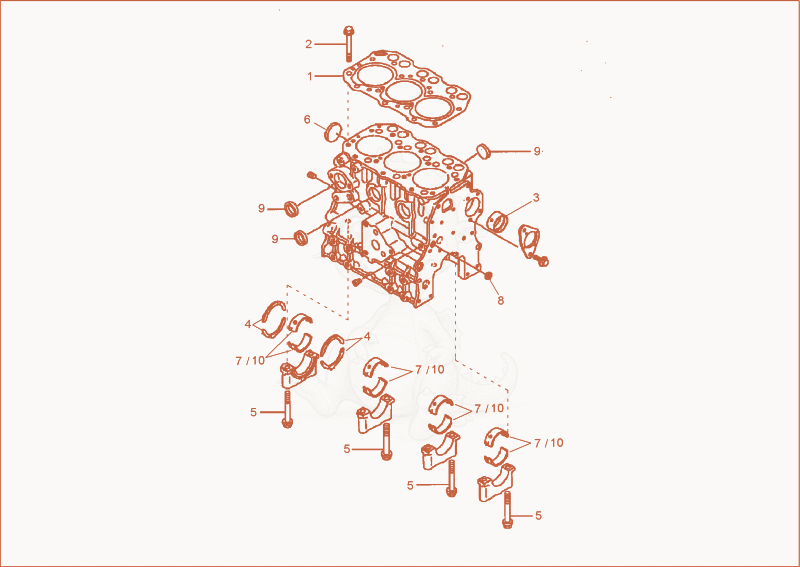

TD15 cylinder block Diagram

Exploded parts diagram of the cylinder block of a Wacker Neuson TD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000107565Not stocked
    cylinder head gasket×1
  • 21000065803Not stocked
    socket cap screw×14
  • 31000065835Not stocked
    bearing camshaft×1
  • 41000065823Not stocked
    axial bearing×2
  • 51000109430
    $10.43
    SCREW - 1000109430×8
  • 61000109433
    $30.10
    PLUG - 1000109433×1
  • 71000064578Not stocked
    bearing crank shaft×4
  • 81000085170
    $4.54
    PLUG - 1000085170×1
  • 91000085171
    $19.04
    PLUG - 1000085171×6
  • 101000064600Not stocked
    bearing crank shaft×4
