WN Track dumper TD15

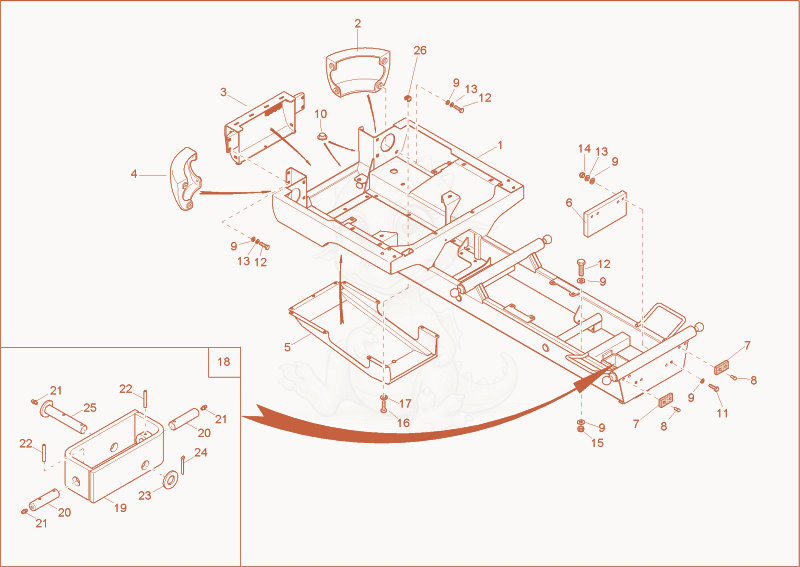

TD15 CHASSIS Diagram

Exploded parts diagram of the CHASSIS of a Wacker Neuson TD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000060944Not stocked
    chassis×1
  • 21000064946Not stocked
    cast iron edge×1
  • 31000060945Not stocked
    rear plate×1
  • 41000064947
    $769.88
    Castironedge 1000064947×1
  • 51000061041Not stocked
    cover×1
  • 61000061042Not stocked
    ballast weight×1
  • 71000002903
    $11.15
    REFLECTOR - 1000002903×2
  • 81000082697
    $0.80
    blind rivet A3x12 - 1000082697×4
  • 91000082638
    $0.73
    washer 13 -DIN134 - 1000082638×32
  • 101000060911Not stocked
    plug×4
  • 111000085359
    $1.83
    HEX SCREW - 1000085359×2
  • 121000015347Not stocked
    hex screw×20
  • 131000022017Not stocked
    spring washer×14
  • 141000015415Not stocked
    hexagon nut×2
  • 151000020127Not stocked
    hexagon nut×8
  • 161000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×11
  • 171000015434Not stocked
    washer×11
  • 181000111978Not stocked
    transformation kit cylinder lodging×1
  • 191000132959Not stocked
    cylinder bearing×1
  • 201000132956Not stocked
    pin×2
  • 211000015475Not stocked
    grease nipple×3
  • 221000082719
    $0.73
    cotter pin 5x36 - 1000082719×2
  • 231000015440Not stocked
    u-washer×1
  • 241000082731Not stocked
    cotterpin×1
  • 251000132955Not stocked
    pin×1
  • 261000094959
    $1.13
    Korgmutter M10 4,8-6,2 - 1000094959×11
