WN Track dumper TD15

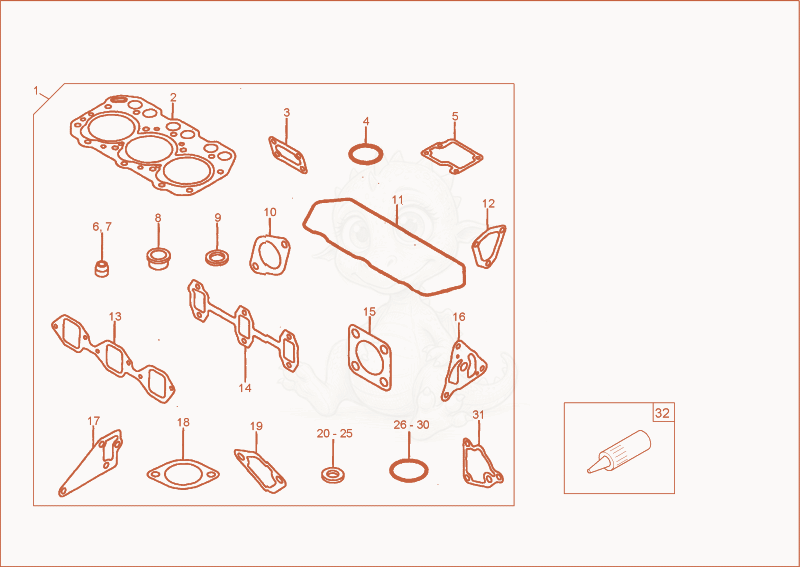

TD15 SEAL KIT Diagram
- 11000065827Not stockedseal kit diesel engine×1
- 21000107565Not stockedcylinder head gasket×1
- 31000107566Not stockedseal×1
- 41000035757Not stockedseal ring×3
- 51000107567Not stockedseal×1
- 61000004335Not stockedvalve shaft seal×3
- 71000002944Not stockedvalve shaft seal×3
- 81000002937Not stockedintermediate piece×3
- SEAL RING - 1000002938×6
- 101000065531Not stockedengine gasket×1
- 111000002912Not stockedvalve cover seal×1
- 121000107568Not stockedseal×1
- 131000064554Not stockedseal suction manifold×1
- 141000064553Not stockedexh.manifold gasket×1
- 151000004322Not stockedexhaust gasket×1
- 161000064576Not stockedengine gasket×1
- 171000002939Not stockedseal water pump×1
- 181000002919Not stockedgasket thermostat×1
- 191000002920Not stockedengine gasket×1
- 201000002929Not stockedseal ring×2
- 211000063379Not stockedseal ring×4
- seal ring - 1000072813×3
- 231000063378Not stockedseal ring×7
- 241000107569Not stockedSEAL RING×2
- 251000012360Not stockedengine gasket×1
- O-RING - 1000107571×2
- O-RING - 1000003894×2
- O-RING - 1000064543×1
- O-RING - 1000021889×1
- 301000107561Not stockedo-ring×1
- 311000065796Not stockedgasket filter housing×1
- 321000035794Not stockedsealing compound×1
