WN Track dumper TD15

TD15 PUMP UNIT Diagram

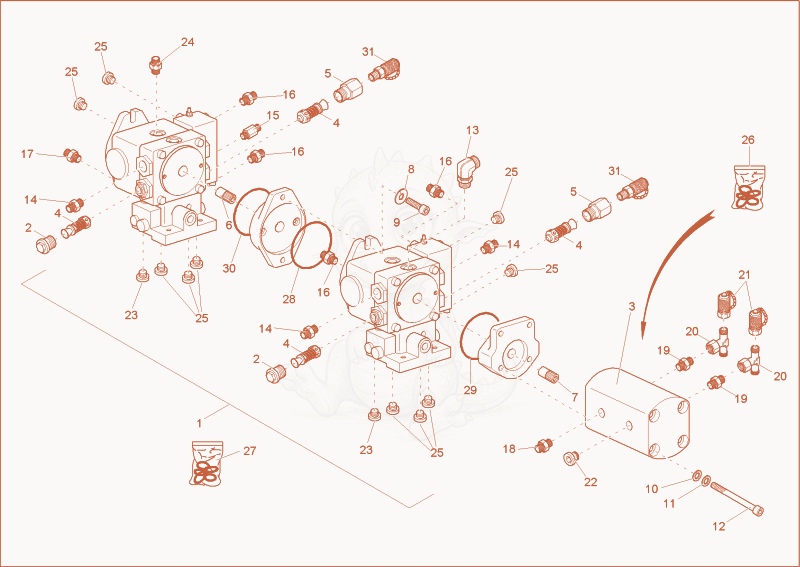

Exploded parts diagram of the PUMP UNIT of a Wacker Neuson TD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000061156Not stocked
    hydraulic pump×1
  • 21000142660Not stocked
    plug×2
  • 31000061154Not stocked
    gear pump×1
  • 41000142659Not stocked
    pressure limit cartridge×4
  • 51000142657Not stocked
    reduction×2
  • 61000061067
    $189.08
    COUPLING - 1000061067×1
  • 71000061155Not stocked
    coupling×1
  • 81000061021Not stocked
    washer×2
  • 91000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 111000022016Not stocked
    spring washer×2
  • 121000082537Not stocked
    cheese head screw×2
  • 131000060913Not stocked
    screw joint×1
  • 141000060906Not stocked
    screw joint×3
  • 151000060912Not stocked
    screw joint×1
  • 161000015530Not stocked
    screw joint×4
  • 171000082987
    $4.62
    GE12LR1/4OROMDA3C - 1000082987×1
  • 181000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×1
  • 191000082928
    $4.41
    GE08LR3/8A3CX - 1000082928×2
  • 201000015518
    $8.71
    ET08LOMDA3C - 1000015518×2
  • 211000000575Not stocked
    minimess point×2
  • 211000060921Not stocked
    stud×2
  • 221000082831
    $5.07
    VSTI3/4EDA3C - 1000082831×1
  • 231000020797Not stocked
    screw joint×2
  • 241000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 251000082827
    $1.50
    VSTI1/8EDA3C - 1000082827×10
  • 261000061068Not stocked
    seal kit gear pump×1
  • 271000061069Not stocked
    seal kit piston pump×1
  • 281000141865Not stocked
    o-ring×1
  • 291000141868Not stocked
    o-ring×1
  • 301000141864Not stocked
    o-ring×1
  • 311000119244Not stocked
    minimess point×2
