TH412 Telehandler

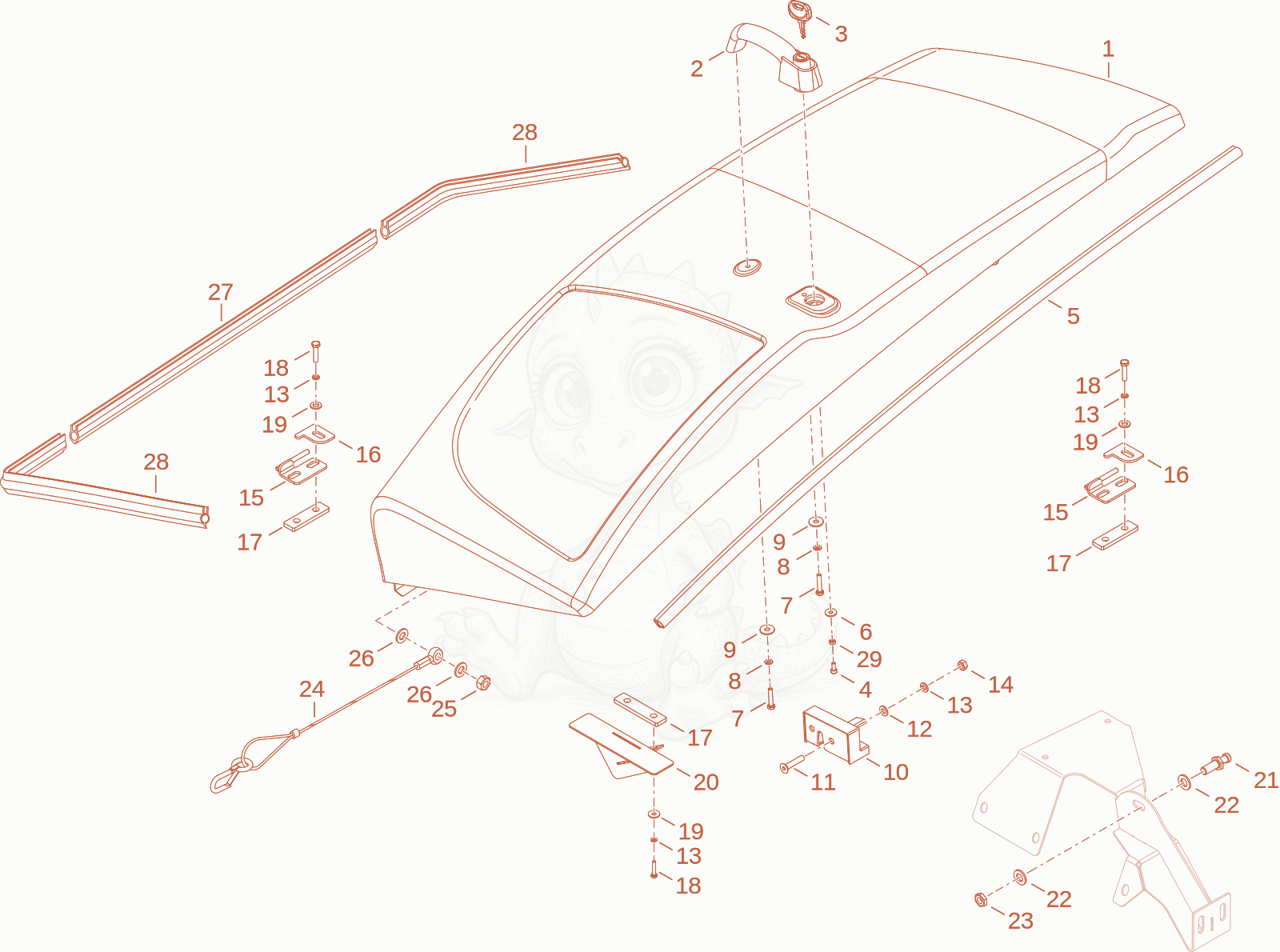

TH412 engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson TH412, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000275808
    $5,187.69
    Bonnet 1000275808×1
  • 21000204728
    $86.91
    Handle - 1000204728×1
  • 31000211833
    $11.44
    Key - 1000211833×1
  • 41000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×1
  • 51000228552
    $74.83
    Sealing - 1000228552×1
  • 61000049083
    $0.97
    NUT-HEX - 1000049083×1
  • 71000015339Not stocked
    hex screw×2
  • 81000015444Not stocked
    spring washer×2
  • 91000015430Not stocked
    u-washer×2
  • 101000222719
    $86.32
    Latch - 1000222719×1
  • 111000224073
    $1.34
    SCREW - 1000224073×2
  • 121000015431Not stocked
    washer×2
  • 131000030951Not stocked
    spring washer×6
  • 141000015406Not stocked
    hexagon nut×2
  • 151000268131
    $20.03
    Hinge - 1000268131×2
  • 161000268002
    $47.45
    LOCKING - 1000268002×1
  • 171000267978
    $92.10
    STEEL - 1000267978×3
  • 181000013008Not stocked
    hex screw×4
  • 191000013027Not stocked
    washer×4
  • 201000268038
    $51.15
    seal plate - 1000268038×1
  • 211000225389
    $32.73
    Bolt - 1000225389×1
  • 221000049219Not stocked
    washer×2
  • 231000236507
    $1.52
    HEXAGON NUT - 1000236507×1
  • 241000269253
    $33.65
    fasten rope - 1000269253×1
  • 251000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 261000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 271000287640
    $5.60
    rubber profile - 1000287640×1
  • 281000287638
    $6.94
    Edge protection - 1000287638×2
  • 291000222991
    $2.18
    Washer - 1000222991×1
  • 301000271019Not stocked
    hinge×1
