TH412 Telehandler

TH412 brake Diagram

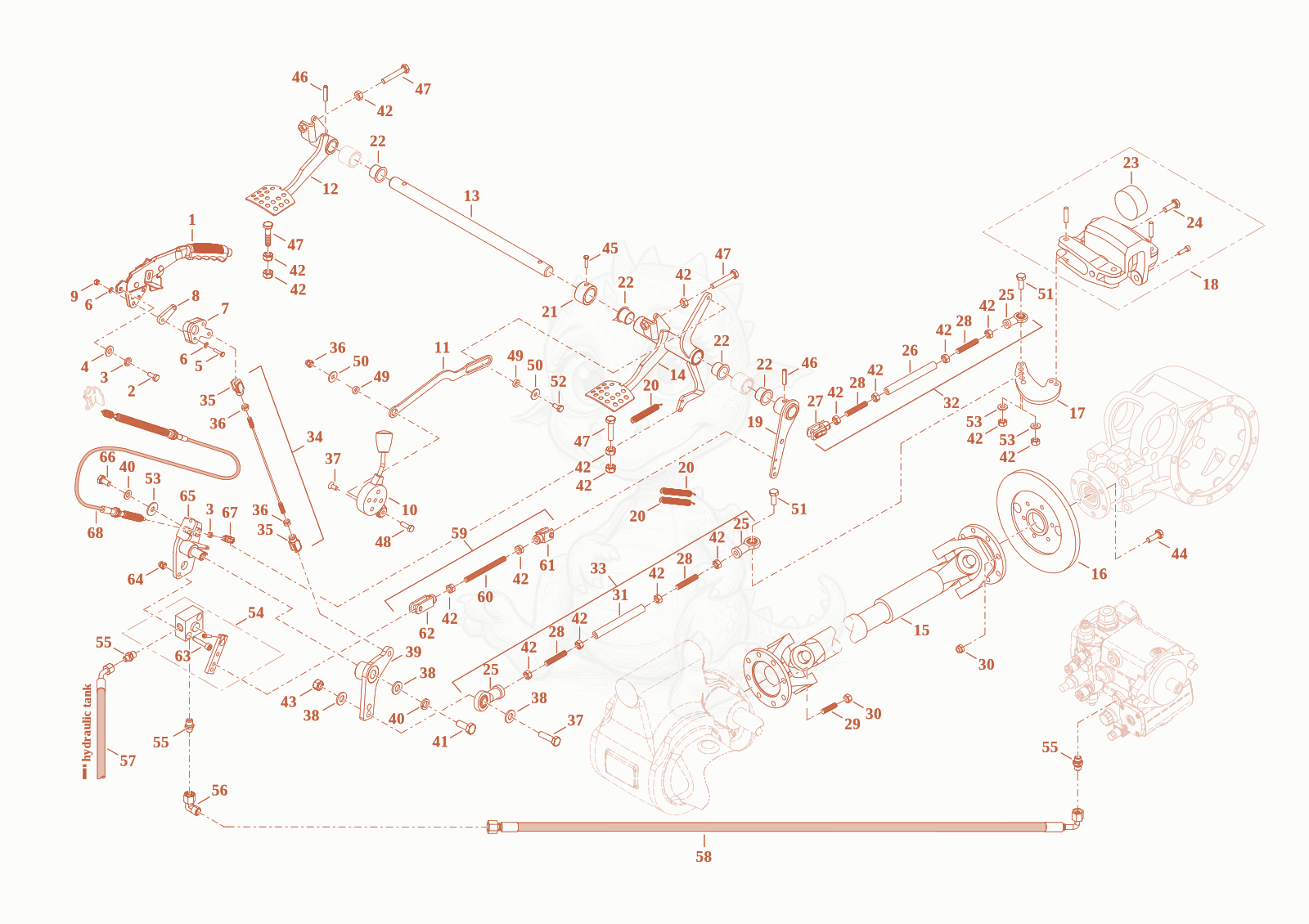

Exploded parts diagram of the brake of a Wacker Neuson TH412, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000309845Not stocked
    brake lever×1
  • 21000013008Not stocked
    hex screw×2
  • 31000030951Not stocked
    spring washer×2
  • 41000015431Not stocked
    washer×2
  • 51000085310
    $0.78
    hex screw - 1000085310×2
  • 61000015430Not stocked
    u-washer×4
  • 71000290290
    $49.84
    parking brake lever - 1000290290×1
  • 81000286826
    $37.08
    thread plate - 1000286826×1
  • 91000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 111000360715Not stocked
    TIE ROD×1
  • 121000187348
    $72.25
    LEVER - 1000187348×1
  • 131000187345
    $215.20
    Shaft 1000187345×1
  • 141000187346
    $127.69
    Lever 1000187346×1
  • 151000235635
    $1,026.61
    Cardanshaft 1000235635×1
  • 161000098574
    $283.86
    Brakedisc 1000098574×1
  • 171000268082
    $13.99
    brake lever - 1000268082×1
  • 181000107204
    $401.42
    Brakecalliper 1000107204×1
  • 191000187347
    $39.64
    lever - 1000187347×1
  • 201000238287
    $38.69
    Tension spring - 1000238287×3
  • 211000254277
    $4.65
    SET SCREW - 1000254277×1
  • 221000186862
    $5.97
    SLIDE BEARING - 1000186862×4
  • 231000019915Not stocked
    brake lining×2
  • 241000047790Not stocked
    hex screw×1
  • 251000222688
    $28.56
    JOINT HEAD - 1000222688×3
  • 261000268081
    $14.49
    pipe line - 1000268081×1
  • 271000222571
    $5.32
    CONNECTOR-SWIVEL HEAD - 1000222571×1
  • 281000239872
    $1.19
    thread rod - 1000239872×4
  • 291000048914
    $1.31
    stud - 1000048914×6
  • 301000114374
    $5.97
    HEXAGON NUT - 1000114374×12
  • 311000286827
    $73.21
    pressure rod - 1000286827×1
  • 321000268124
    $76.07
    Lever kpl. - 1000268124×1
  • 331000292184
    $114.21
    Lever kpl. - 1000292184×1
  • 341000235711
    $37.97
    Low-speed control - 1000235711×1
  • 351000083334
    $3.11
    fork head - 1000083334×2
  • 361000015406Not stocked
    hexagon nut×4
  • 371000085355
    $1.51
    hex screw - 1000085355×1
  • 381000124882
    $1.11
    Body washer 10,5x30x2,5 - 1000124882×2
  • 391000286829
    $83.34
    Lever - 1000286829×1
  • 401000022016Not stocked
    spring washer×3
  • 411000013009Not stocked
    hex screw×1
  • 421000015407Not stocked
    hexagon nut×15
  • 431000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 441000047828Not stocked
    hex screw×6
  • 451000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×1
  • 461000082713
    $0.88
    COTTER PIN - 1000082713×2
  • 471000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×4
  • 481000015343Not stocked
    hex screw×1
  • 491000235687
    $5.52
    SHIM - 1000235687×2
  • 501000013027Not stocked
    washer×1
  • 511000015346Not stocked
    hex screw×1
  • 521000019136Not stocked
    hex screw×1
  • 531000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 541000173606
    $478.39
    inching device - 1000173606×1
  • 551000000577Not stocked
    screw joint×3
  • 561000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 571000241310
    $47.16
    SLHYDR 1SN 6,0PN8 45 PN12 90 L600,0 180 - 1000241310×1
  • 581000220885
    $29.93
    SLHYDR 1SN 6,0PN8 0 PN8 90 L850,0 - 1000220885×1
  • 591000236771
    $26.44
    tie rod - 1000236771×1
  • 601000237531
    $8.13
    thread rod - 1000237531×1
  • 611000083334
    $3.11
    fork head - 1000083334×1
  • 621000223325
    $9.35
    FORK HEAD - 1000223325×1
  • 631000128080
    $1.46
    cheese head screw M8x40-8.8 A2C DIN912 - 1000128080×2
  • 641000015414Not stocked
    hexagon nut×2
  • 651000235787
    $27.74
    support piece - 1000235787×1
  • 661000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 671000083348
    $3.21
    fork joint - 1000083348×1
  • 681000187762
    $85.42
    Cable pull - 1000187762×1
