TH412 Telehandler

TH412 SP Exhaust Components Diagram

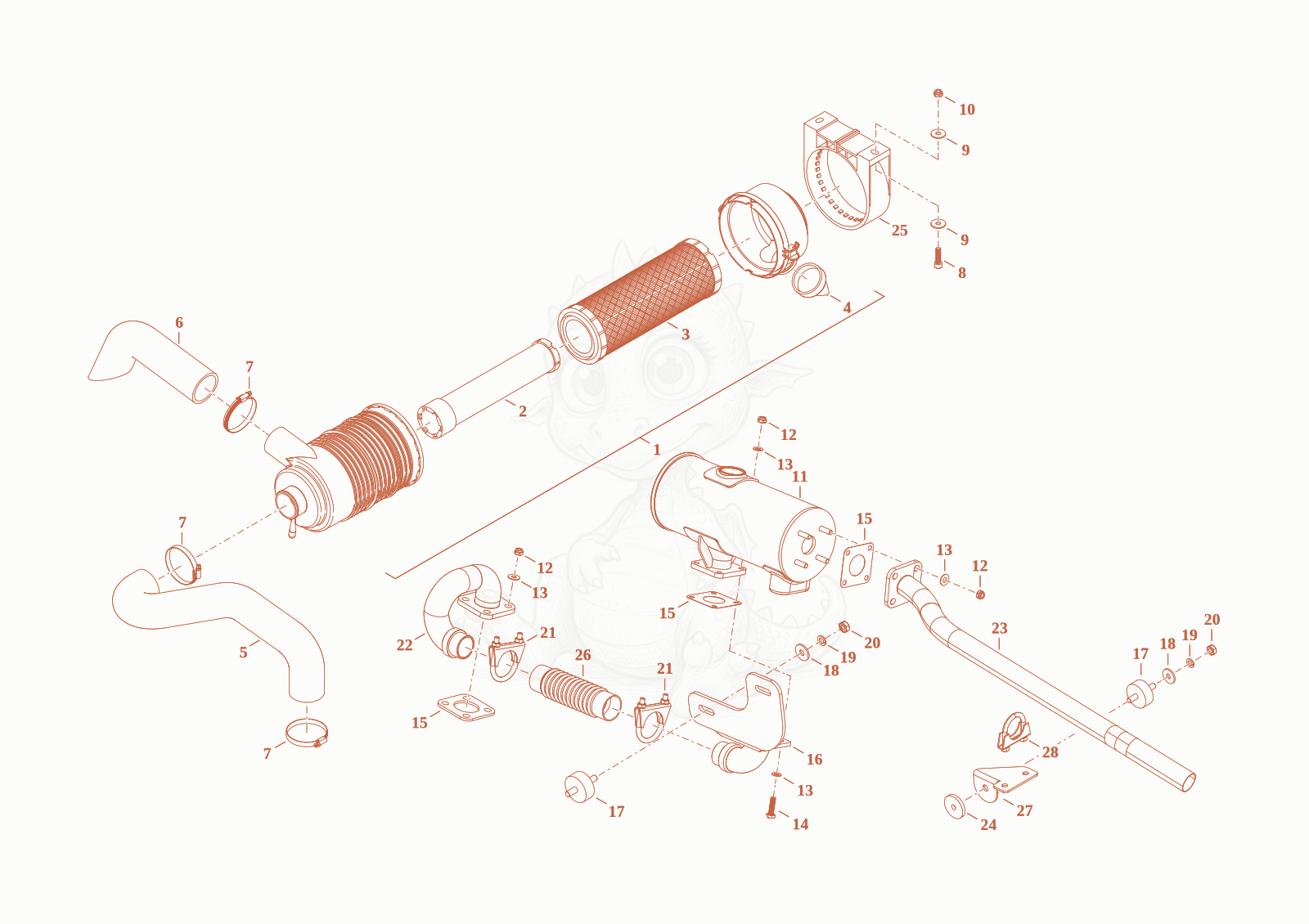

Exploded parts diagram of the SP Exhaust Components of a Wacker Neuson TH412, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069108Not stocked
    air cleaner×1
  • 21000004567Not stocked
    airfilter insert×1
  • 31000052549Not stocked
    filter cartridge×1
  • 41000084971
    $6.25
    dustexhaust valve - 1000084971×1
  • 51000386648Not stocked
    air suction hose×1
  • 61000185656
    $76.31
    Preshaped tube - 1000185656×1
  • 71000223546
    $7.16
    Clamp - 1000223546×3
  • 81000013014Not stocked
    cheese head screw×2
  • 91000013027Not stocked
    washer×2
  • 101000013022Not stocked
    hexagon nut×2
  • 111000246533
    $968.87
    Silencer 1000246533×1
  • 121000114374
    $5.97
    HEXAGON NUT - 1000114374×16
  • 131000015431Not stocked
    washer×20
  • 141000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 151000107718
    $11.73
    exhaust gasket - 1000107718×3
  • 161000375669Not stocked
    bracket exhaust×1
  • 171000330167Not stocked
    rubber buffer×3
  • 181000222588
    $1.30
    Washer - 1000222588×3
  • 191000022016Not stocked
    spring washer×3
  • 201000015407Not stocked
    hexagon nut×3
  • 211000062595
    $2.61
    clamp - 1000062595×2
  • 221000247241
    $575.55
    Exhaust pipe - 1000247241×1
  • 231000360133Not stocked
    end pipe×1
  • 241000222843
    $34.56
    U-WASHER - 1000222843×1
  • 251000034622Not stocked
    bracket×1
  • 261000388221
    $121.34
    exhaust pipe - 1000388221×1
  • 271000360134Not stocked
    bracket exhaust×1
  • 281000001721
    $8.18
    clamp - 1000001721×1
