TH412 Telehandler

TH412 brake Diagram

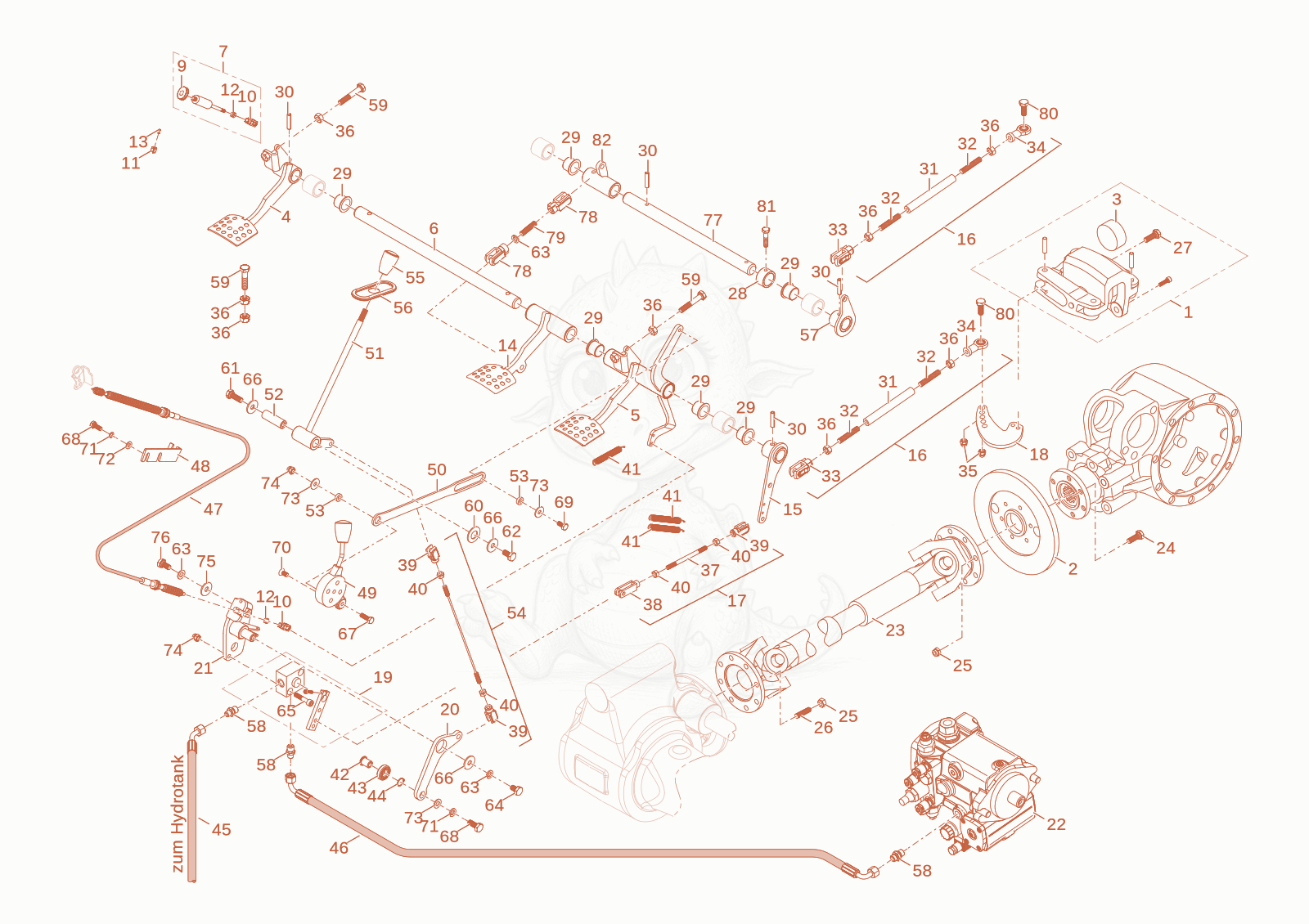

Exploded parts diagram of the brake of a Wacker Neuson TH412, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000107204
    $401.42
    Brakecalliper 1000107204×1
  • 21000098574
    $283.86
    Brakedisc 1000098574×1
  • 31000019915Not stocked
    brake lining×2
  • 41000187348
    $72.25
    LEVER - 1000187348×1
  • 51000187346
    $127.69
    Lever 1000187346×1
  • 61000187345
    $215.20
    Shaft 1000187345×1
  • 71000268568
    $117.68
    Lever kpl. - 1000268568×1
  • 91000197032
    $5.98
    STAR HANDLE - 1000197032×1
  • 101000083348
    $3.21
    fork joint - 1000083348×2
  • 111000242095
    $2.17
    clip - 1000242095×1
  • 121000015405Not stocked
    hexagon nut×3
  • 131000223370
    $1.11
    BLIND RIVET - 1000223370×1
  • 141000254295
    $91.33
    LEVER - 1000254295×1
  • 151000187347
    $39.64
    lever - 1000187347×1
  • 161000268124
    $76.07
    Lever kpl. - 1000268124×2
  • 171000236771
    $26.44
    tie rod - 1000236771×1
  • 181000268082
    $13.99
    brake lever - 1000268082×1
  • 191000173606
    $478.39
    inching device - 1000173606×1
  • 201000235739
    $105.93
    Lever - 1000235739×1
  • 211000235787
    $27.74
    support piece - 1000235787×1
  • 221000235639
    $4,672.07
    Displacementpump 1000235639×1
  • 231000235635
    $1,026.61
    Cardanshaft 1000235635×1
  • 241000047828Not stocked
    hex screw×6
  • 251000049101Not stocked
    hexagon nut×12
  • 261000048914
    $1.31
    stud - 1000048914×6
  • 271000047790Not stocked
    hex screw×1
  • 281000254277
    $4.65
    SET SCREW - 1000254277×1
  • 291000186862
    $5.97
    SLIDE BEARING - 1000186862×6
  • 301000082713
    $0.88
    COTTER PIN - 1000082713×4
  • 311000268081
    $14.49
    pipe line - 1000268081×2
  • 321000239872
    $1.19
    thread rod - 1000239872×4
  • 331000222571
    $5.32
    CONNECTOR-SWIVEL HEAD - 1000222571×2
  • 341000222688
    $28.56
    JOINT HEAD - 1000222688×2
  • 351000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 361000015407Not stocked
    hexagon nut×8
  • 371000237531
    $8.13
    thread rod - 1000237531×1
  • 381000223325
    $9.35
    FORK HEAD - 1000223325×1
  • 391000083334
    $3.11
    fork head - 1000083334×3
  • 401000015406Not stocked
    hexagon nut×4
  • 411000310572Not stocked
    tension spring×3
  • 421000235686
    $21.58
    PIN - 1000235686×1
  • 431000079546
    $10.18
    ball bearing - 1000079546×1
  • 441000049504Not stocked
    lock ring×1
  • 451000241310
    $47.16
    SLHYDR 1SN 6,0PN8 45 PN12 90 L600,0 180 - 1000241310×1
  • 461000241333
    $41.32
    SLHYDR 1SN 6,0PN8 90 PN8 90 L850,0 90 - 1000241333×1
  • 471000187762
    $85.42
    Cable pull - 1000187762×1
  • 481000185674
    $7.35
    Abutment - 1000185674×1
  • 501000360715Not stocked
    TIE ROD×1
  • 511000185859
    $54.85
    LEVER - 1000185859×1
  • 521000235689
    $28.28
    pin - 1000235689×1
  • 531000235687
    $5.52
    SHIM - 1000235687×2
  • 541000235711
    $37.97
    Low-speed control - 1000235711×1
  • 551000151244
    $24.02
    HANDLE - 1000151244×1
  • 561000151552
    $8.90
    seal - 1000151552×1
  • 571000254274
    $8.94
    BRAKE LEVER - 1000254274×1
  • 581000000577Not stocked
    screw joint×3
  • 591000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×3
  • 601000165255
    $3.53
    DISC SPRING - 1000165255×1
  • 611000015364Not stocked
    hex screw×1
  • 621000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 631000022016Not stocked
    spring washer×3
  • 641000013009Not stocked
    hex screw×1
  • 651000128080
    $1.46
    cheese head screw M8x40-8.8 A2C DIN912 - 1000128080×1
  • 661000124882
    $1.11
    Body washer 10,5x30x2,5 - 1000124882×3
  • 671000015343Not stocked
    hex screw×1
  • 681000013008Not stocked
    hex screw×3
  • 691000019136Not stocked
    hex screw×1
  • 701000085531
    $0.80
    countersunk screw - 1000085531×3
  • 711000030951Not stocked
    spring washer×3
  • 721000015431Not stocked
    washer×2
  • 731000013027Not stocked
    washer×3
  • 741000015414Not stocked
    hexagon nut×2
  • 751000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 761000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 771000254272
    $29.93
    Brakeshaft 1000254272×1
  • 781000222571
    $5.32
    CONNECTOR-SWIVEL HEAD - 1000222571×2
  • 791000223126
    $2.07
    THREAD ROD - 1000223126×1
  • 801000015346Not stocked
    hex screw×2
  • 811000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×1
  • 821000254276
    $15.94
    BRAKE LEVER - 1000254276×1
