TH412 Telehandler

TH412 gear box housing Diagram

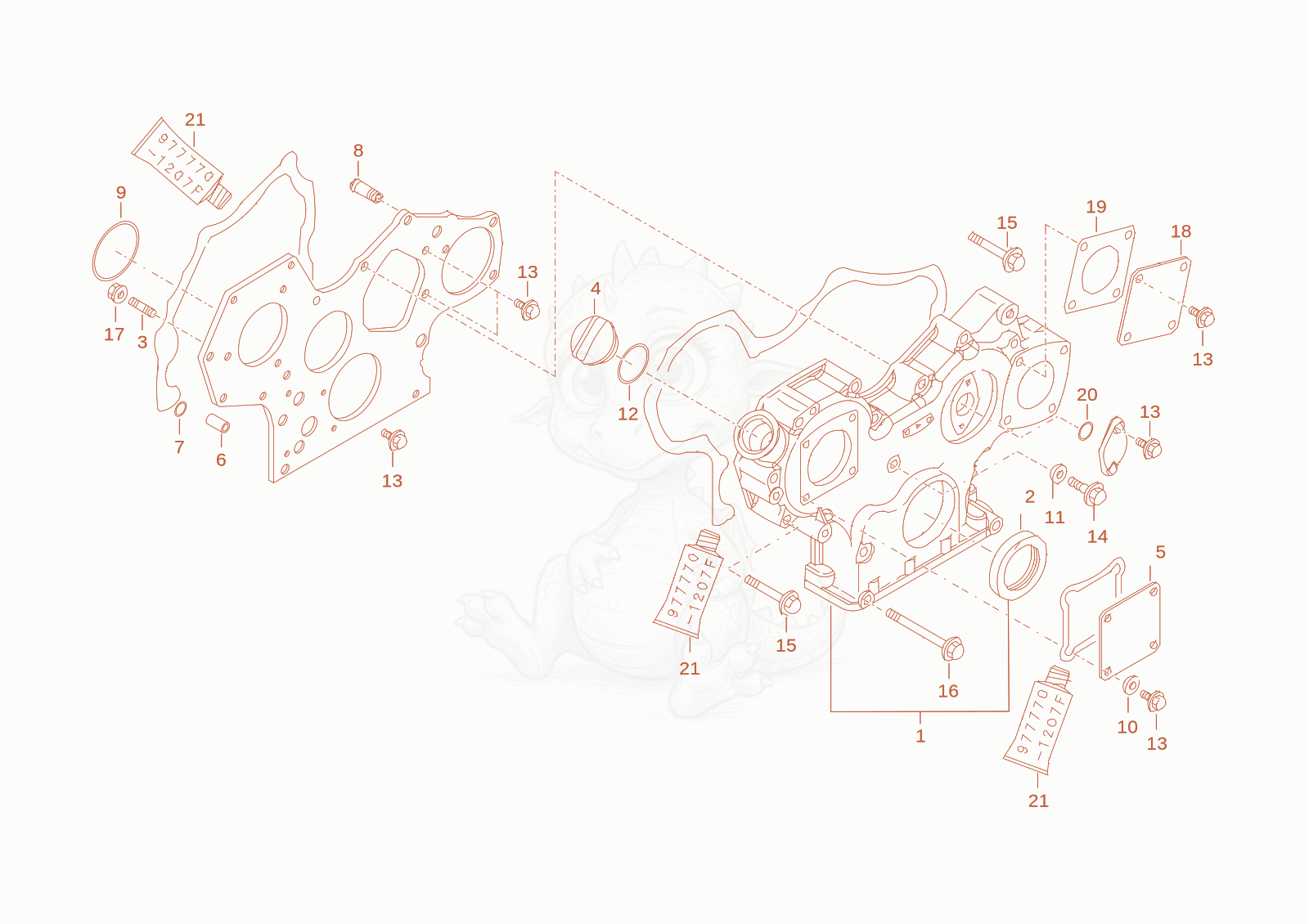

Exploded parts diagram of the gear box housing of a Wacker Neuson TH412, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000280544
    $677.27
    Gearbox 1000280544×1
  • 21000178895
    $22.21
    shaft seal - 1000178895×1
  • 31000280545
    $3.47
    Stud bolt - 1000280545×3
  • 41000002921Not stocked
    oil filler cap×1
  • 51000107740
    $9.49
    COVER - 1000107740×1
  • 61000144947
    $8.47
    PIPE LINE - 1000144947×2
  • 71000107920
    $2.55
    O-RING - 1000107920×2
  • 81000085181
    $21.74
    connection piece - 1000085181×2
  • 91000085182
    $3.79
    O-RING - 1000085182×1
  • 101000063378Not stocked
    seal ring×4
  • 111000063378Not stocked
    seal ring×1
  • 121000035757Not stocked
    seal ring×1
  • 131000085176
    $1.82
    HEX SCREW - 1000085176×13
  • 141000126868
    $2.72
    SCREW - 1000126868×1
  • 151000085184
    $2.45
    HEX SCREW - 1000085184×2
  • 161000107741
    $2.05
    SCREW - 1000107741×3
  • 171000098728
    $2.07
    Hexagon nut - 1000098728×3
  • 181000107740
    $9.49
    COVER - 1000107740×1
  • 191000071940Not stocked
    gasket injection pump×1
  • 201000021889
    $3.15
    O-RING - 1000021889×1
  • 211000197347
    $68.84
    Sealing compound - 1000197347×1
