WL20

WL20 mounting set pump Diagram

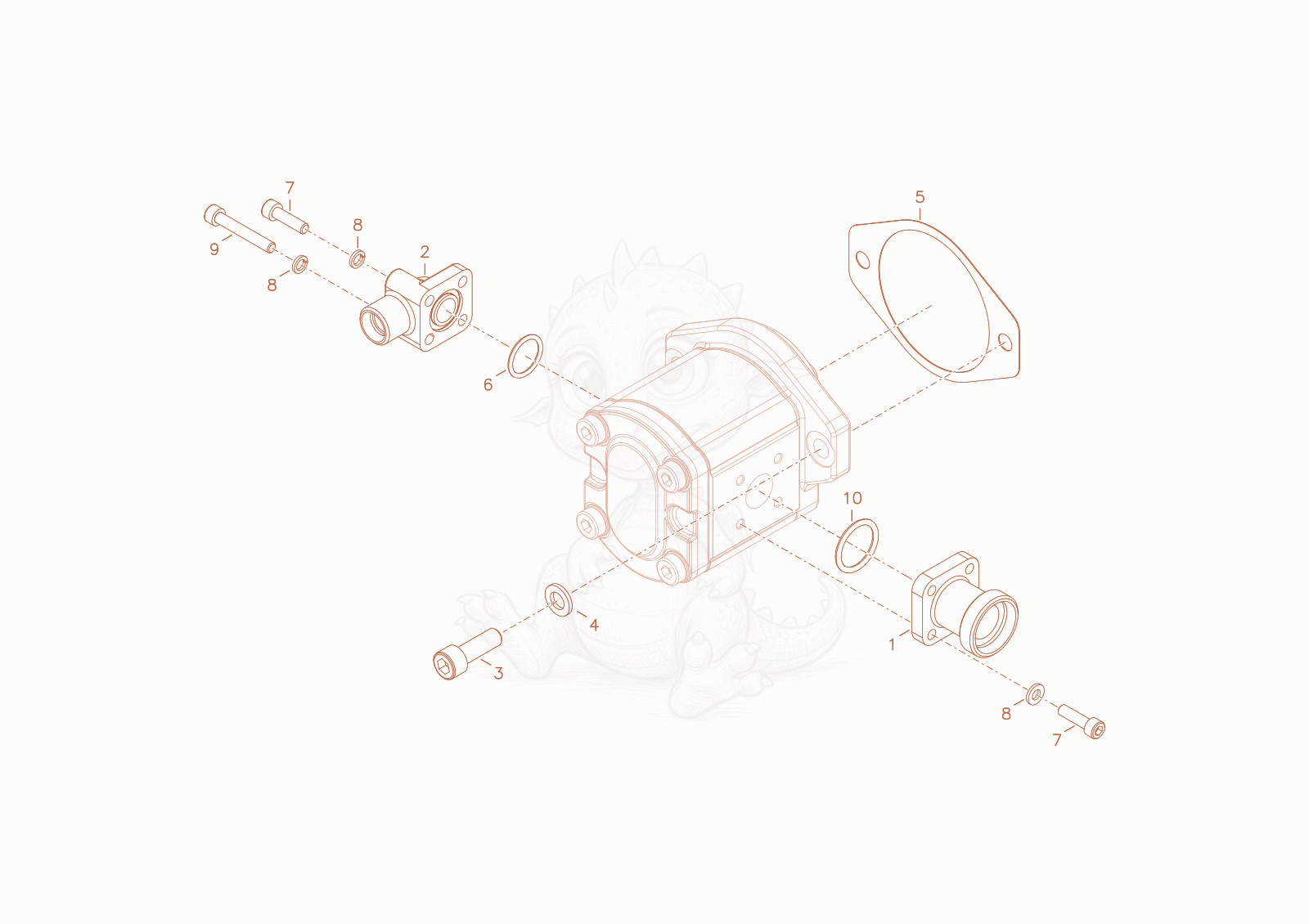

Exploded parts diagram of the mounting set pump of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000159947
    $88.80
    BFG28-L LK40 - 1000159947×1
  • 21000404335Not stocked
    screw joint×1
  • 31000015376Not stocked
    cheese head screw×2
  • 41000022016Not stocked
    spring washer×2
  • 51000225421
    $4.22
    SEAL - 1000225421×1
  • 61000090263
    $2.23
    O-RING - 1000090263×1
  • 71000048165Not stocked
    cheese head screw×6
  • 81000015444Not stocked
    spring washer×8
  • 91000085458
    $0.73
    Screw M6x40-8.8 A2C DIN912 - 1000085458×2
  • 101000224648
    $1.87
    Ring - 1000224648×1
