WL20

WL20 HYDRAULICS Diagram

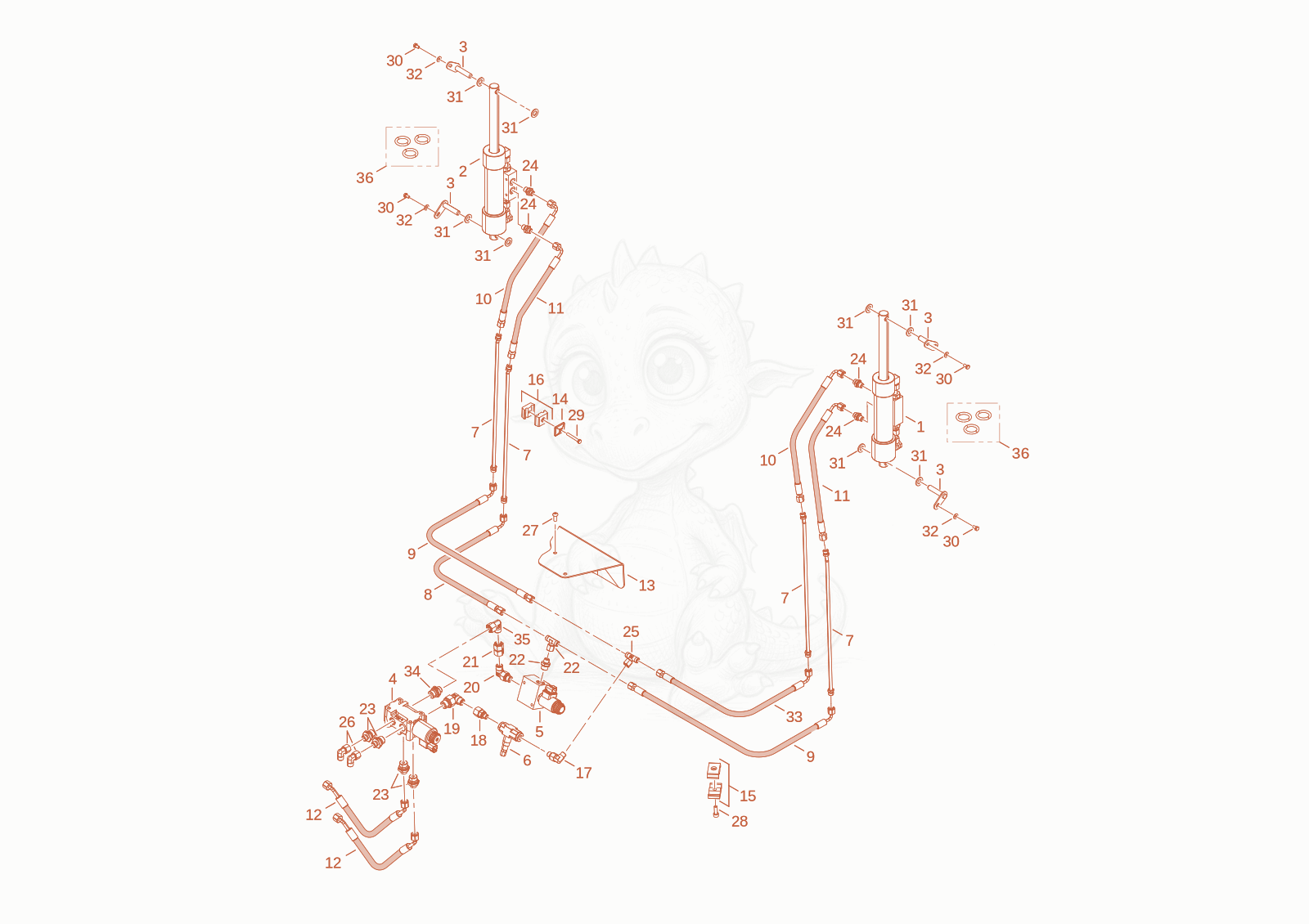

Exploded parts diagram of the HYDRAULICS of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000314045
    $470.53
    cylinder - 1000314045×1
  • 21000314046
    $470.53
    cylinder - 1000314046×1
  • 31000336067
    $72.66
    PIN - 1000336067×4
  • 41000283339
    $557.17
    Drivevalve 1000283339×1
  • 51000335644
    $216.58
    Valve - 1000335644×1
  • 61000342211Not stocked
    throttle stop valve×1
  • 71000317969Not stocked
    hydraulic pipe×4
  • 81000337791Not stocked
    Hose×1
  • 91000328481Not stocked
    Hose×2
  • 101000337438Not stocked
    Hose×2
  • 111000337437Not stocked
    Hose×2
  • 121000337591Not stocked
    Hose×2
  • 131000331165
    $123.64
    Sheet - 1000331165×1
  • 141000031211Not stocked
    cover plate×4
  • 151000222627
    $4.25
    BLOCK-CLAMPING - 1000222627×1
  • 161000346973Not stocked
    clamp×4
  • 171000028677Not stocked
    screw joint×1
  • 181000103496
    $36.42
    EGE12 LR1/4" A3C - 1000103496×1
  • 191000028722Not stocked
    screw joint×1
  • 201000028506Not stocked
    screw joint×1
  • 211000085111
    $13.24
    GZ12LA3C - 1000085111×1
  • 221000015489Not stocked
    screw joint×1
  • 231000106888
    $5.47
    GE10LR1/2"EDOMDA3C - 1000106888×4
  • 241000015488Not stocked
    screw joint×4
  • 251000015518
    $8.71
    ET08LOMDA3C - 1000015518×2
  • 261000015510Not stocked
    screw joint×2
  • 271000222746
    $1.22
    SCREW - 1000222746×2
  • 281000022386Not stocked
    cheese head screw×1
  • 291000085310
    $0.78
    hex screw - 1000085310×4
  • 301000020553Not stocked
    hex screw×4
  • 311000049219Not stocked
    washer×8
  • 321000222875
    $5.40
    Washer - 1000222875×4
  • 331000353528Not stocked
    Hose×1
  • 341000015493Not stocked
    screw joint×1
  • 351000000573Not stocked
    screw joint×1
  • 361000385421Not stocked
    cylinder seal kit×2
  • 371000221979
    $6.20
    protecting hose - 1000221979×0.5
