WL20

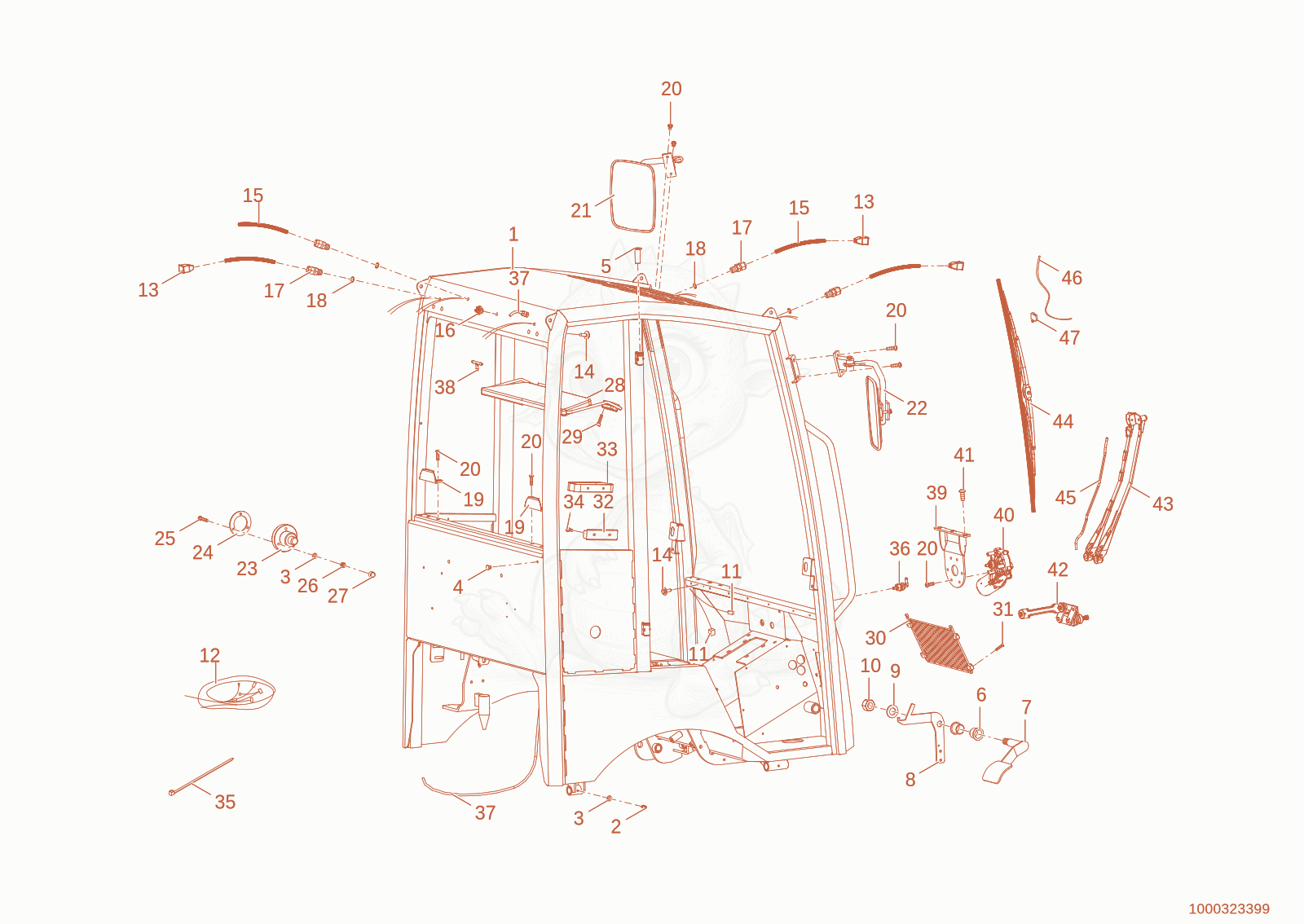

WL20 cab frame Diagram

Exploded parts diagram of the cab frame of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000302839
    $22,205.36
    Cabine 1000302839×1
  • 21000222726
    $1.34
    NIPPLE-GREASE - 1000222726×4
  • 31000015430Not stocked
    u-washer×10
  • 41000228578
    $1.96
    RUBBER PLUG - 1000228578×5
  • 51000297225
    $2.01
    bearing bush - 1000297225×4
  • 61000327109Not stocked
    bearing bush×2
  • 71000327110Not stocked
    foot pedal×1
  • 81000327111Not stocked
    accelerator lever×1
  • 91000021001
    $0.89
    WASHER - 1000021001×1
  • 101000020788Not stocked
    hexagon nut×1
  • 111000327112Not stocked
    wiring harness cabine×1
  • 121000327113Not stocked
    wiring harness cabine×1
  • 131000208050
    $2.73
    RUBBER CAP - 1000208050×4
  • 141000327114Not stocked
    hex screw×2
  • 151000374742Not stocked
    protecting hose×1
  • 161000270047
    $1.84
    screw - 1000270047×1
  • 171000067792Not stocked
    cable screwunion×6
  • 181000225013
    $22.53
    Ring - 1000225013×6
  • 191000213545
    $5.76
    Angle - 1000213545×2
  • 201000222686
    $1.11
    SCREW - 1000222686×11
  • 211000004593
    $48.57
    MIRROR - 1000004593×1
  • 221000004594
    $48.57
    MIRROR - 1000004594×1
  • 231000089459
    $53.84
    DOOR FASTENER - 1000089459×2
  • 241000124797
    $11.44
    rubber disc - 1000124797×2
  • 251000317564Not stocked
    ovalhead screw×6
  • 261000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×6
  • 271000196920
    $1.53
    PLASTIC CAP - 1000196920×6
  • 281000067780Not stocked
    sun visor×1
  • 291000085452
    $0.70
    allen screw M5x20-8.8 A2C DIN912 - 1000085452×4
  • 301000249803
    $92.33
    NET - 1000249803×1
  • 311000223106Not stocked
    ovalhead screw×4
  • 321000213556
    $72.91
    PLATE - 1000213556×1
  • 331000213555
    $82.27
    Bracket - 1000213555×1
  • 341000048623Not stocked
    ovalhead screw×2
  • 351000193825
    $1.12
    cable strap - 1000193825×7
  • 361000243865
    $9.14
    Hose duct - 1000243865×1
  • 371000116971
    $3.96
    water hose - 1000116971×8
  • 381000208189
    $22.69
    nipple - 1000208189×1
  • 391000327115
    $132.34
    Bracket - 1000327115×1
  • 401000321881Not stocked
    wiper motor×1
  • 411000222746
    $1.22
    SCREW - 1000222746×2
  • 421000327116
    $268.73
    likage - 1000327116×1
  • 431000486295Not stocked
    wiper arm×1
  • 441000327119Not stocked
    wiper blade×1
  • 451000213331
    $7.67
    water hose - 1000213331×1
  • 461000511150Not stocked
    water hose×1
  • 471000511163
    $16.75
    NOZZLE - 1000511163×1
