WL20

WL20 main harness Diagram

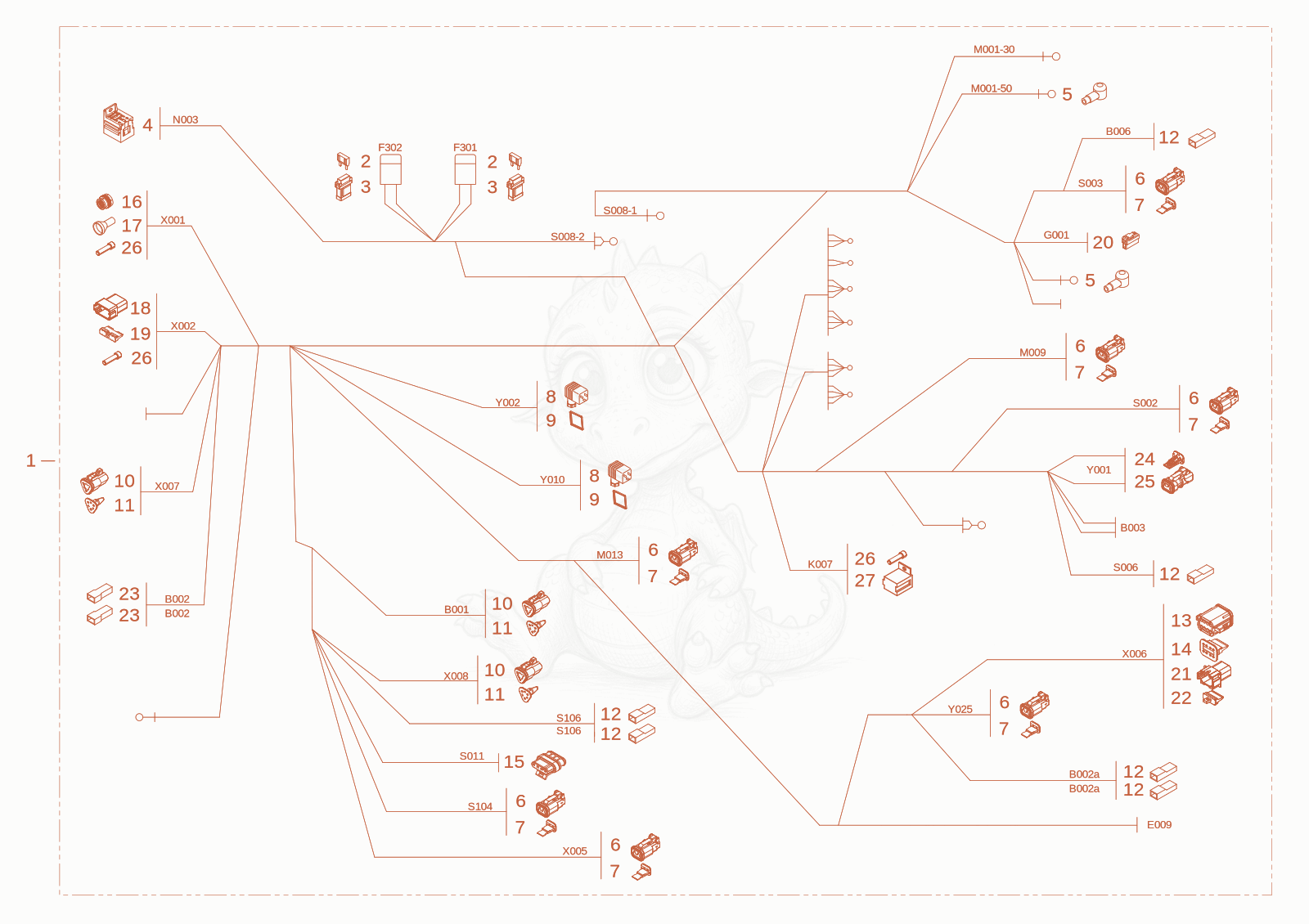

Exploded parts diagram of the main harness of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000410794Not stocked
    main harness×1
  • 21000015302
    $3.50
    fuse - 1000015302×2
  • 31000155563
    $28.49
    fuse holder - 1000155563×2
  • 41000207057
    $11.15
    bracket relay - 1000207057×1
  • 51000319062Not stocked
    protecting cap×2
  • 61000229795
    $9.42
    HOUSING-PLUG - 1000229795×7
  • 71000229786
    $9.23
    HOUSING-PLUG - 1000229786×7
  • 81000229816
    $12.42
    PLUG SLEEVE HOUSING - 1000229816×2
  • 91000225488
    $1.34
    SEAL - 1000225488×2
  • 101000027429Not stocked
    housing×3
  • 111000027433
    $1.57
    locking - 1000027433×3
  • 121000027435Not stocked
    insulating sleeve×6
  • 131000229857
    $49.27
    HOUSING-PLUG - 1000229857×1
  • 141000229851
    $1.55
    HOUSING-PLUG - 1000229851×1
  • 151000255531
    $4.79
    HOUSING-PLUG - 1000255531×1
  • 161000229778
    $194.93
    Housing - 1000229778×1
  • 171000228729
    $19.50
    rubber sleeve - 1000228729×1
  • 181000229766
    $38.54
    HOUSING - 1000229766×1
  • 191000229765
    $1.65
    locking - 1000229765×1
  • 201000199869
    $6.14
    PLUG - 1000199869×1
  • 211000229856
    $24.66
    HOUSING-PLUG - 1000229856×1
  • 221000229852
    $1.41
    locking - 1000229852×1
  • 231000019956Not stocked
    housing×2
  • 241000354443
    $51.49
    locking - 1000354443×1
  • 251000354166
    $33.28
    Housing - 1000354166×1
  • 261000030446Not stocked
    plug×1
  • 271000273586
    $30.45
    relay - 1000273586×1
