WL20

WL20 working hydraulic Diagram

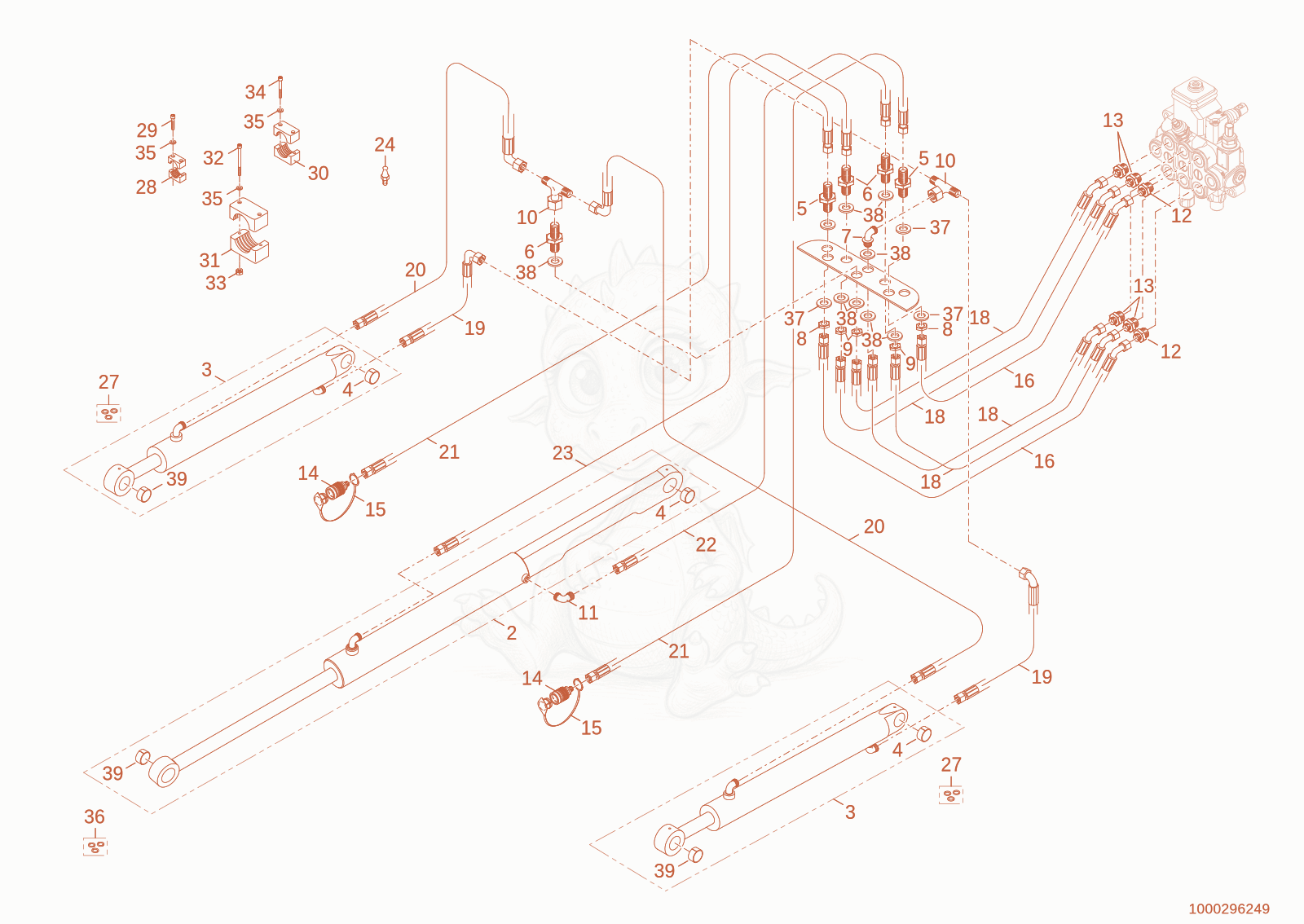

Exploded parts diagram of the working hydraulic of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 21000253239
    $804.06
    Tiltram 1000253239×1
  • 31000230077
    $498.72
    Liftcylinder 1000230077×2
  • 41000225631
    $11.77
    BEARING - 1000225631×3
  • 51000028480
    $5.07
    SV12-LA3C - 1000028480×2
  • 61000085076
    $4.95
    SV10-L - 1000085076×3
  • 71000085064
    $9.49
    WSV10LOMDA3C - 1000085064×1
  • 81000225972
    $2.38
    VERSCHR. 12L -KONTERMUTTER - 1000225972×2
  • 91000225971
    $2.07
    10L -KONTERMUTTER - 1000225971×3
  • 101000085057
    $13.12
    ET10LOMDA3C - 1000085057×2
  • 111000167458
    $49.70
    EWE10-LM18X1,5 A3C - 1000167458×1
  • 121000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 131000015491Not stocked
    screw joint×4
  • 141000002995Not stocked
    quick lock coupling×2
  • 151000226073
    $4.57
    CAP-DUST - 1000226073×2
  • 161000221561
    $31.24
    SLHYDR 2SN 10 PN12 0 PN12 45 L1600 S - 1000221561×2
  • 181000221677
    $52.34
    SLHYDR 2SC 8,0PN10 0 PN10 45 L1600 S - 1000221677×4
  • 191000220562
    $28.14
    SLHYDR 2SC 8,0PN10 0 PN10 90 L500,0S - 1000220562×2
  • 201000220561
    $54.31
    SLHYDR 2SC 8,0PN10 0 PN10 90 L880,0S - 1000220561×2
  • 211000221039
    $65.37
    SLHYDR 2SN 10 PN12 0 PN12 45 L2150 S - 1000221039×2
  • 221000220564
    $33.98
    SLHYDR 2SC 8,0PN10 0 PN10 0 L860,0S - 1000220564×1
  • 231000309691Not stocked
    Hose×1
  • 241000222726
    $1.34
    NIPPLE-GREASE - 1000222726×6
  • 271000225779
    $110.44
    KIT-SEAL - 1000225779×2
  • 281000222638
    $1.65
    BLOCK-CLAMPING - 1000222638×1
  • 291000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×4
  • 301000032326
    $3.92
    CLAMP - 1000032326×1
  • 311000222657
    $3.29
    BLOCK-CLAMPING - 1000222657×1
  • 321000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 331000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 341000015369Not stocked
    cheese head screw×2
  • 351000015430Not stocked
    u-washer×12
  • 361000269946
    $123.94
    CYLINDER SEAL KIT - 1000269946×1
  • 371000082625
    $0.83
    washer 19 - 1000082625×4
  • 381000021001
    $0.89
    WASHER - 1000021001×8
  • 391000225634
    $29.28
    SLIDE BEARING - 1000225634×3
