WL28e

WL28E(A10-01) wiring harness Diagram

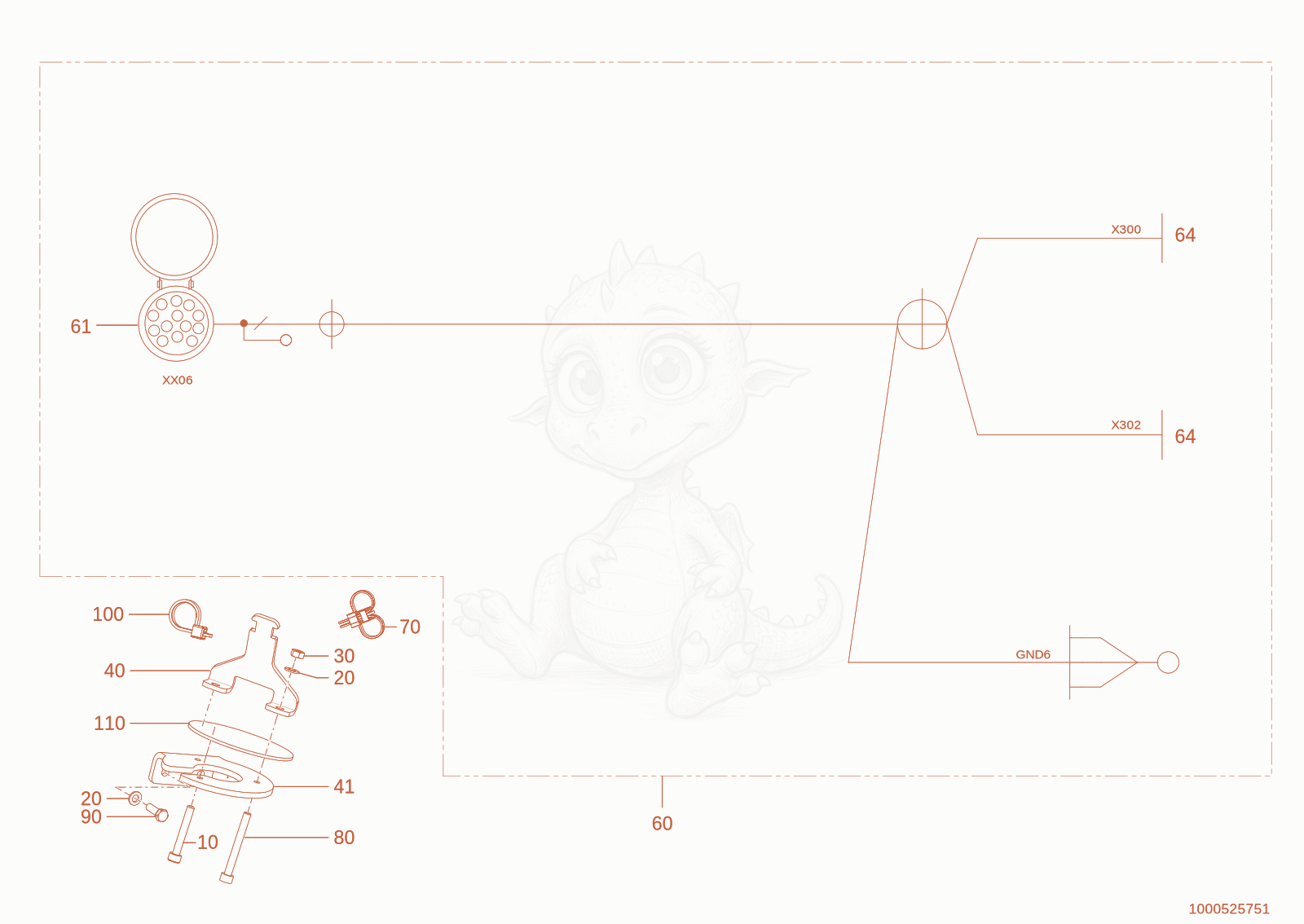

Exploded parts diagram of the wiring harness of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000082298
    $0.78
    cheese head screw - 1000082298×2
  • 201000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 301000049083
    $0.97
    NUT-HEX - 1000049083×2
  • 401000377156Not stocked
    cable bracket×1
  • 411000460504
    $28.48
    bracket - 1000460504×1
  • 601000422624Not stocked
    wiring harness×1
  • 611000105125
    $90.64
    Socket - 1000105125×1
  • 641000355191Not stocked
    pin contact×4
  • 701000399434Not stocked
    mounting×16
  • 801000082294
    $0.73
    cheese head screw - 1000082294×1
  • 901000085378
    $0.70
    hex screw - 1000085378×1
  • 1001000193759
    $0.36
    cable strap - 1000193759×2
  • 1101000206083
    $10.85
    rubber lining - 1000206083×1
