WL28e

WL28E(A10-01) quickhitch plate Diagram

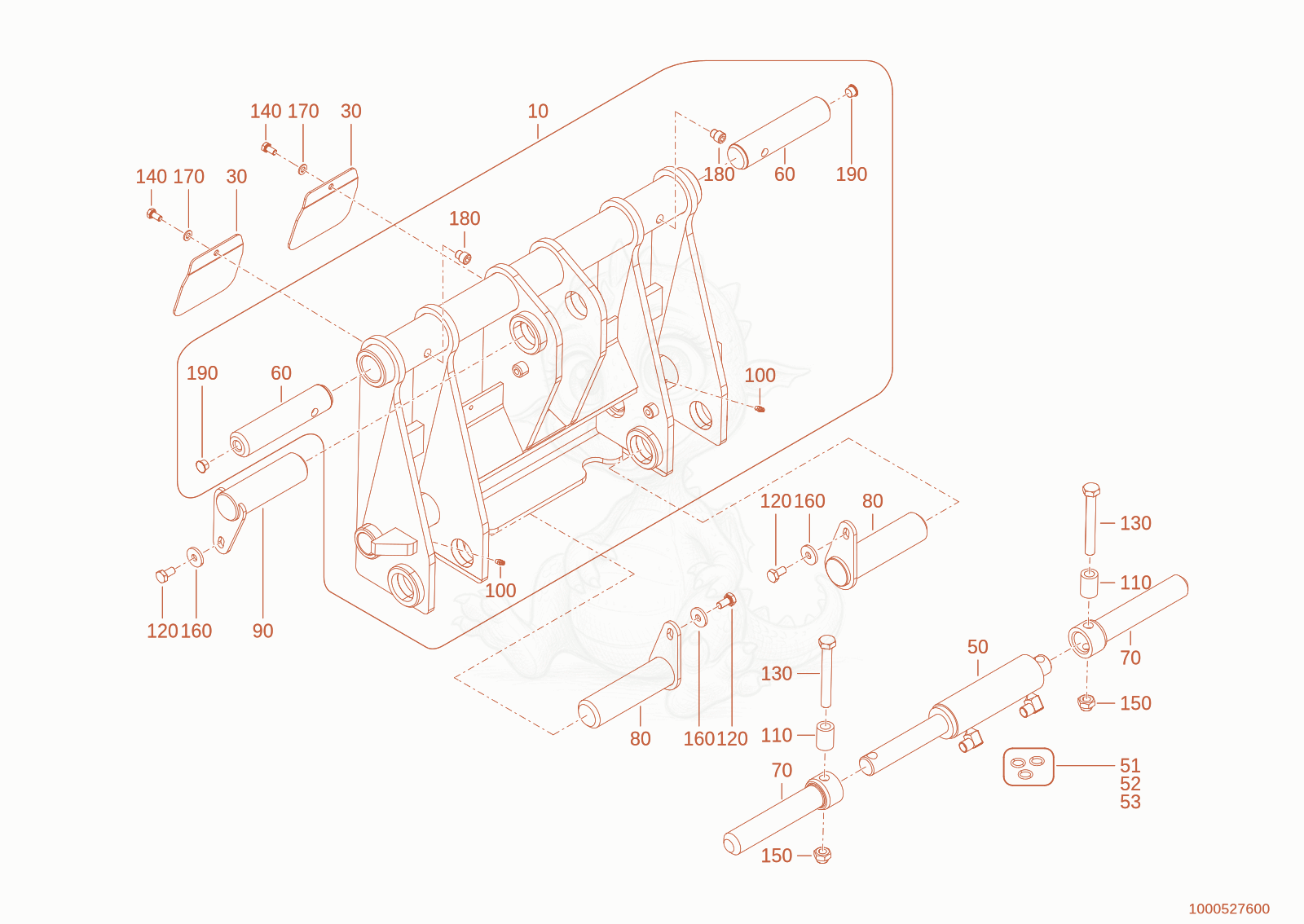

Exploded parts diagram of the quickhitch plate of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000427689
    $1,637.99
    Insert frame - 1000427689×1
  • 301000203790
    $85.72
    Cover plate - 1000203790×2
  • 501000230013
    $270.33
    Cylinder 1000230013×1
  • 511000225121
    $65.25
    CYLINDER SEAL KIT - 1000225121×1
  • 521000420615Not stocked
    cylinder seal kit×1
  • 531000422092Not stocked
    cylinder seal kit×1
  • 601000243363
    $73.89
    Pin 1000243363×2
  • 701000222385
    $52.23
    Bolt 1000222385×2
  • 801000224294
    $54.11
    Bolt 1000224294×2
  • 901000224364
    $80.14
    Pin 1000224364×1
  • 1001000222726
    $1.34
    NIPPLE-GREASE - 1000222726×2
  • 1101000196350
    $36.42
    Sleeve - 1000196350×2
  • 1201000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 1301000047409Not stocked
    hex screw×2
  • 1401000019136Not stocked
    hex screw×2
  • 1501000049060Not stocked
    hexagon nut×2
  • 1601000222577
    $1.45
    Washer - 1000222577×3
  • 1701000015431Not stocked
    washer×2
  • 1801000379838Not stocked
    thread pin×2
  • 1901000350310Not stocked
    lock plug×2
