WL28e

WL28E(A10-01) pivot block Diagram

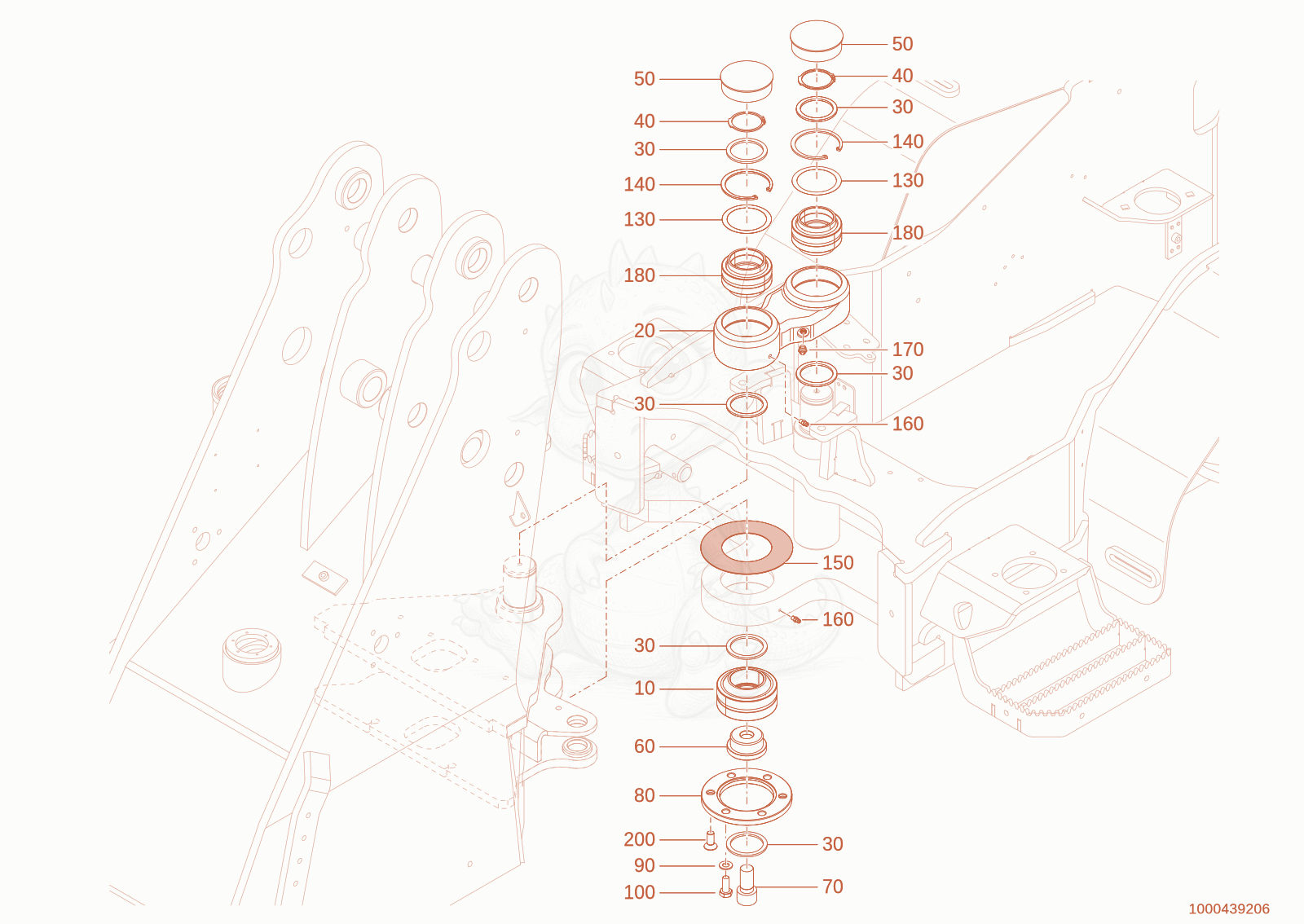

Exploded parts diagram of the pivot block of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000224321
    $59.25
    Pivotingbearing 1000224321×1
  • 201000501607Not stocked
    bearing housing×1
  • 301000095347
    $3.60
    fitting disc - 1000095347×6
  • 401000082755
    $1.81
    lock ring - 1000082755×2
  • 501000206737
    $6.11
    Plug - 1000206737×2
  • 601000550511Not stocked
    bearing disc×1
  • 701000222881
    $6.82
    SCREW - 1000222881×1
  • 801000408049Not stocked
    washer×1
  • 901000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 1001000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 1301000222591
    $1.19
    RING-SHIM - 1000222591×2
  • 1401000013035Not stocked
    lock ring×2
  • 1501000408244Not stocked
    rubber disc×1
  • 1601000222726
    $1.34
    NIPPLE-GREASE - 1000222726×2
  • 1701000050469
    $1.68
    grease nipple - 1000050469×1
  • 1801000224250
    $31.66
    Bearing - 1000224250×2
  • 1901000192755
    $40.00
    fitting disc - 1000192755×1
  • 2001000224077
    $1.34
    SCREW - 1000224077×1
