WL28e

WL28E(A10-01) wiring harness Diagram

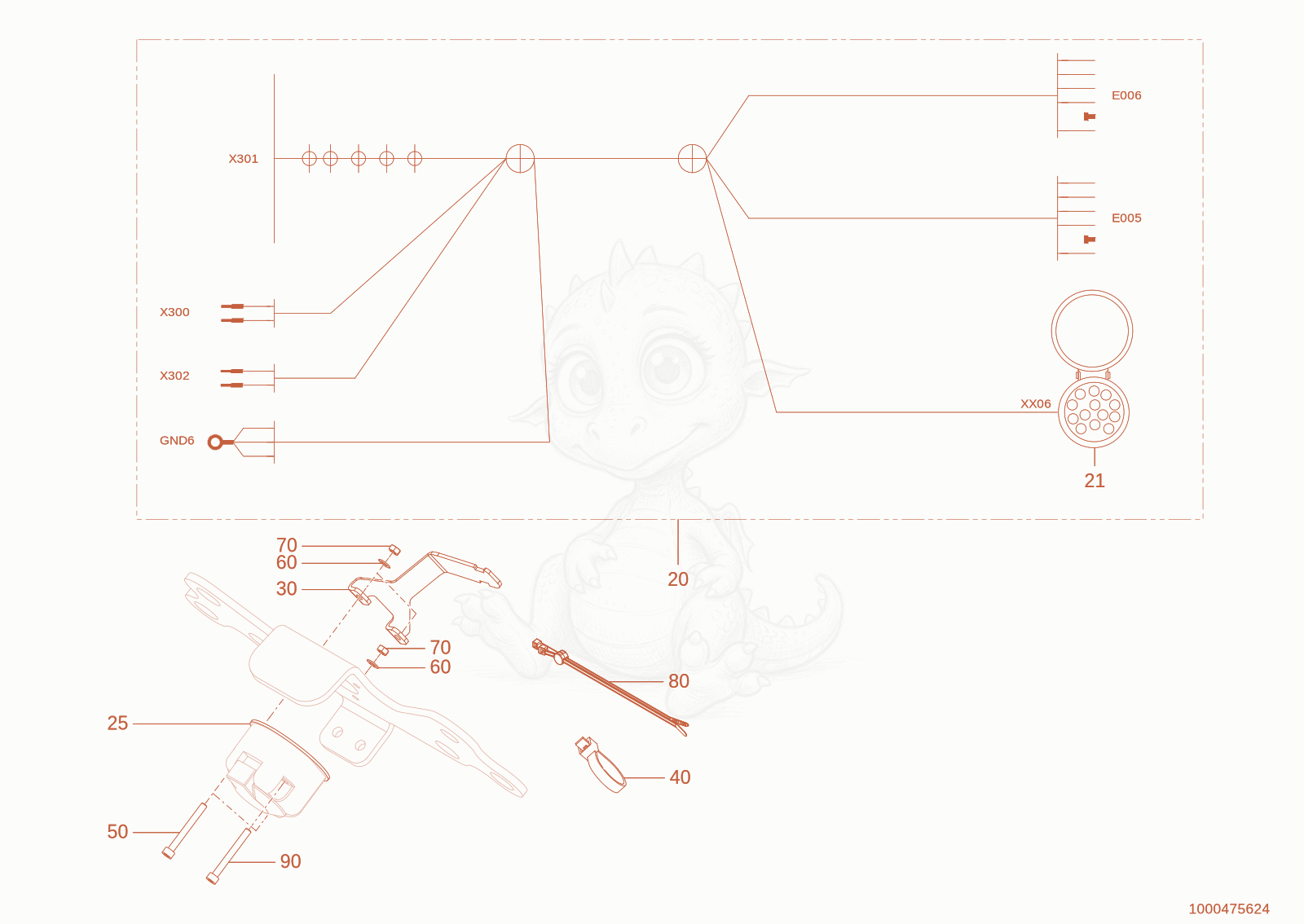

Exploded parts diagram of the wiring harness of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000509465
    $826.03
    Wiring harness Front Carriage LS937 - 1000509465×1
  • 211000105125
    $90.64
    Socket - 1000105125×1
  • 221000206083
    $10.85
    rubber lining - 1000206083×1
  • 301000460506
    $18.32
    bracket - 1000460506×1
  • 401000193759
    $0.36
    cable strap - 1000193759×1
  • 501000082298
    $0.78
    cheese head screw - 1000082298×2
  • 601000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×3
  • 701000049083
    $0.97
    NUT-HEX - 1000049083×3
  • 801000399434Not stocked
    mounting×14
  • 901000082294
    $0.73
    cheese head screw - 1000082294×1
