WL28e

WL28E(A10-01) cooling Diagram

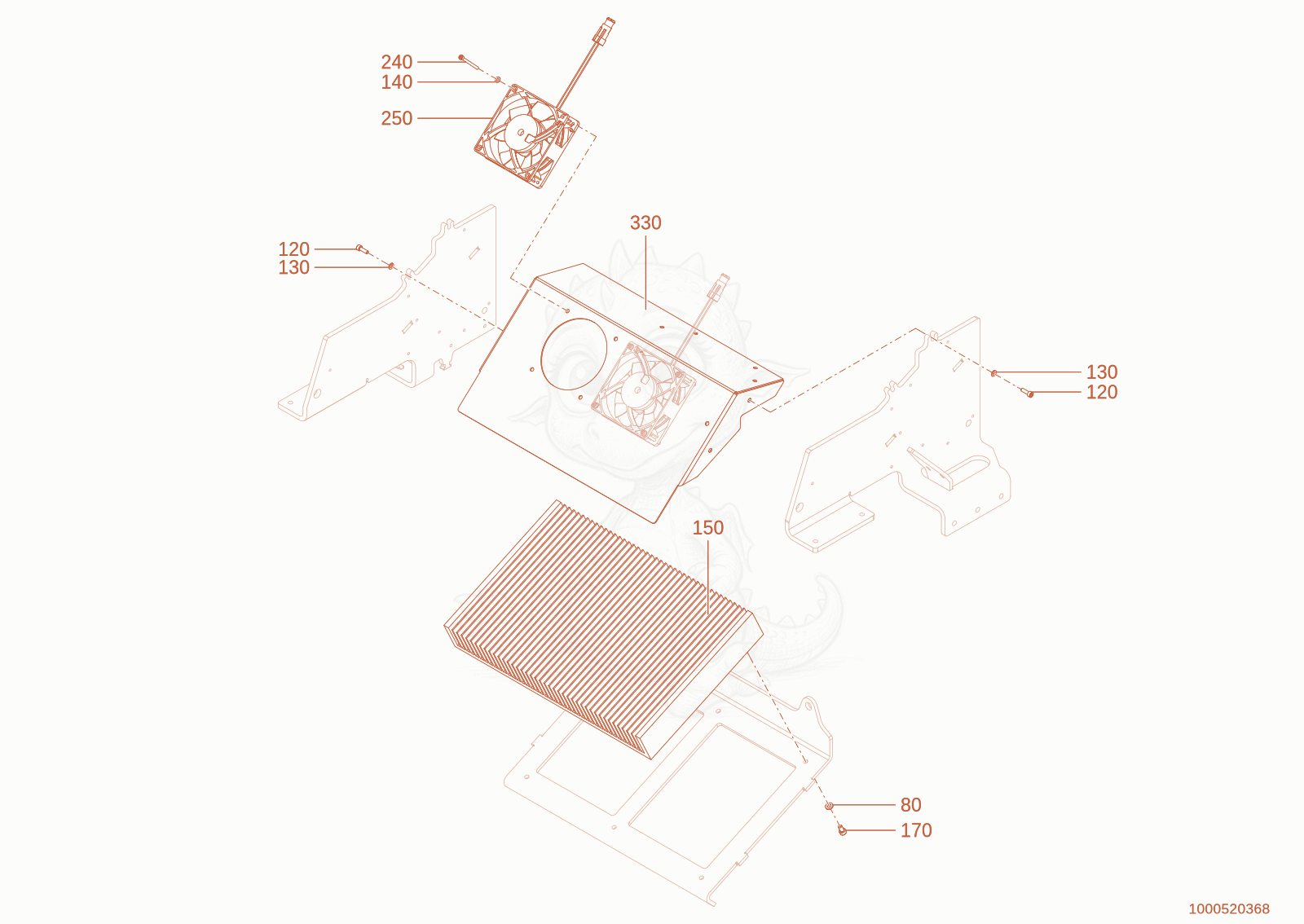

Exploded parts diagram of the cooling of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 801000015430Not stocked
    u-washer×14
  • 1201000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×4
  • 1301000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 1401000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×10
  • 1501000457425Not stocked
    cooler×1
  • 1701000085454
    $0.70
    allen screw M6x12-8.8 A2C-DIN912 - 1000085454×6
  • 2401000223120
    $1.27
    screw - 1000223120×8
  • 2501000472667
    $279.69
    FAN - 1000472667×2
  • 3301000505717Not stocked
    air guide plate×1
