WL28e

WL28E(A10-01) steering cylinder Diagram

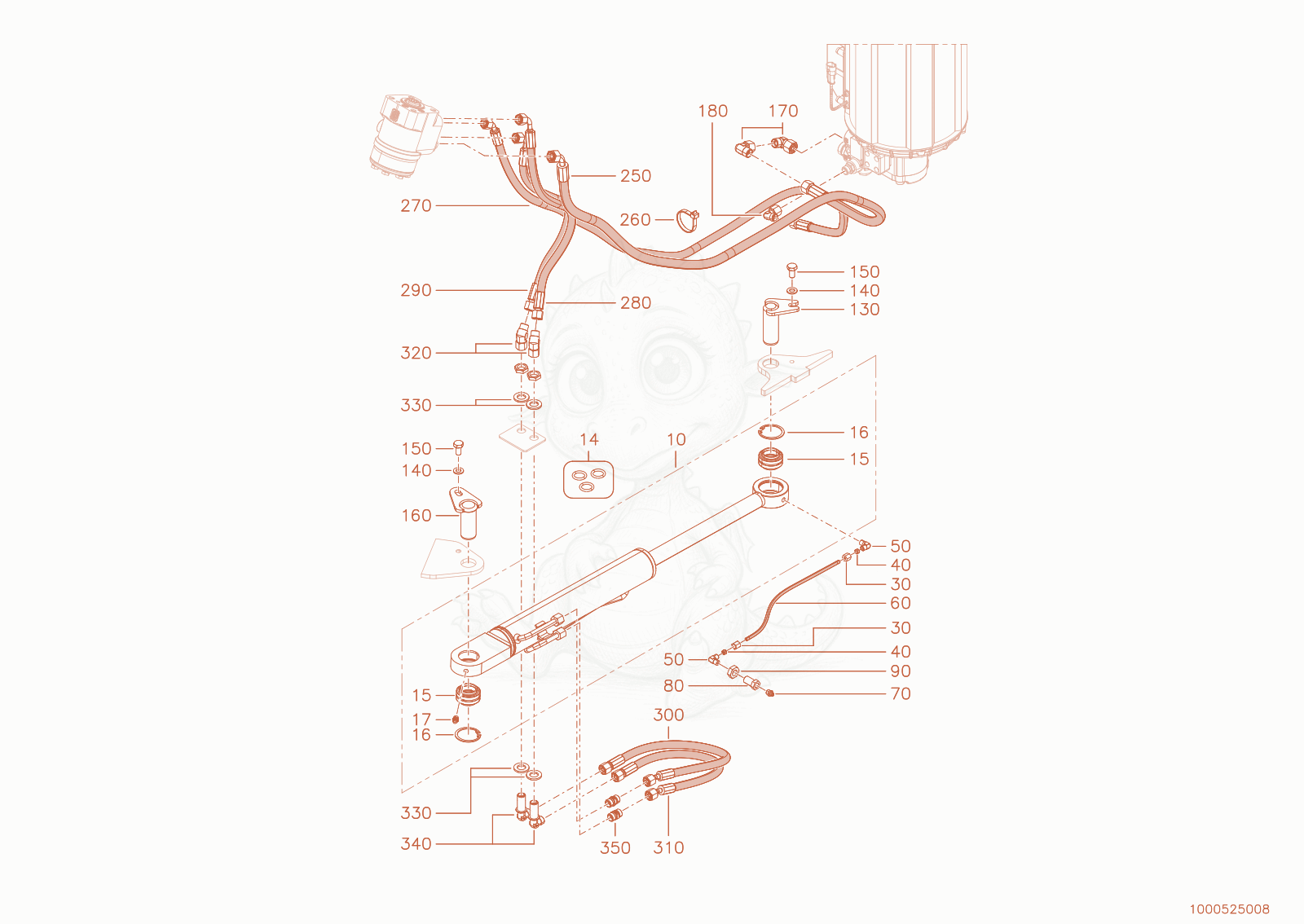

Exploded parts diagram of the steering cylinder of a Wacker Neuson WL28E(A10-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000552994Not stocked
    hydraulic cylinder×1
  • 141000569041Not stocked
    cylinder seal kit×11
  • 151000224827
    $21.54
    Bearing - 1000224827×2
  • 161000020784Not stocked
    lock ring×2
  • 171000222726
    $1.34
    NIPPLE-GREASE - 1000222726×1
  • 301000015536Not stocked
    union nut×2
  • 401000015537
    $0.41
    D6LL - 1000015537×2
  • 501000150282
    $6.86
    WE06LLMA3CX - 1000150282×2
  • 601000247452
    $65.04
    lubrication line - 1000247452×1
  • 701000050469
    $1.68
    grease nipple - 1000050469×1
  • 801000225979
    $8.78
    14X1,5AU��.10X1-10X1KAROSS.EIN. - 1000225979×1
  • 901000222482
    $1.22
    Nut - 1000222482×1
  • 1301000241397
    $35.90
    pin - 1000241397×1
  • 1401000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 1501000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 1601000277250
    $71.47
    pin - 1000277250×1
  • 1701000000573Not stocked
    screw joint×2
  • 1801000015510Not stocked
    screw joint×1
  • 2501000481585Not stocked
    Hose×1
  • 2601000193759
    $0.36
    cable strap - 1000193759×3
  • 2701000501498Not stocked
    Hose×1
  • 2801000501493Not stocked
    Hose×1
  • 2901000501492Not stocked
    Hose×1
  • 3001000433336Not stocked
    Hose×1
  • 3101000491192Not stocked
    Hose×1
  • 3201000168871
    $21.27
    EW 10 L 45° - 1000168871×2
  • 3301000021001
    $0.89
    WASHER - 1000021001×4
  • 3401000085064
    $9.49
    WSV10LOMDA3C - 1000085064×2
  • 3501000020767
    $2.70
    G10LA3CX - 1000020767×2
