WL750

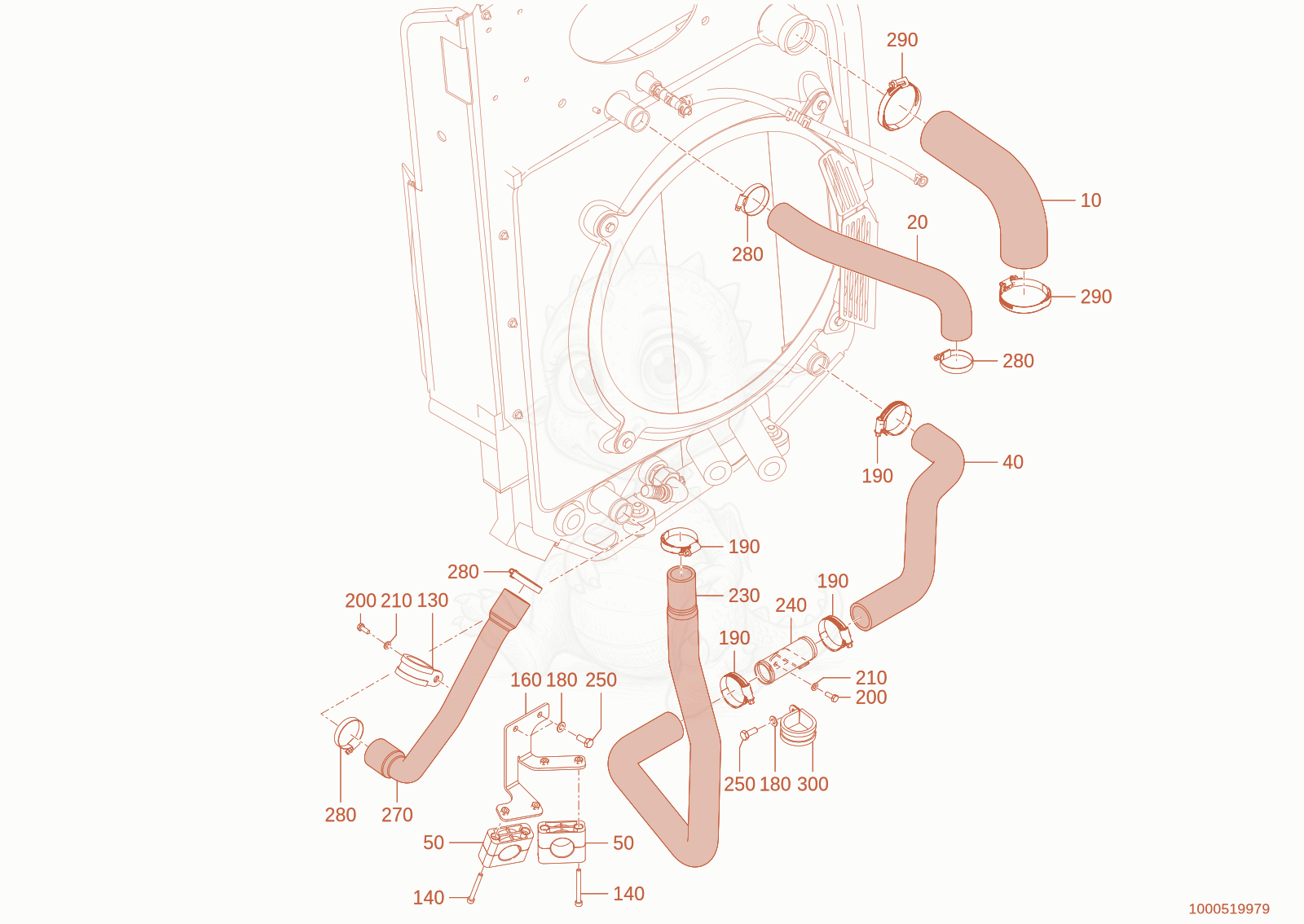

WL750(A04-01) Tubing cooler Diagram
- 101000548796Not stockedair suction hose×1
- 201000481438Not stockedCooling Water Hose×1
- 401000529018Not stockedhose air suction×1
- 501000436973Not stockedclamp×2
- 1301000062589Not stockedpipe clamp×1
- cheese head screw M6x60-8.8 A2C - 1000085461×4
- 1601000503770Not stockedbracket hose×1
- 1801000015431Not stockedwasher×2
- 1901000320339Not stockedhose clamp×4
- HEX SCREW - 1000085382×2
- 2101000015430Not stockedu-washer×2
- 2301000528163Not stockedhose air suction×1
- 2401000502754Not stockedConnecting pipe×1
- 2501000013008Not stockedhex screw×2
- 2701000505558Not stockedCooling Water Hose×1
- Clamp - 1000223542×4
- 2901000320377Not stockedhose clamp×2
- 3001000509440Not stockedpipe clamp×1
- Washer M 6x20x1,25 - 1000222604×1
