WL750

WL750(A04-01) brake line Diagram

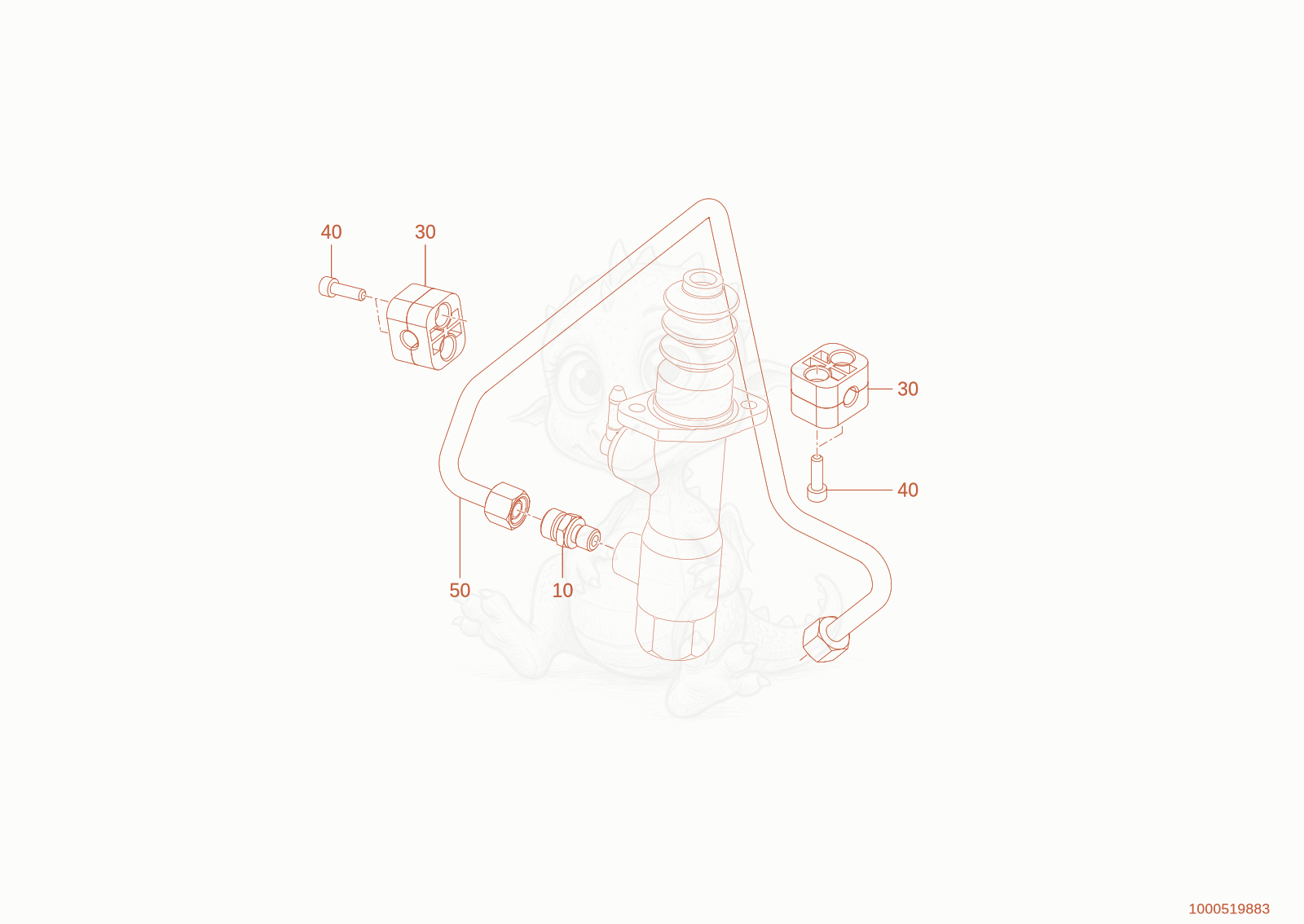

Exploded parts diagram of the brake line of a Wacker Neuson WL750(A04-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000028278Not stocked
    screw joint×1
  • 301000434739Not stocked
    pipe clamp×2
  • 401000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
  • 501000518476Not stocked
    hydraulic pipe×1
