WL750(A04-01) Tubing steering unit Diagram

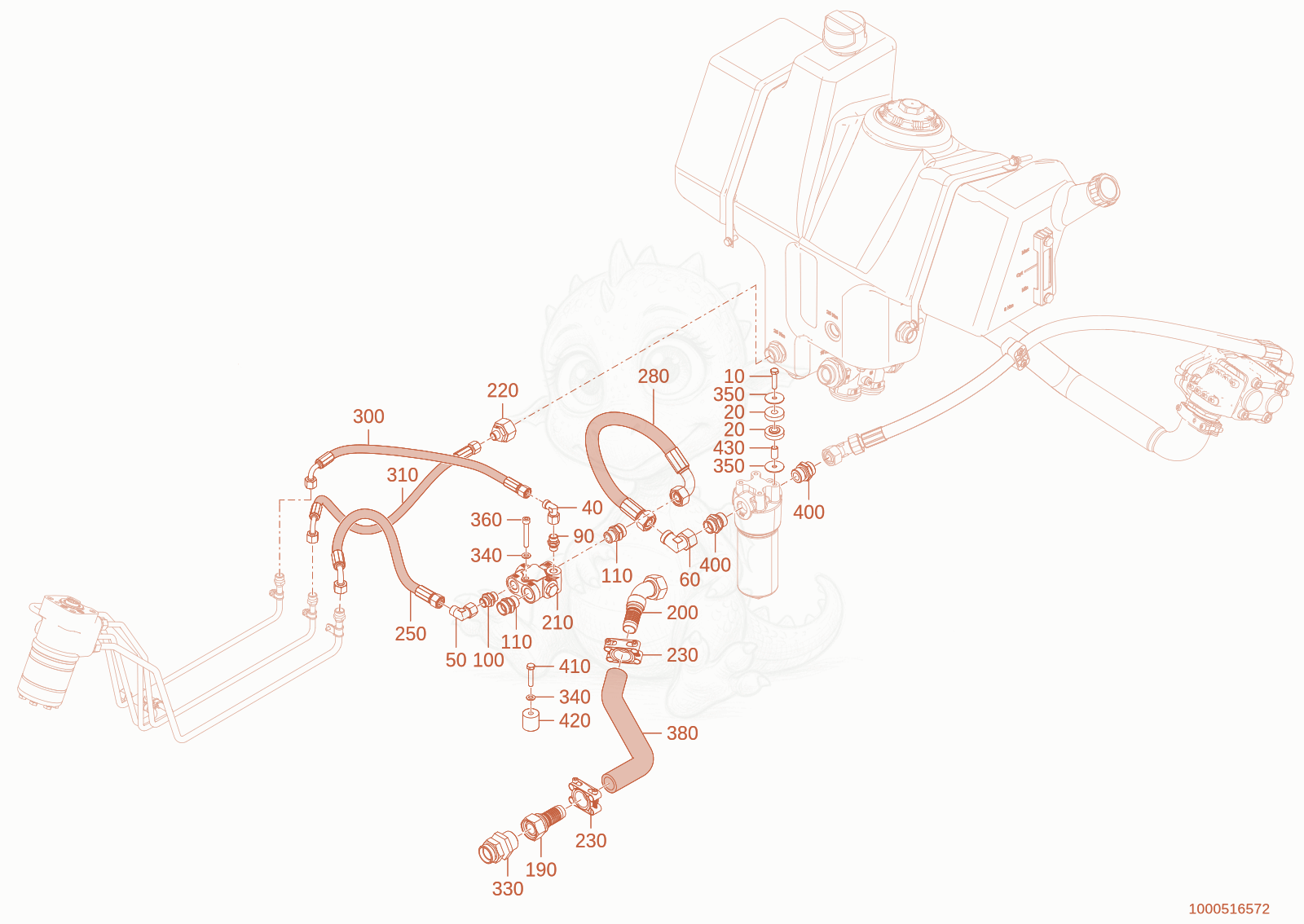

Exploded parts diagram of the Tubing steering unit of a Wacker Neuson WL750(A04-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000085391
    $0.91
    hex screw - 1000085391×4
  • 201000451667Not stocked
    shock absorber element×8
  • 401000015510Not stocked
    screw joint×1
  • 501000000573Not stocked
    screw joint×1
  • 601000015513Not stocked
    screw joint×1
  • 901000085114
    $3.58
    GE10LMEDOMDA3C - 1000085114×1
  • 1001000085051
    $6.62
    GE12LM18X1,5EDOMDA3C - 1000085051×1
  • 1101000085104
    $4.55
    GE18LM22X1,5EDOMDA3C - 1000085104×2
  • 1901000436951Not stocked
    hose nipple×1
  • 2001000279097
    $69.37
    Hose fitting M36x2,0 45�� - 1000279097×1
  • 2101000484635Not stocked
    priority valve×1
  • 2201000181410
    $29.56
    SCREW JOINT - 1000181410×1
  • 2301000501671Not stocked
    clamp×2
  • 2501000455942Not stocked
    Hose×1
  • 2801000503730Not stocked
    Hose×1
  • 3001000218183Not stocked
    Hose×1
  • 3101000453095Not stocked
    Hose×1
  • 3301000085059
    $23.32
    SV28-L - 1000085059×1
  • 3401000015431Not stocked
    washer×1
  • 3501000351385
    $1.42
    Washer - 1000351385×8
  • 3601000085464
    $1.53
    cheese head screw - 1000085464×1
  • 3801000511437Not stocked
    preshaped tube×1
  • 4001000015565Not stocked
    screw joint×2
  • 4101000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 4201000438519Not stocked
    distance piece×1
  • 4301000460742
    $5.63
    Sleeve - 1000460742×4
