WL750

WL750(A04-01) box Diagram

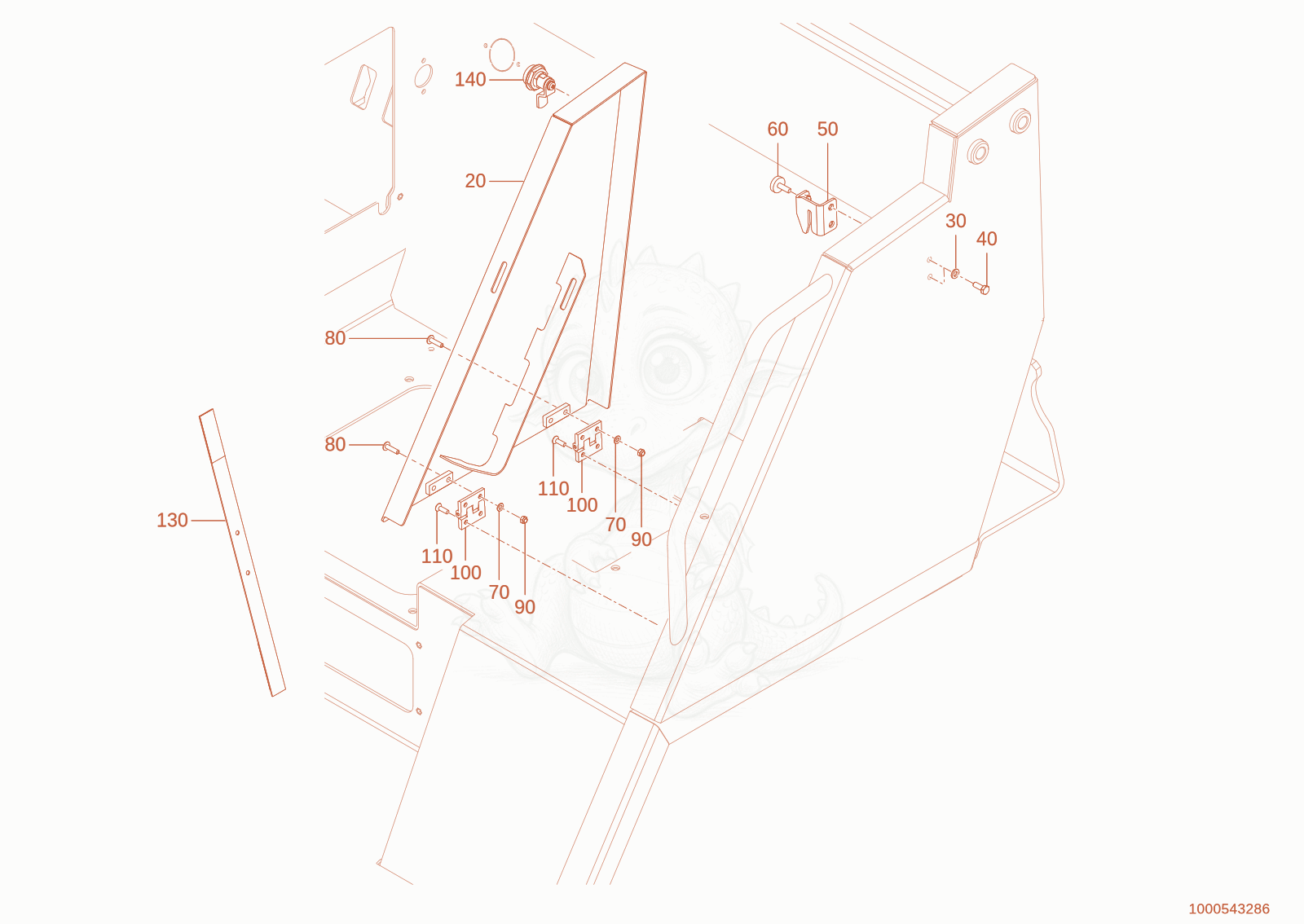

Exploded parts diagram of the box of a Wacker Neuson WL750(A04-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000520922Not stocked
    cover×1
  • 201000527242Not stocked
    cover×1
  • 301000015430Not stocked
    u-washer×2
  • 401000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×2
  • 501000520921Not stocked
    Locking combination box×1
  • 601000213413
    $41.61
    RUBBER BUFFER - 1000213413×1
  • 701000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 801000401879Not stocked
    flat head screw×4
  • 901000085587
    $0.03
    HEXAGON NUT - 1000085587×4
  • 1001000527003Not stocked
    hinge×2
  • 1101000015358Not stocked
    countersunk screw×4
  • 1301000213555
    $82.27
    Bracket - 1000213555×1
  • 1401000001853
    $43.12
    LOCK - 1000001853×1
