WL750(A04-01) quickhitch plate Diagram

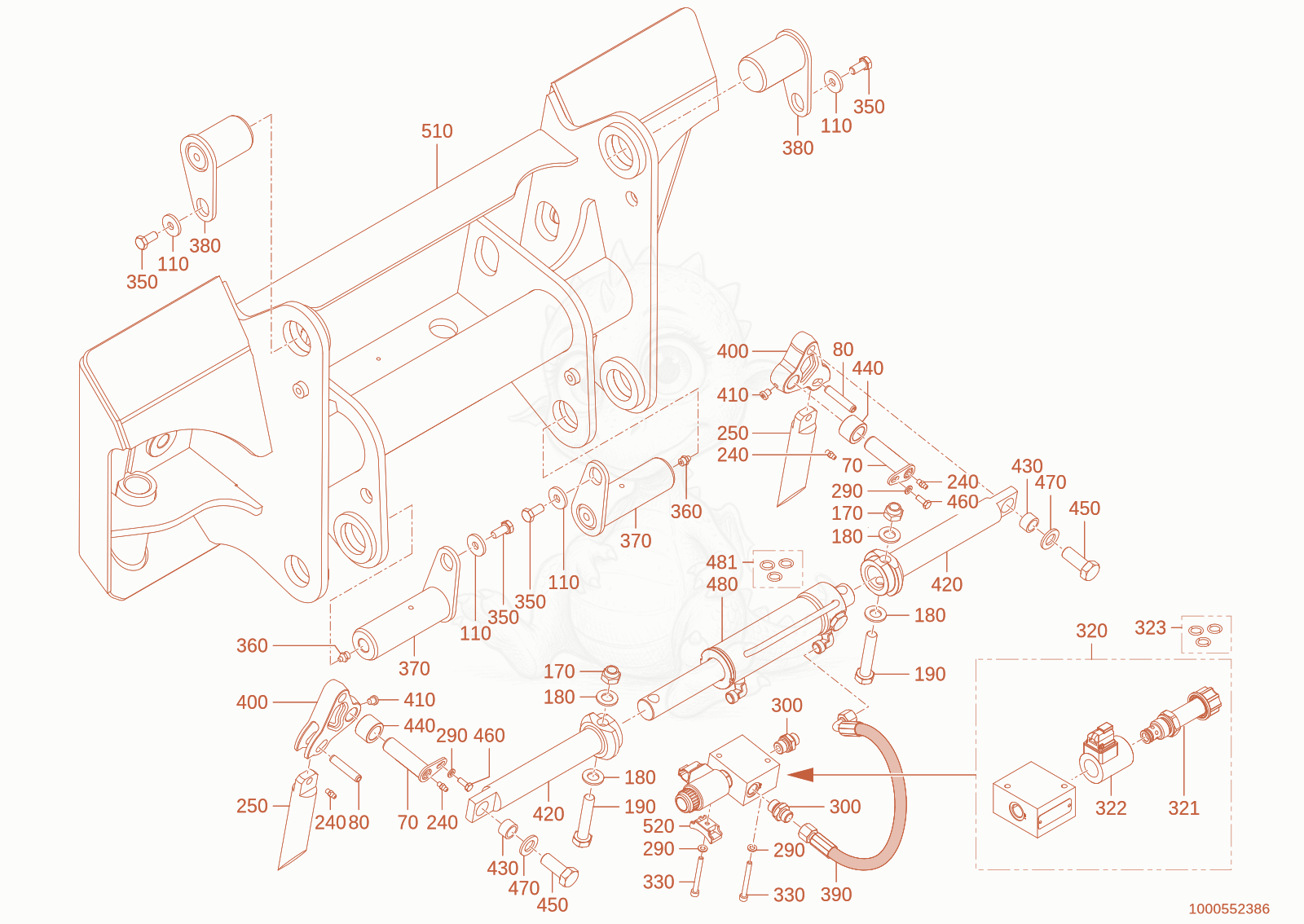

Exploded parts diagram of the quickhitch plate of a Wacker Neuson WL750(A04-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 701000372601
    $336.62
    Bolt - 1000372601×2
  • 801000118414
    $1.76
    cotter pin - 1000118414×2
  • 1101000222577
    $1.45
    Washer - 1000222577×4
  • 1701000049060Not stocked
    hexagon nut×2
  • 1801000019126Not stocked
    u-washer×4
  • 1901000047404Not stocked
    hex screw×2
  • 2401000222726
    $1.34
    NIPPLE-GREASE - 1000222726×4
  • 2501000224822
    $56.64
    Bolt - 1000224822×2
  • 2901000015430Not stocked
    u-washer×4
  • 3001000015491Not stocked
    screw joint×2
  • 3201000335644
    $216.58
    Valve - 1000335644×1
  • 3211000265570
    $198.75
    drive valve - 1000265570×1
  • 3221000346390
    $64.57
    Solenoid - 1000346390×1
  • 3231000367370Not stocked
    seal kit valve cartridge×1
  • 3301000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 3501000223198
    $1.27
    SCREW - 1000223198×4
  • 3601000050469
    $1.68
    grease nipple - 1000050469×2
  • 3701000539084Not stocked
    pin×2
  • 3801000550823Not stocked
    pin×2
  • 3901000218143Not stocked
    Hose×1
  • 4001000546207Not stocked
    LEVER×2
  • 4101000241240
    $8.97
    LOCK SCREW - 1000241240×2
  • 4201000381586Not stocked
    locking pin×2
  • 4301000262757
    $39.79
    Sleeve - 1000262757×2
  • 4401000372610
    $12.27
    Sleeve - 1000372610×2
  • 4501000109786
    $3.41
    hex screw - 1000109786×2
  • 4601000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×2
  • 4701000021001
    $0.89
    WASHER - 1000021001×2
  • 4801000354340
    $600.80
    Cylinder - 1000354340×1
  • 4811000468985Not stocked
    cylinder seal kit×1
  • 5101000550456Not stocked
    adapter frame×1
  • 5201000282739
    $2.12
    sockets - 1000282739×1
