WL750

WL750(A04-01) components wiring harness Diagram

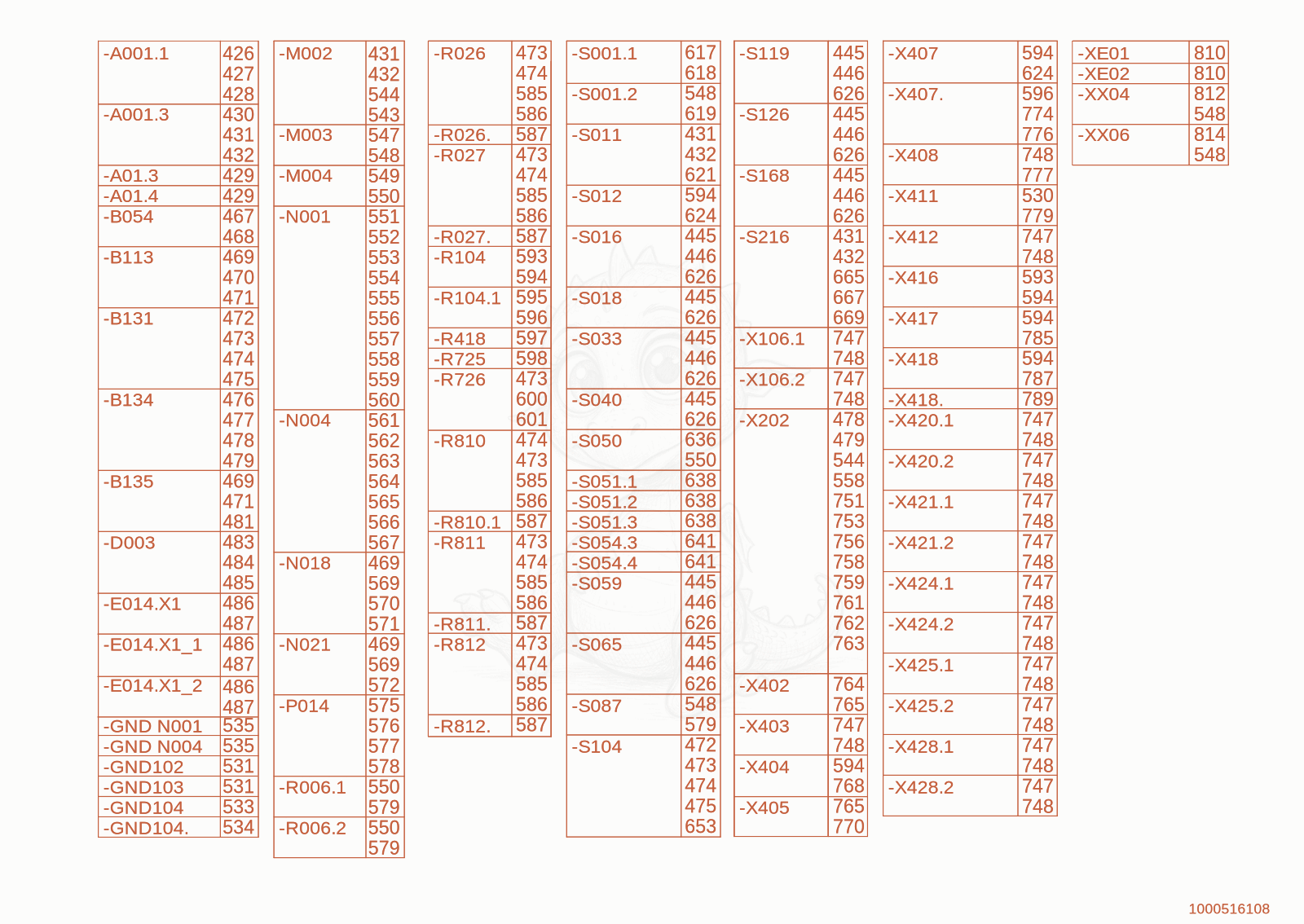

Exploded parts diagram of the components wiring harness of a Wacker Neuson WL750(A04-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4261000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • 4271000027179Not stocked
    timer contact×1
  • 4281000362527Not stocked
    bushing contact×1
  • 4291000385309Not stocked
    fuse holder×1
  • 4301000311610Not stocked
    bushing housing×1
  • 4311000051990Not stocked
    bushing contact×1
  • 4321000052672Not stocked
    seal×1
  • 4671000308534Not stocked
    bushing housing×1
  • 4681000389900Not stocked
    plug bushing×1
  • 4691000148274
    $1.84
    bushing contact - 1000148274×1
  • 4701000238088
    $25.70
    bushing housing - 1000238088×1
  • 4711000183227
    $2.77
    LOCKING PIN - 1000183227×1
  • 4721000085032
    $1.15
    plug locking - 1000085032×1
  • 4731000359612Not stocked
    plug connection×1
  • 4741000030446Not stocked
    plug×1
  • 4751000027431Not stocked
    bushing housing×1
  • 4761000262118
    $17.60
    bushing housing - 1000262118×1
  • 4771000104732
    $3.06
    CONTACT - 1000104732×1
  • 4781000104740
    $1.41
    lock plug - 1000104740×1
  • 4791000104738
    $1.51
    seal - 1000104738×1
  • 4811000183226
    $9.17
    bushing housing - 1000183226×1
  • 4831000437205
    $4.36
    plug - 1000437205×1
  • 4841000395384Not stocked
    blind plug×1
  • 4851000445655
    $1.00
    bushing contact - 1000445655×1
  • 4861000486714Not stocked
    plug housing×1
  • 4871000486706Not stocked
    plug×1
  • 5331000107757
    $2.77
    CABLE LUG - 1000107757×1
  • 5341000107756
    $30.59
    CABLE LUG - 1000107756×1
  • 5351000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 5431000162258
    $3.10
    bushing housing - 1000162258×1
  • 5441000128773
    $0.32
    Plug - 1000128773×1
  • 5471000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • 5481000095370
    $0.66
    plug sleeve - 1000095370×1
  • 5501000095371Not stocked
    plug sleeve×1
  • 5511000338907Not stocked
    Tube×1
  • 5521000161939
    $1.12
    Tube - 1000161939×1
  • 5531000161940
    $6.45
    Tube - 1000161940×1
  • 5541000266556
    $2.77
    Plug - 1000266556×1
  • 5551000266539
    $8.28
    PLATE - 1000266539×1
  • 5561000260152
    $5.51
    locking - 1000260152×1
  • 5571000478117
    $2.21
    HOUSING-PLUGH - 1000478117×1
  • 5581000104739
    $16.29
    seal - 1000104739×1
  • 5591000268325
    $113.18
    TUBE - 1000268325×1
  • 5601000407738
    $9.32
    cap completed - 1000407738×1
  • 5611000306993
    $104.58
    PLUG - 1000306993×1
  • 5621000306978Not stocked
    blind plug×1
  • 5641000371244Not stocked
    bushing contact×1
  • 5651000306994
    $2.34
    bushing - 1000306994×1
  • 5661000306992
    $0.75
    bushing - 1000306992×1
  • 5671000371243
    $21.46
    cap - 1000371243×1
  • 5691000161431
    $0.66
    Plug - 1000161431×1
  • 5701000254182
    $29.32
    bushing housing - 1000254182×1
  • 5711000148272
    $2.17
    Pin housing - 1000148272×1
  • 5721000148271
    $30.88
    Pin housing - 1000148271×1
  • 5751000306921Not stocked
    bushing housing×1
  • 5761000358935Not stocked
    pin contact×1
  • 5771000358936Not stocked
    pin contact×1
  • 5781000163264
    $6.38
    Plug - 1000163264×1
  • 5791000019583Not stocked
    plug sleeve housing×1
  • 5851000027429Not stocked
    housing×1
  • 5861000278858
    $5.04
    Key - 1000278858×1
  • 5871000278564
    $27.10
    Resistor - 1000278564×1
  • 5931000493230Not stocked
    bushing housing×1
  • 5941000107779
    $0.39
    BUSHING CONTACT - 1000107779×1
  • 5951000493229Not stocked
    pin housing×1
  • 5961000107778
    $1.13
    Pin contact - 1000107778×1
  • 5971000336503
    $1.12
    block diode - 1000336503×1
  • 5981000312303
    $0.32
    resistor - 1000312303×1
  • 6001000104286
    $11.39
    bushing housing - 1000104286×1
  • 6011000444641Not stocked
    locking×1
  • 6171000027368Not stocked
    central plug×1
  • 6181000107750
    $5.41
    plug sleeve - 1000107750×1
  • 6191000027386
    $6.47
    PLUG - 1000027386×1
  • 6211000258052
    $3.23
    plug bushing - 1000258052×1
  • 6241000334439Not stocked
    bushing housing×1
  • 6261000103949
    $5.74
    bushing housing - 1000103949×1
  • 6351000432365Not stocked
    timer contact×1
  • 6361000086664
    $4.92
    plug sleeve housing - 1000086664×1
  • 6381000411086Not stocked
    plug sleeve×1
  • 6411000229869
    $1.41
    PLUG SLEEVE - 1000229869×1
  • 6531000309284Not stocked
    bushing contact×1
  • 6651000110449
    $2.46
    plug bushing - 1000110449×1
  • 6671000443428
    $0.99
    Buchsenkontakt - 1000443428×1
  • 6691000392349Not stocked
    seal×1
  • 7471000341448Not stocked
    bushing housing×1
  • 7481000341449Not stocked
    bushing contact×1
  • 7511000442912
    $1.37
    pin contact - 1000442912×1
  • 7531000312051
    $1.08
    Tube - 1000312051×1
  • 7561000170628
    $2.97
    Pin contact - 1000170628×1
  • 7581000338911Not stocked
    seal×1
  • 7591000260162
    $0.42
    seal - 1000260162×1
  • 7611000303405
    $44.85
    plug housing - 1000303405×1
  • 7621000370455
    $7.58
    locking - 1000370455×1
  • 7631000446166
    $109.89
    Adapter - 1000446166×1
  • 7641000492908Not stocked
    bushing housing×1
  • 7651000341450Not stocked
    pin contact×1
  • 7681000492912Not stocked
    bushing housing×1
  • 7701000492917Not stocked
    pin housing×1
  • 7741000105120
    $2.83
    Pinhousing 1000105120×1
  • 7761000370816Not stocked
    blind plug×1
  • 7771000492909Not stocked
    bushing housing×1
  • 7791000236973
    $10.73
    bushing housing - 1000236973×1
  • 7851000492913Not stocked
    bushing housing×1
  • 7871000511298Not stocked
    bushing housing×1
  • 7891000511295Not stocked
    pin housing×1
  • 8101000255232
    $14.83
    CONTACT-HOUSING - 1000255232×1
  • 8121000095336Not stocked
    plug sleeve housing×1
  • 8141000095323
    $3.39
    plug sleeve housing - 1000095323×1
