WN Excavator 14504

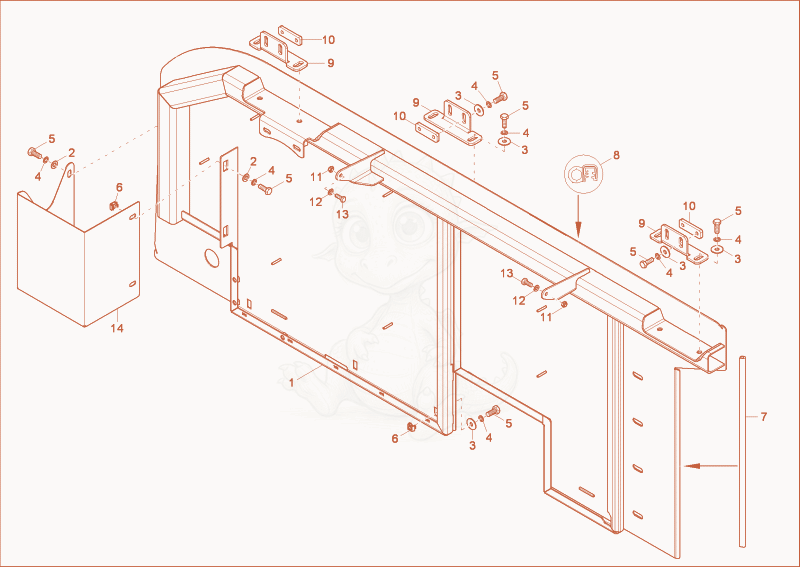

14504 seperating plate Diagram

Exploded parts diagram of the seperating plate of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000176888Not stocked
    seperating plate×1
  • 21000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 31000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×16
  • 41000015438Not stocked
    lock washer×20
  • 51000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×20
  • 61000094958
    $1.08
    Korgmutter M10 1,8-3,2 - 1000094958×6
  • 71000098163
    $5.21
    edge protection - 1000098163×0.58
  • 81000098198
    $19.56
    RUBBER PROFILE - 1000098198×2.55
  • 91000181375
    $56.40
    hinge angle - 1000181375×3
  • 101000187994
    $36.72
    thread plate - 1000187994×3
  • 111000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 121000015431Not stocked
    washer×2
  • 131000015343Not stocked
    hex screw×2
  • 141000181254Not stocked
    tools board×1
