WN Excavator 14504

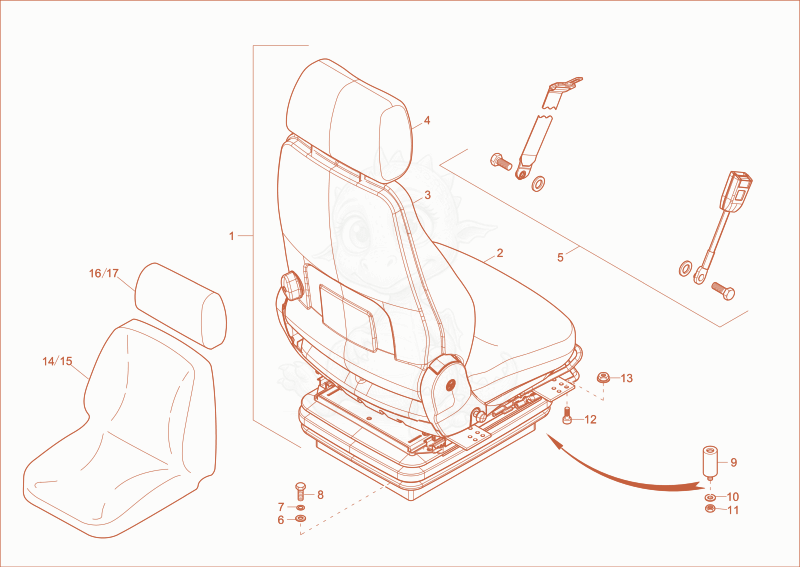

14504 drivers seat Diagram

Exploded parts diagram of the drivers seat of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000303004
    $1,090.22
    Driversseat 1000303004×1
  • 21000310998Not stocked
    seat upholstery×1
  • 31000311051
    $312.57
    Cushion - 1000311051×1
  • 41000160843
    $219.45
    NLA HEADREST - 1000160843×1
  • 51000128034
    $189.71
    Lap belt - 1000128034×1
  • 61000015431Not stocked
    washer×4
  • 71000015437Not stocked
    lock washer×4
  • 81000015343Not stocked
    hex screw×4
  • 91000074044
    $8.14
    seatlift limiter - 1000074044×1
  • 101000015438Not stocked
    lock washer×1
  • 111000082587
    $0.70
    HEXAGON NUT - 1000082587×1
  • 121000022386Not stocked
    cheese head screw×8
  • 131000082590
    $0.78
    lock nut - 1000082590×8
  • 141000325704Not stocked
    slip-cover×1
  • 151000325705Not stocked
    slip-cover×1
  • 161000325706Not stocked
    slip-cover×1
  • 171000325707Not stocked
    slip-cover×1
