WN Excavator 14504

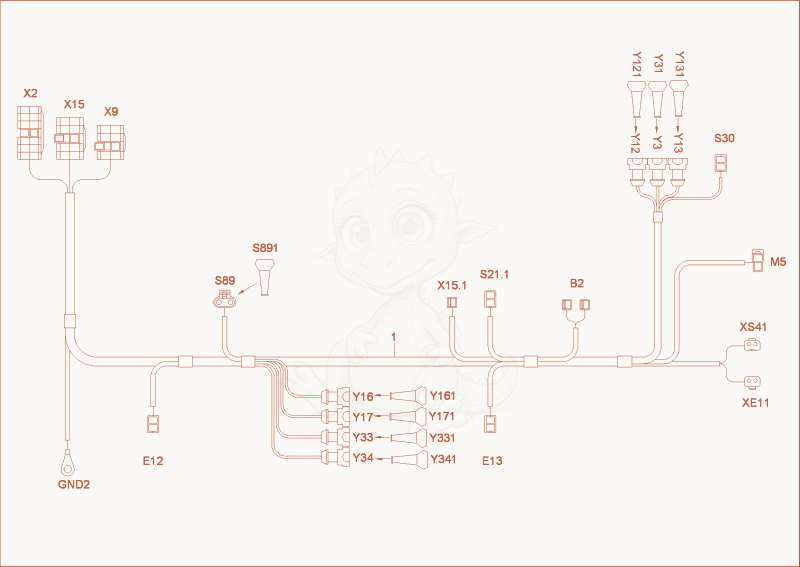

14504 harness wiring chassis Diagram

Exploded parts diagram of the harness wiring chassis of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000188369Not stocked
    harness wiring chassis×1
  • B21000027435Not stocked
    insulating sleeve×2
  • E121000095336Not stocked
    plug sleeve housing×1
  • E131000095336Not stocked
    plug sleeve housing×1
  • GND1000107754
    $2.77
    cable lug - 1000107754×1
  • M51000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • S2111000095336Not stocked
    plug sleeve housing×1
  • S301000095336Not stocked
    plug sleeve housing×1
  • S891000110449
    $2.46
    plug bushing - 1000110449×1
  • S8911000027466Not stocked
    protecting cap×1
  • X151000095321
    $5.84
    bushing housing - 1000095321×1
  • X1511000027435Not stocked
    insulating sleeve×1
  • X21000100618
    $7.48
    Pin housing - 1000100618×1
  • X91000094922
    $2.70
    plug sleeve housing - 1000094922×1
  • XE111000081808
    $16.43
    pin housing - 1000081808×1
  • XS411000081820
    $5.74
    pin housing - 1000081820×1
  • Y121000027332
    $3.80
    housing - 1000027332×1
  • Y1211000027466Not stocked
    protecting cap×1
  • Y131000027332
    $3.80
    housing - 1000027332×1
  • Y1311000027466Not stocked
    protecting cap×1
  • Y161000027332
    $3.80
    housing - 1000027332×1
  • Y1611000027466Not stocked
    protecting cap×1
  • Y171000027332
    $3.80
    housing - 1000027332×1
  • Y1711000027466Not stocked
    protecting cap×1
  • Y31000027332
    $3.80
    housing - 1000027332×1
  • Y311000027466Not stocked
    protecting cap×1
  • Y331000027332
    $3.80
    housing - 1000027332×1
  • Y3311000027466Not stocked
    protecting cap×1
  • Y341000027332
    $3.80
    housing - 1000027332×1
  • Y3411000027466Not stocked
    protecting cap×1
