14504 LIFTING BOOM 2 Diagram

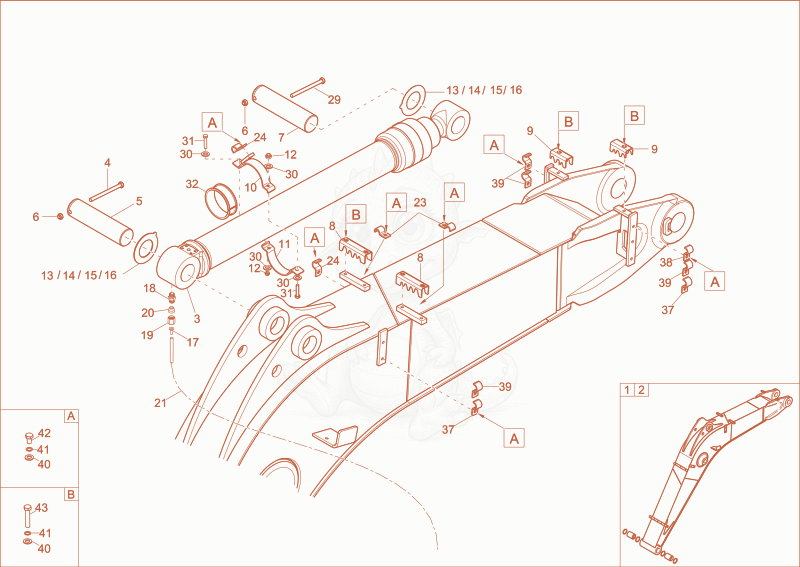

Exploded parts diagram of the LIFTING BOOM 2 of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000254902Not stocked
    PRE-ASSEMBLED BOOM×1
  • 21000254903Not stocked
    PRE-ASSEMBLED BOOM×1
  • 31000176891Not stocked
    dipper arm cylinder×1
  • 41000082419
    $4.19
    HEX SCREW - 1000082419×1
  • 51000248084
    $256.38
    Pin 1000248084×1
  • 61000082585
    $0.93
    HEXAGON NUT - 1000082585×2
  • 71000248083
    $225.60
    Pin 1000248083×1
  • 81000246726Not stocked
    pipe clamp×2
  • 91000246844Not stocked
    pipe clamp×2
  • 101000356698
    $17.09
    clamp - 1000356698×1
  • 111000356700
    $11.08
    clamp - 1000356700×1
  • 121000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 131000182810
    $7.16
    SHIM - 1000182810×1
  • 141000182809
    $4.94
    SHIM - 1000182809×1
  • 151000182815
    $5.14
    SHIM - 1000182815×1
  • 161000182812
    $28.07
    SHIM - 1000182812×1
  • 171000152581
    $0.62
    plug sleeve - 1000152581×2
  • 181000083092
    $1.73
    GE06LLM10X1A3CX - 1000083092×2
  • 191000015536Not stocked
    union nut×2
  • 201000015537
    $0.41
    D6LL - 1000015537×2
  • 211000304322
    $23.53
    lubrication line - 1000304322×2.5
  • 221000124385
    $11.03
    pipe clamp - 1000124385×2
  • 231000015634Not stocked
    pipe clamp×3
  • 241000015633Not stocked
    pipe clamp×6
  • 251000049219Not stocked
    washer×17
  • 261000082609
    $0.73
    lock washer - 1000082609×17
  • 271000085417
    $1.06
    hex screw - 1000085417×11
  • 281000085421
    $1.08
    hex screw - 1000085421×6
  • 291000082356
    $3.82
    HEX SCREW - 1000082356×1
  • 301000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 311000085414
    $0.98
    hex screw - 1000085414×2
  • 321000356499Not stocked
    rubber×0.4
