WN Excavator 14504

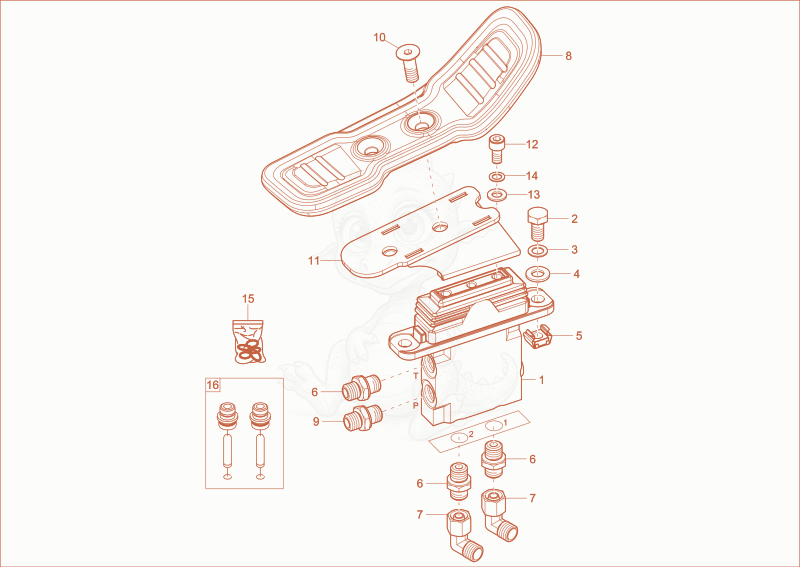

14504 PILOT OPPERATED CHECK VALVES Diagram

Exploded parts diagram of the PILOT OPPERATED CHECK VALVES of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000248843
    $682.40
    pilot valve - 1000248843×1
  • 21000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 31000015438Not stocked
    lock washer×2
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 51000259184Not stocked
    cage nut×2
  • 61000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×3
  • 71000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 81000248662
    $321.37
    pedal - 1000248662×1
  • 91000471316Not stocked
    screw joint×1
  • 101000015397Not stocked
    countersunk screw×2
  • 111000248871
    $33.68
    fasten plate - 1000248871×1
  • 121000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×2
  • 131000015431Not stocked
    washer×2
  • 141000015437Not stocked
    lock washer×2
  • 151000063806Not stocked
    seal kit single valve×1
  • 161000063807
    $513.60
    SEAL KIT PUSH ROD - 1000063807×1
