14504 LIFTING BOOM 1 Diagram

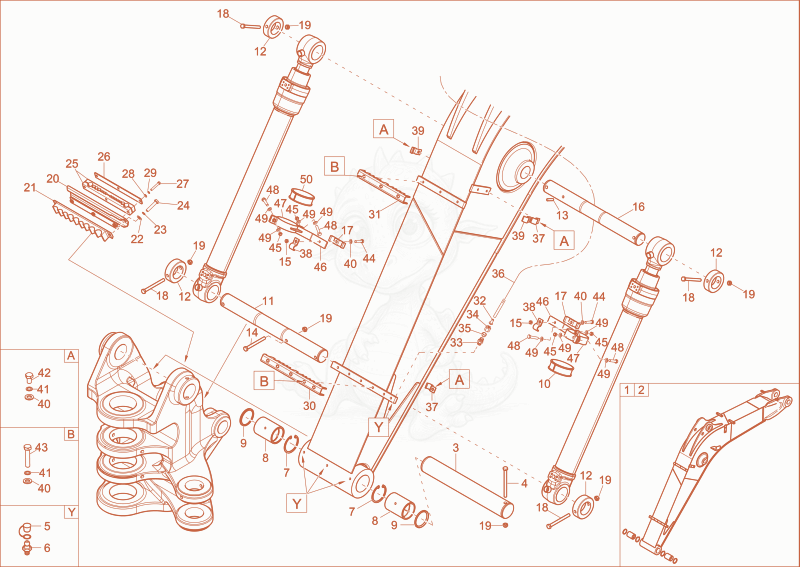

Exploded parts diagram of the LIFTING BOOM 1 of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000319085Not stocked
    PRE-ASSEMBLED BOOM×1
  • 21000319089Not stocked
    PRE-ASSEMBLED BOOM×1
  • 31000252710
    $547.56
    PIN - 1000252710×1
  • HEX SCREW - 1000082419×1
  • 51000015480Not stocked
    cap grease nipple×4
  • grease nipple M10x1 - 1000082805×4
  • LOCK RING - 1000085642×2
  • 81000252709
    $149.64
    Steelbushing 1000252709×2
  • 91000176731
    $45.07
    pin gasket - 1000176731×2
  • 101000356499Not stocked
    rubber×0.4
  • 111000176707
    $403.41
    Pin 1000176707×1
  • 121000176728
    $110.76
    Ring 1000176728×4
  • 131000110018
    $11.61
    cotter pin - 1000110018×1
  • 141000082360
    $2.01
    HEX SCREW - 1000082360×1
  • 151000020127Not stocked
    hexagon nut×2
  • 161000176709
    $404.22
    Pin 1000176709×1
  • 171000075818
    $20.04
    PIPE CLAMP - 1000075818×2
  • 181000082356
    $3.82
    HEX SCREW - 1000082356×4
  • 191000082585
    $0.93
    HEXAGON NUT - 1000082585×5
  • 201000245773Not stocked
    bracket hose×1
  • 211000246843
    $117.07
    clamp bar - 1000246843×1
  • 221000049219Not stocked
    washer×2
  • 231000082609
    $0.73
    lock washer - 1000082609×2
  • 241000085370
    $1.35
    hex screw - 1000085370×2
  • 251000246721Not stocked
    hose clamp×2
  • 261000246722Not stocked
    cover plate×1
  • 271000015344Not stocked
    hex screw×3
  • 281000015431Not stocked
    washer×3
  • 291000015437Not stocked
    lock washer×3
  • 301000246725Not stocked
    pipe clamp×1
  • 311000246724Not stocked
    pipe clamp×1
  • 321000152581
    $0.62
    plug sleeve - 1000152581×2
  • 331000083092
    $1.73
    GE06LLM10X1A3CX - 1000083092×2
  • 341000015536Not stocked
    union nut×2
  • 351000015537
    $0.41
    D6LL - 1000015537×2
  • 361000304322
    $23.53
    lubrication line - 1000304322×2.5
  • 371000124385
    $11.03
    pipe clamp - 1000124385×2
  • 381000015634Not stocked
    pipe clamp×2
  • 391000015633Not stocked
    pipe clamp×2
  • 401000049219Not stocked
    washer×14
  • 411000082609
    $0.73
    lock washer - 1000082609×12
  • 421000085417
    $1.06
    hex screw - 1000085417×4
  • 431000085421
    $1.08
    hex screw - 1000085421×8
  • 441000085370
    $1.35
    hex screw - 1000085370×2
  • 451000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 461000350252
    $114.51
    clamp - 1000350252×2
  • 471000356096
    $14.36
    clamp - 1000356096×2
  • 481000085414
    $0.98
    hex screw - 1000085414×4
  • 491000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 501000356499Not stocked
    rubber×0.4
