WN Excavator 14504

14504 HYDRAULIC PUMP DRIVE Diagram

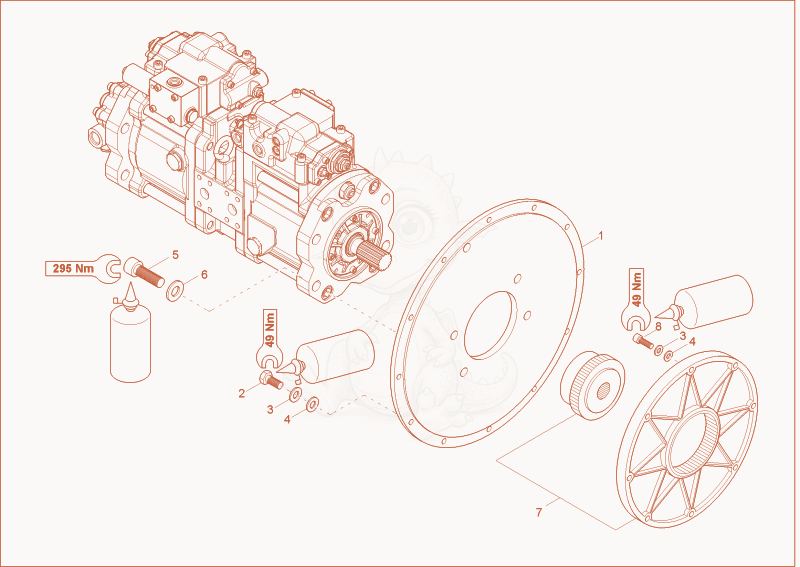

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000181258Not stocked
    pump carrier×1
  • Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×12
  • 31000015438Not stocked
    lock washer×20
  • washer 10,5 A2C DIN125 - 1000015432×20
  • 51000015383Not stocked
    cheese head screw×4
  • washer - 1000294844×4
  • 71000104812
    $353.14
    Coupling 1000104812×1
  • 81000048178Not stocked
    cheese head screw×8
