DT25

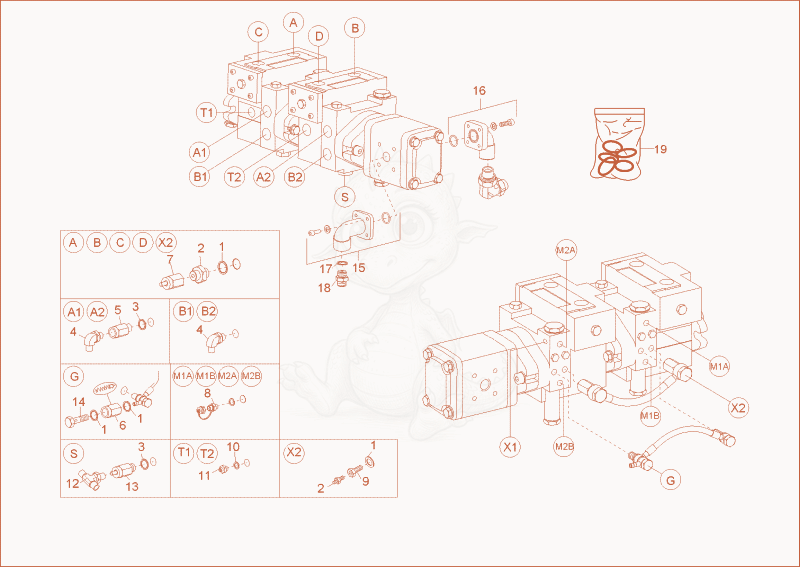

DT25 PUMP UNIT Diagram

Exploded parts diagram of the PUMP UNIT of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000083485
    $2.64
    copper ring - 1000083485×7
  • 21000270696
    $10.15
    ADAPTER - 1000270696×5
  • 31000282014Not stocked
    seal×3
  • 41000270655
    $87.37
    VERSCHRAUBUNG EWE 3/4" - 1000270655×4
  • 51000282020Not stocked
    screw joint×2
  • 61000282023Not stocked
    valve×1
  • 71000271800Not stocked
    extension×4
  • 81000270660
    $61.63
    MINIMESS POINT - 1000270660×4
  • 91000271796
    $10.91
    extension - 1000271796×1
  • 101000271906
    $4.95
    seal plate - 1000271906×2
  • 111000270695
    $13.90
    ADAPTER - 1000270695×2
  • 121000282024Not stocked
    screw joint×1
  • 131000270694
    $17.11
    DOUBLE NIPPLE - 1000270694×1
  • 141000270650
    $11.63
    banjo bolt - 1000270650×1
  • 151000271794Not stocked
    flange×1
  • 161000282025Not stocked
    connection×1
  • 171000015666Not stocked
    seal ring×1
  • 181000271824Not stocked
    adapter×1
  • 191000282253Not stocked
    seal kit hydraulic pump×1
