DT25

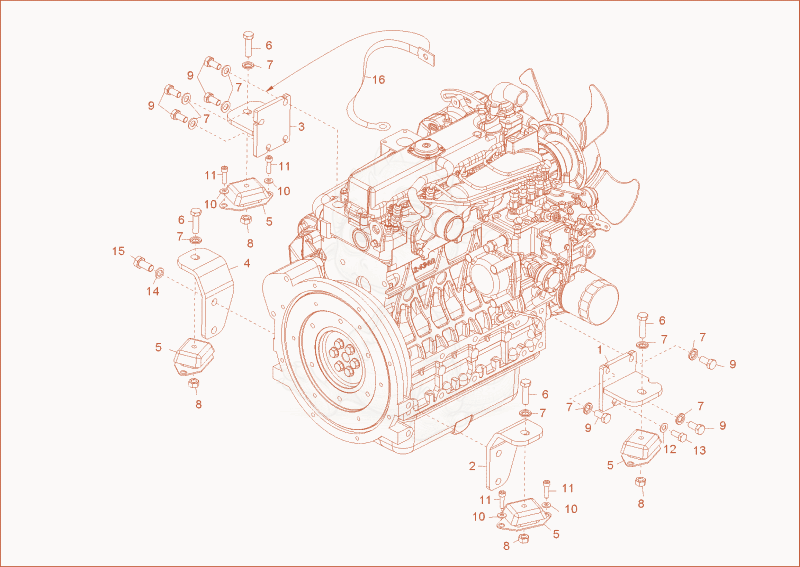

DT25 Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000281982Not stocked
    cover×1
  • 21000281849Not stocked
    bracket×1
  • 31000281847Not stocked
    bracket×1
  • 41000281848Not stocked
    bracket×1
  • 51000272210Not stocked
    hydro.bearing×4
  • 61000085420
    $1.54
    hex screw - 1000085420×4
  • 71000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×11
  • 81000015415Not stocked
    hexagon nut×4
  • 91000085448
    $1.71
    hex screw - 1000085448×7
  • 101000271022
    $1.90
    tension disc - 1000271022×8
  • 111000013014Not stocked
    cheese head screw×8
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 131000019511Not stocked
    hex screw×1
  • 141000281901Not stocked
    tension disc×4
  • 151000278737Not stocked
    hex screw×4
  • 161000281981Not stocked
    earth cable×1
