DT25

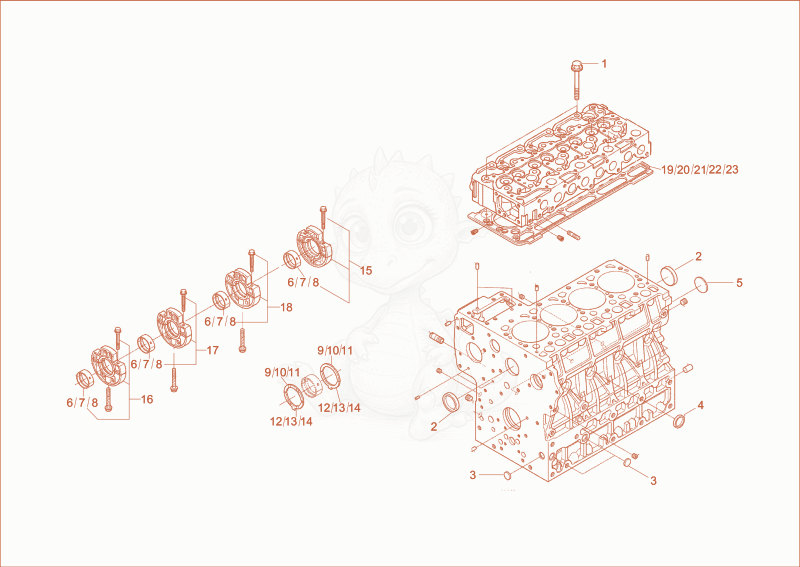

DT25 cylinder block Diagram

Exploded parts diagram of the cylinder block of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000085299Not stocked
    socket cap screw×18
  • 21000371642Not stocked
    lock plug×2
  • 31000371640Not stocked
    lock plug×2
  • 41000248591Not stocked
    plug×6
  • 51000371641Not stocked
    lock plug×1
  • 61000371722Not stocked
    MAIN BEARING SET×4
  • 71000371723Not stocked
    MAIN BEARING SET×4
  • 81000371724Not stocked
    MAIN BEARING SET×4
  • 91000371762Not stocked
    axial bearing×2
  • 101000371763Not stocked
    axial bearing×2
  • 111000371764Not stocked
    axial bearing×2
  • 121000371765Not stocked
    axial bearing×2
  • 131000371766Not stocked
    axial bearing×2
  • 141000371767Not stocked
    axial bearing×2
  • 151000371705Not stocked
    bearing housing×1
  • 161000371706Not stocked
    bearing housing×1
  • 171000371707Not stocked
    bearing housing×1
  • 181000371721Not stocked
    bearing housing×1
  • 191000371648Not stocked
    cylinder head gasket×1
  • 201000371649Not stocked
    cylinder head gasket×1
  • 211000371650Not stocked
    cylinder head gasket×1
  • 221000371651Not stocked
    cylinder head gasket×1
  • 231000371652Not stocked
    cylinder head gasket×1
