DT25

DT25 main harness Diagram

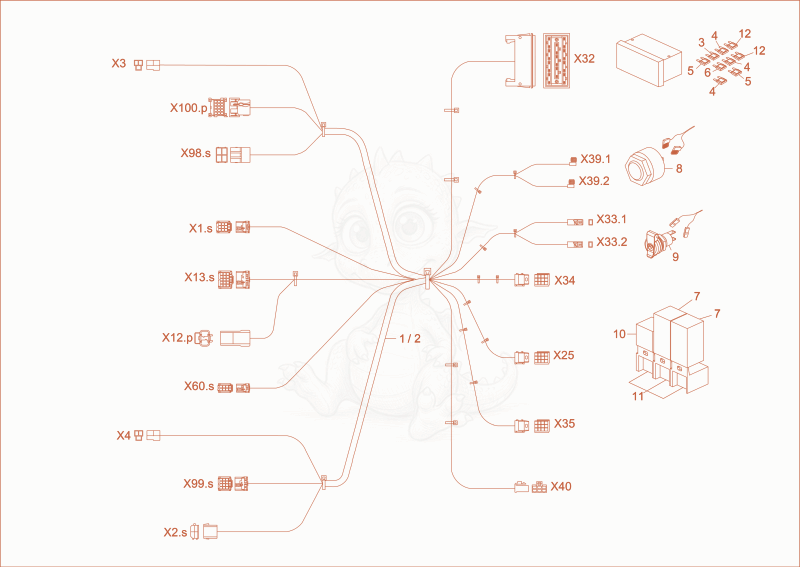

Exploded parts diagram of the main harness of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000281128Not stocked
    wiring harness×1
  • 21000396368Not stocked
    wiring harness×1
  • 31000272872
    $0.70
    FUSE - 1000272872×1
  • 41000272572
    $4.88
    FUSE - 1000272572×3
  • 51000272871
    $0.70
    FUSE - 1000272871×2
  • 61000272869
    $0.70
    FUSE - 1000272869×1
  • 71000281127Not stocked
    relay×2
  • 81000281126Not stocked
    signal×1
  • 91000002902Not stocked
    socket×1
  • 101000281125Not stocked
    relay×1
  • 111000281124Not stocked
    sockets×3
  • 121000274726
    $0.52
    FUSE - 1000274726×2
  • X321000001534Not stocked
    fuse box×1
