DT25

DT25 diesel engine Diagram

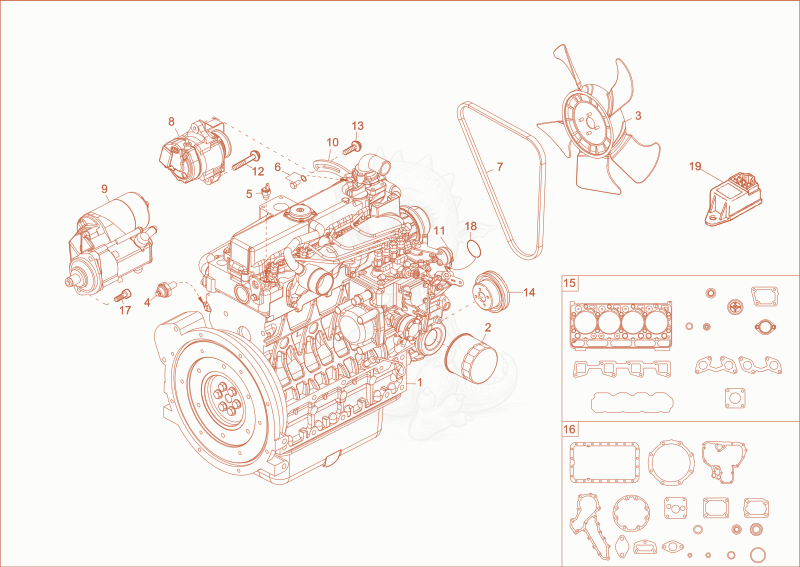

Exploded parts diagram of the diesel engine of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000281617Not stocked
    diesel engine×1
  • 21000004570
    $15.06
    ENGINE OIL FILTER - 1000004570×1
  • 31000281741Not stocked
    ventilator fan×1
  • 41000004613Not stocked
    oil pressure switch×1
  • 51000281618Not stocked
    temperature switch×1
  • 61000281466Not stocked
    plug×1
  • 71000283114Not stocked
    v-belt×1
  • 81000283121Not stocked
    generator×1
  • 91000283123Not stocked
    starter motor×1
  • 101000283038Not stocked
    clamp bar×1
  • 111000283115Not stocked
    shut off solenoid×1
  • 121000371871Not stocked
    hex screw×1
  • 131000371872Not stocked
    hex screw×1
  • 141000371875Not stocked
    belt pulley×1
  • 151000283119Not stocked
    seal kit×1
  • 161000283120Not stocked
    seal kit×1
  • 171000085241Not stocked
    hex screw×1
  • 181000371846Not stocked
    o-ring×1
  • 191000020957Not stocked
    preheating relay×1
