DT25

DT25 CHASSIS 2 (OPTION) Diagram

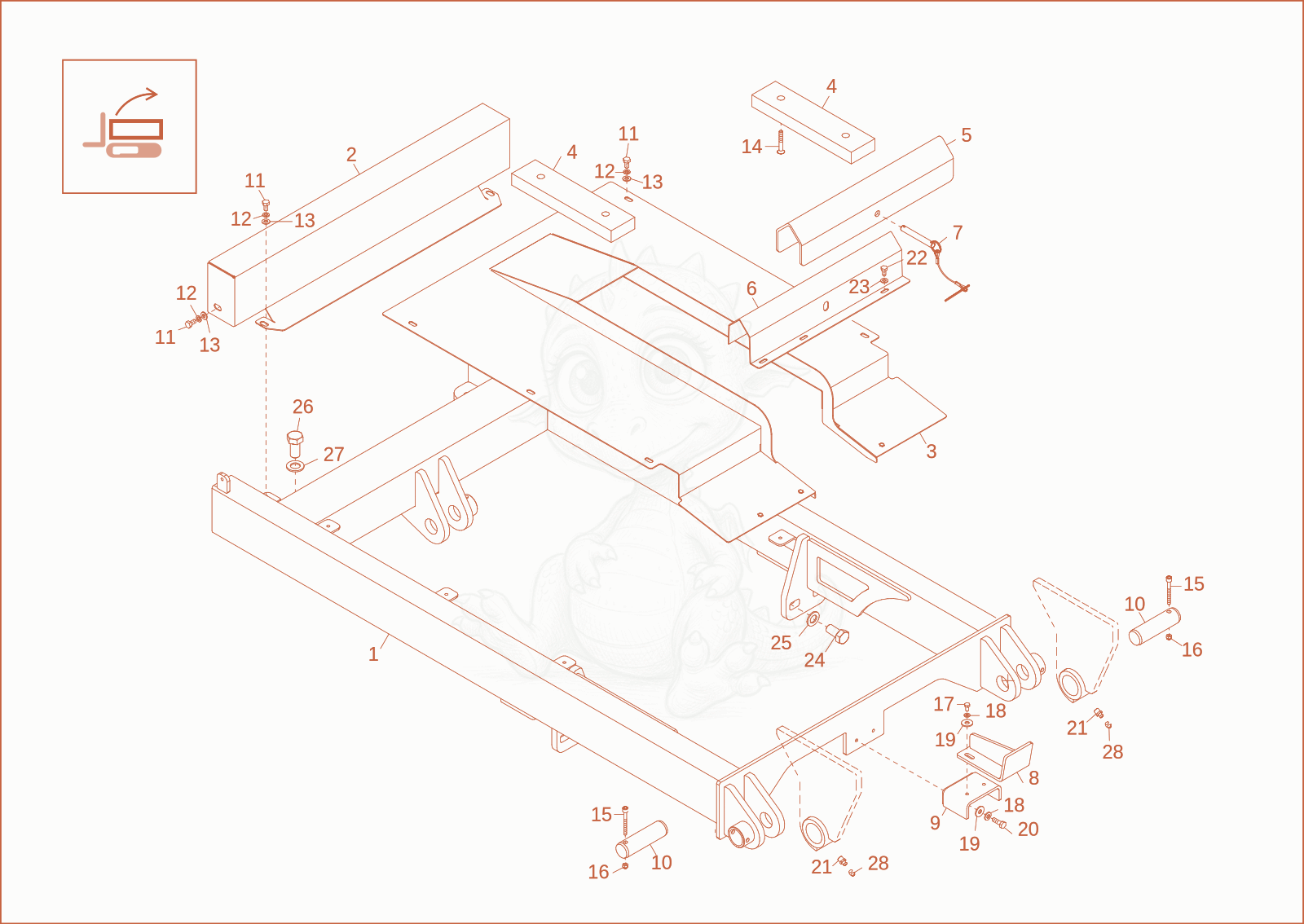

Exploded parts diagram of the CHASSIS 2 (OPTION) of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000285714Not stocked
    chassis×1
  • 21000285715Not stocked
    cover×1
  • 31000285716Not stocked
    cover×1
  • 41000285661Not stocked
    buffer×2
  • 51000285719Not stocked
    LOCK×1
  • 61000285720Not stocked
    LOCK×1
  • 71000274751
    $26.31
    PIN - 1000274751×1
  • 81000285721Not stocked
    bracket×1
  • 91000274755
    $78.76
    limit stop - 1000274755×1
  • 101000285722Not stocked
    pin×2
  • 111000019136Not stocked
    hex screw×10
  • 121000030951Not stocked
    spring washer×10
  • 131000015431Not stocked
    washer×10
  • 141000276079Not stocked
    countersunk screw×4
  • 151000022334Not stocked
    hex screw×2
  • 161000269279
    $2.48
    hexagon nut - 1000269279×2
  • 171000013008Not stocked
    hex screw×2
  • 181000030951Not stocked
    spring washer×2
  • 191000013027Not stocked
    washer×4
  • 201000015343Not stocked
    hex screw×2
  • 211000282335
    $2.07
    LUBRICATION NIPPLE - 1000282335×2
  • 221000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 231000015430Not stocked
    u-washer×3
  • 241000047792
    $2.13
    hex screw - 1000047792×4
  • 251000020820
    $3.19
    WASHER - 1000020820×4
  • 261000085419
    $1.05
    hex screw - 1000085419×4
  • 271000274784
    $2.48
    WASHER - 1000274784×4
  • 281000282746
    $0.70
    PROTECTION CAP - 1000282746×2
