DT25

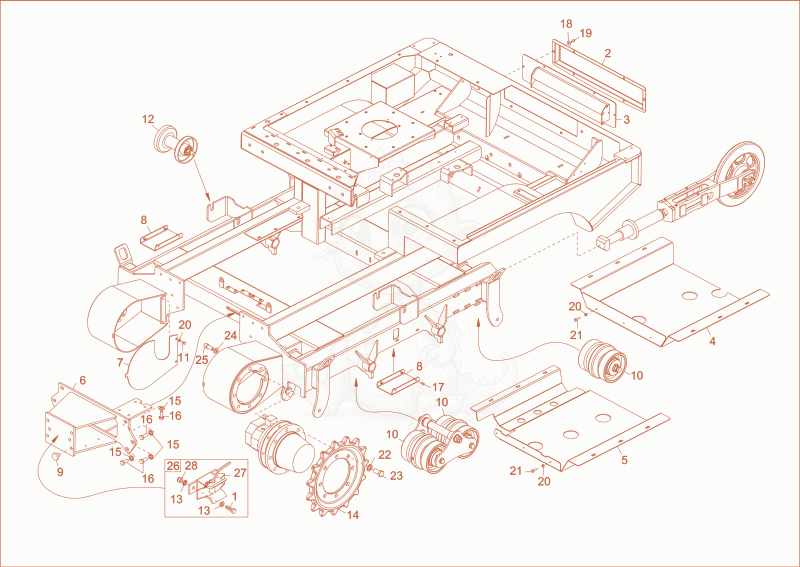

DT25 undercarriage Diagram

Exploded parts diagram of the undercarriage of a Wacker Neuson DT25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000047712Not stocked
    hex screw×1
  • 21000285981Not stocked
    cover×1
  • 31000285982Not stocked
    cover×1
  • 41000281982Not stocked
    cover×1
  • 51000279903Not stocked
    cover×1
  • 61000319813Not stocked
    tie rod×1
  • 71000279907Not stocked
    cover×2
  • 81000279905Not stocked
    cover×2
  • 91000285985
    $0.59
    RUBBER BUSHING - 1000285985×6
  • 101000272206Not stocked
    roller×12
  • 111000019136Not stocked
    hex screw×4
  • 121000280612Not stocked
    support roller×2
  • 131000273292
    $1.90
    WASHER - 1000273292×2
  • 141000279901Not stocked
    drive wheel×2
  • 151000020820
    $3.19
    WASHER - 1000020820×10
  • 161000047792
    $2.13
    hex screw - 1000047792×10
  • 171000085382
    $0.70
    HEX SCREW - 1000085382×8
  • 181000271815
    $1.29
    WASHER - 1000271815×6
  • 191000176788
    $5.94
    screw - 1000176788×6
  • 201000015431Not stocked
    washer×22
  • 211000015343Not stocked
    hex screw×18
  • 221000274784
    $2.48
    WASHER - 1000274784×16
  • 231000048020Not stocked
    hex screw×16
  • 241000273292
    $1.90
    WASHER - 1000273292×16
  • 251000048206Not stocked
    cheese head screw×16
  • 261000279909Not stocked
    tie rod×1
  • 271000285190Not stocked
    towing hook×1
  • 281000020788Not stocked
    hexagon nut×2
