DW30

DW30 pilot stand Rops (option) Diagram

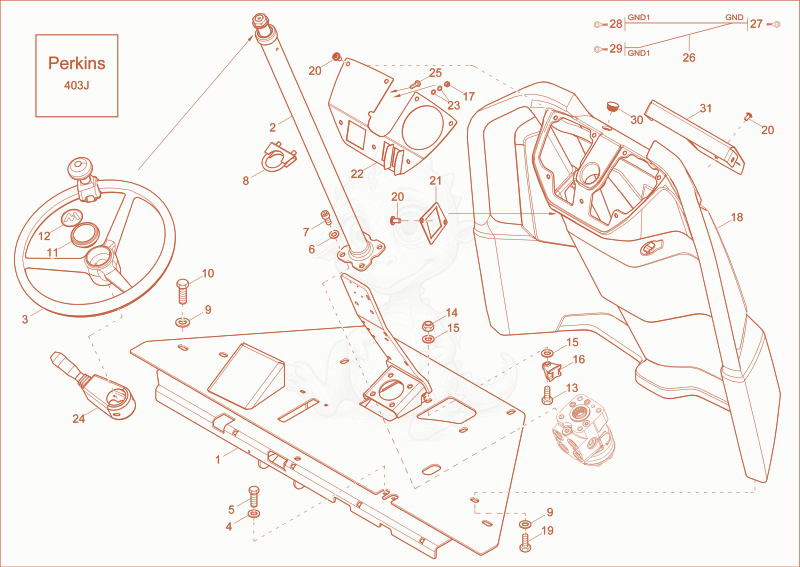

Exploded parts diagram of the pilot stand Rops (option) of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000431153Not stocked
    floor plate×1
  • 21000266442
    $284.35
    Steeringcolumn 1000266442×1
  • 31000310966Not stocked
    steering wheel×1
  • 41000015430Not stocked
    u-washer×2
  • 51000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 61000426230Not stocked
    lock washer×4
  • 71000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 81000001721
    $8.18
    clamp - 1000001721×1
  • 91000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 101000015364Not stocked
    hex screw×4
  • 111000198962
    $6.08
    cover cap - 1000198962×1
  • 121000234336
    $39.40
    Sticker - 1000234336×1
  • 131000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 141000357534Not stocked
    hexagon nut×1
  • 151000015448Not stocked
    washer×2
  • 161000372106
    $6.44
    bracket - 1000372106×1
  • 171000357533Not stocked
    hexagon nut×1
  • 181000381462Not stocked
    pilot stand×1
  • 191000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 201000326519Not stocked
    flat head screw×14
  • 211000390206Not stocked
    support×1
  • 221000424985
    $157.55
    plate - 1000424985×1
  • 231000174410
    $0.04
    DIN6797 Lock Washer A6.4 A2C - 1000174410×2
  • 241000378383Not stocked
    steeringstick switch×1
  • 251000085547
    $0.94
    flat head screw - 1000085547×2
  • 261000425470Not stocked
    earth cable×1
  • 271000365194
    $8.43
    cable lug - 1000365194×1
  • 281000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 291000050027Not stocked
    cable lug×1
  • 301000066219Not stocked
    plug×1
  • 311000411621Not stocked
    cover plate×1
