DW30

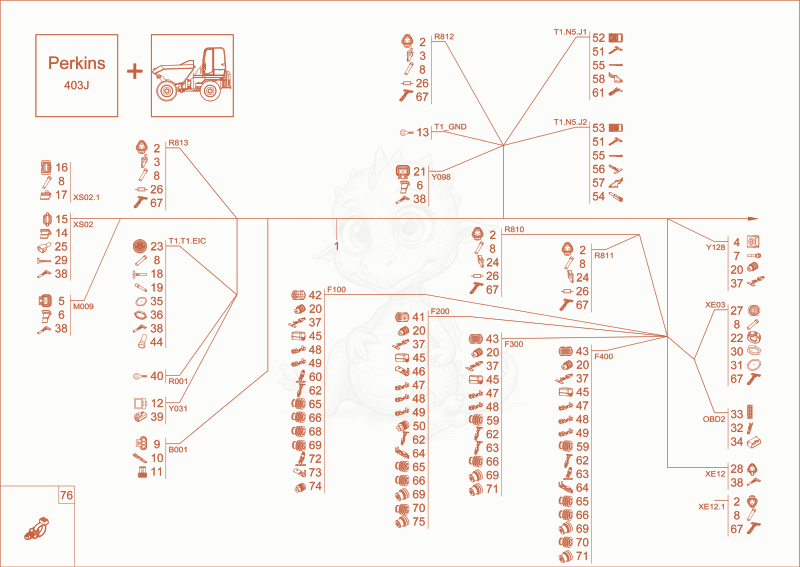

DW30 main harness 1 option Diagram

Exploded parts diagram of the main harness 1 option of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000444246Not stocked
    main harness×1
  • 21000027394Not stocked
    pin housing×5
  • 31000027400
    $1.79
    wedge - 1000027400×2
  • 41000027410
    $2.43
    Housing - 1000027410×1
  • 51000027438Not stocked
    bushing housing×1
  • 61000027442Not stocked
    wedge×2
  • 71000027466Not stocked
    protecting cap×1
  • 81000030446Not stocked
    plug×19
  • 91000051989Not stocked
    bushing housing×1
  • 101000051990Not stocked
    bushing contact×3
  • 111000052672Not stocked
    seal×3
  • 121000085014
    $4.18
    PLUG - 1000085014×1
  • 131000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 141000100723
    $2.77
    wedge - 1000100723×1
  • 151000105113
    $14.50
    bushing housing - 1000105113×1
  • 161000105117
    $53.23
    Pin housing - 1000105117×1
  • 171000105118
    $1.19
    wedge - 1000105118×1
  • 181000148274
    $1.84
    bushing contact - 1000148274×38
  • 191000161431
    $0.66
    Plug - 1000161431×4
  • 201000246747
    $1.41
    seal - 1000246747×26
  • 211000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 221000277443
    $22.68
    protecting cap - 1000277443×1
  • 231000277505
    $117.04
    Housing - 1000277505×1
  • 241000279149
    $2.59
    locking - 1000279149×2
  • 251000284442
    $3.65
    protecting cap - 1000284442×1
  • 261000289850
    $21.27
    resistor - 1000289850×4
  • 271000298661
    $386.76
    pin housing - 1000298661×1
  • 281000027429Not stocked
    housing×1
  • 291000309284Not stocked
    bushing contact×2
  • 301000312641
    $6.62
    hexagon nut - 1000312641×1
  • 311000312642Not stocked
    washer×1
  • 321000325527Not stocked
    bushing contact×7
  • 331000325528
    $16.47
    CONTACT-HOUSING - 1000325528×1
  • 341000345608Not stocked
    protecting cap×1
  • 351000349014Not stocked
    lock washer×1
  • 361000349016
    $10.54
    nut - 1000349016×1
  • 371000349535Not stocked
    sockets×26
  • 381000359612Not stocked
    plug connection×17
  • 391000371521Not stocked
    bushing contact×1
  • 401000379273Not stocked
    cable lug×1
  • 411000385300Not stocked
    fuse holder×1
  • 421000385304Not stocked
    fuse holder×1
  • 431000385694Not stocked
    fuse holder×2
  • 441000385705Not stocked
    protecting cap×1
  • 451000386208
    $26.92
    cover - 1000386208×4
  • 461000386505
    $7.91
    contactpin - 1000386505×2
  • 471000386509
    $2.07
    contactpin - 1000386509×12
  • 481000386510
    $2.07
    contactpin - 1000386510×32
  • 491000386551
    $2.44
    contactpin - 1000386551×14
  • 501000386554Not stocked
    seal×2
  • 511000403627Not stocked
    bushing contact×43
  • 521000403630Not stocked
    bushing housing×1
  • 531000403632Not stocked
    bushing housing×1
  • 541000403634Not stocked
    blind plug×8
  • 551000403635Not stocked
    blind plug×59
  • 561000403631Not stocked
    bushing contact×12
  • 571000403638Not stocked
    protecting cap×1
  • 581000403639Not stocked
    protecting cap×1
  • 591000407850Not stocked
    blind plug×38
  • 601000407856Not stocked
    bushing contact×2
  • 611000403628Not stocked
    bushing contact×6
  • 621000407858Not stocked
    bushing contact×17
  • 631000407859
    $3.14
    bushing contact SPT_1,0-2,5 MM² - 1000407859×5
  • 641000407862Not stocked
    bushing contact×10
  • 651000407864Not stocked
    seal×14
  • 661000407866Not stocked
    seal×44
  • 671000362407Not stocked
    pin contact×14
  • 681000407872Not stocked
    seal×2
  • 691000407873Not stocked
    seal×17
  • 701000407874Not stocked
    seal×10
  • 711000407875Not stocked
    seal×5
  • 721000407855Not stocked
    bushing contact×2
  • 731000386504
    $7.91
    contactpin - 1000386504×2
  • 741000386553Not stocked
    seal×2
  • 751000407853Not stocked
    blind plug×1
  • 761000322839Not stocked
    fixing bracket×1
