DW30

DW30 combicooler Rops (option) Diagram

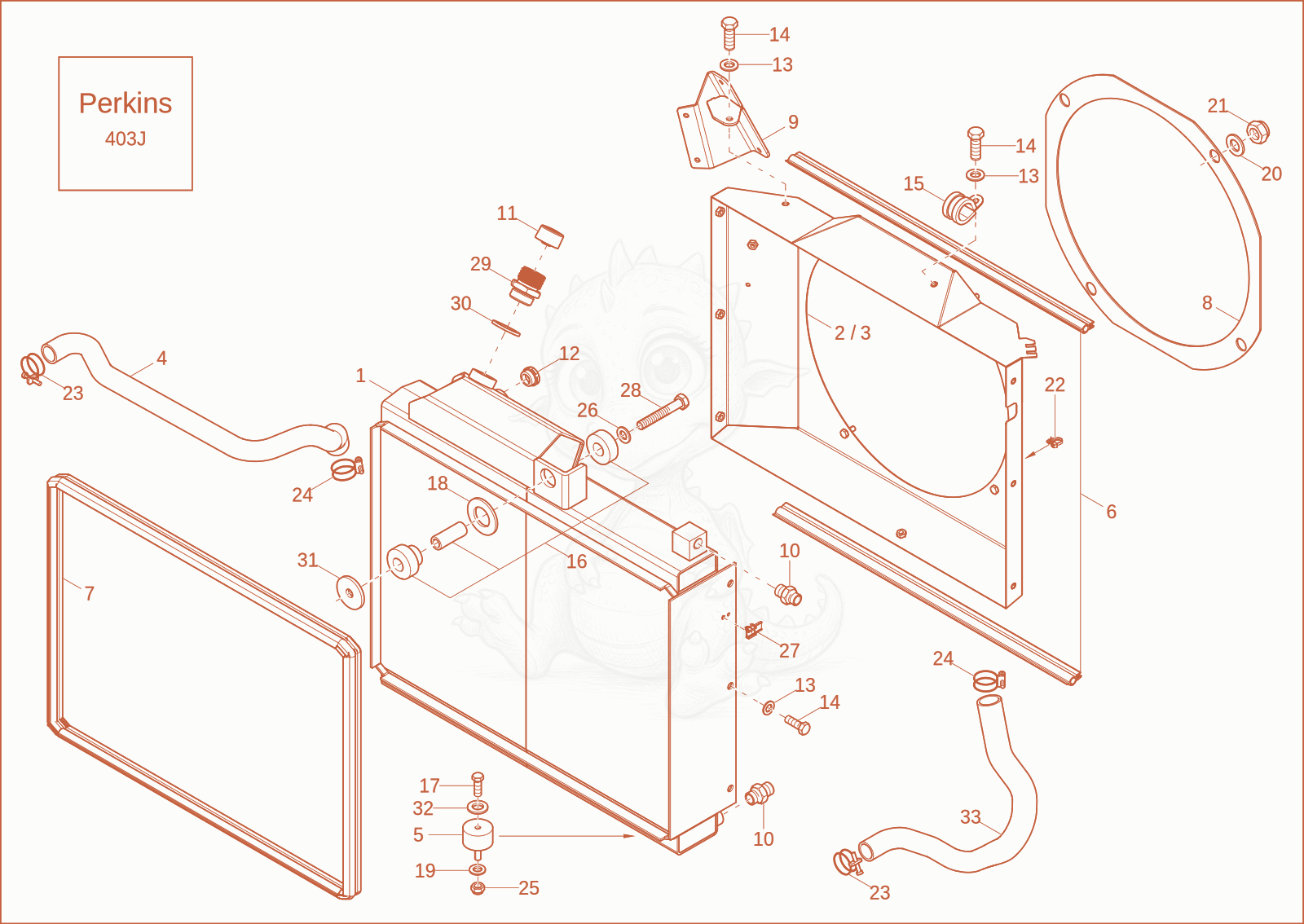

Exploded parts diagram of the combicooler Rops (option) of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000429558
    $2,020.25
    radiator - 1000429558×1
  • 21000429787Not stocked
    Radiator scoop×1
  • 31000444635Not stocked
    Radiator scoop×1
  • 41000491721
    $34.80
    cooler water hose - 1000491721×1
  • 51000004819Not stocked
    swing metal buffer×2
  • 61000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×2
  • 71000017845Not stocked
    rubber profile×3
  • 81000399267
    $147.60
    plate - 1000399267×1
  • 91000400362
    $49.18
    bracket - 1000400362×1
  • 101000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 111000375983Not stocked
    cooler cap×1
  • 121000273882
    $20.27
    view glass G3/4" - 1000273882×1
  • 131000015431Not stocked
    washer×9
  • 141000013008Not stocked
    hex screw×9
  • 151000062589Not stocked
    pipe clamp×2
  • 161000105025
    $63.79
    METAL- RUBBER BUFFER - 1000105025×1
  • 171000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 181000400782
    $3.07
    WASHER - 1000400782×1
  • 191000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 201000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 211000357534Not stocked
    hexagon nut×4
  • 221000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×4
  • 231000285399
    $3.64
    hose clamp - 1000285399×2
  • 241000285400
    $4.21
    hose clamp - 1000285400×2
  • 251000357535Not stocked
    hexagon nut×2
  • 261000049219Not stocked
    washer×1
  • 271000293439Not stocked
    clip×1
  • 281000085332
    $1.31
    HEX SCREW - 1000085332×1
  • 291000410963Not stocked
    end piece×1
  • 301000390986Not stocked
    seal ring×1
  • 311000438292
    $20.68
    washer - 1000438292×1
  • 321000426230Not stocked
    lock washer×2
  • 331000429792Not stocked
    water hose×1
