DW30

DW30 main harness 1 rops option Diagram

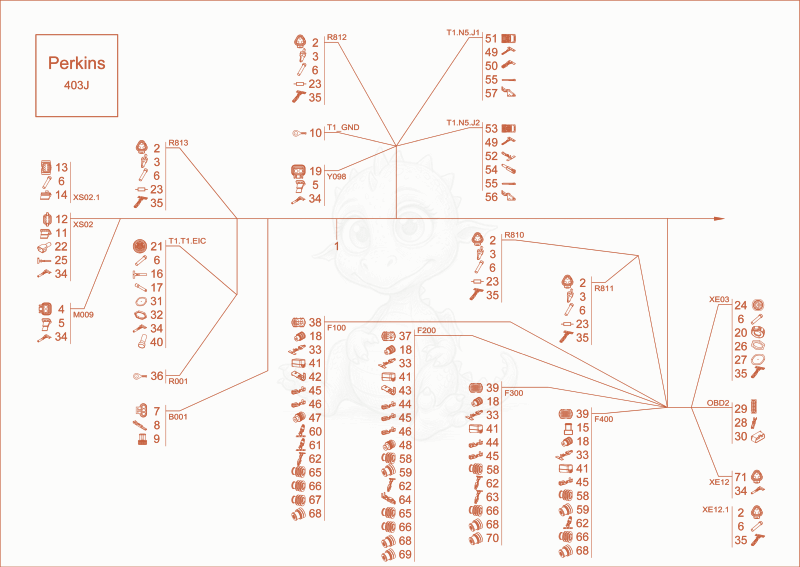

Exploded parts diagram of the main harness 1 rops option of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000444245Not stocked
    main harness×1
  • 21000027394Not stocked
    pin housing×5
  • 31000027400
    $1.79
    wedge - 1000027400×4
  • 41000027438Not stocked
    bushing housing×1
  • 51000027442Not stocked
    wedge×2
  • 61000030446Not stocked
    plug×19
  • 71000051989Not stocked
    bushing housing×1
  • 81000051990Not stocked
    bushing contact×3
  • 91000052672Not stocked
    seal×3
  • 101000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 111000100723
    $2.77
    wedge - 1000100723×1
  • 121000105113
    $14.50
    bushing housing - 1000105113×1
  • 131000105117
    $53.23
    Pin housing - 1000105117×1
  • 141000105118
    $1.19
    wedge - 1000105118×1
  • 151000128773
    $0.32
    Plug - 1000128773×6
  • 161000148274
    $1.84
    bushing contact - 1000148274×39
  • 171000161431
    $0.66
    Plug - 1000161431×3
  • 181000246747
    $1.41
    seal - 1000246747×18
  • 191000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 201000277443
    $22.68
    protecting cap - 1000277443×1
  • 211000277505
    $117.04
    Housing - 1000277505×1
  • 221000284442
    $3.65
    protecting cap - 1000284442×1
  • 231000289850
    $21.27
    resistor - 1000289850×4
  • 241000298661
    $386.76
    pin housing - 1000298661×1
  • 251000309284Not stocked
    bushing contact×2
  • 261000312641
    $6.62
    hexagon nut - 1000312641×1
  • 271000312642Not stocked
    washer×1
  • 281000325527Not stocked
    bushing contact×7
  • 291000325528
    $16.47
    CONTACT-HOUSING - 1000325528×1
  • 301000345608Not stocked
    protecting cap×1
  • 311000349014Not stocked
    lock washer×1
  • 321000349016
    $10.54
    nut - 1000349016×1
  • 331000349535Not stocked
    sockets×18
  • 341000359612Not stocked
    plug connection×17
  • 351000362407Not stocked
    pin contact×14
  • 361000379273Not stocked
    cable lug×1
  • 371000385300Not stocked
    fuse holder×1
  • 381000385304Not stocked
    fuse holder×1
  • 391000385694Not stocked
    fuse holder×2
  • 401000385705Not stocked
    protecting cap×1
  • 411000386208
    $26.92
    cover - 1000386208×4
  • 421000386504
    $7.91
    contactpin - 1000386504×2
  • 431000386505
    $7.91
    contactpin - 1000386505×2
  • 441000386509
    $2.07
    contactpin - 1000386509×10
  • 451000386510
    $2.07
    contactpin - 1000386510×24
  • 461000386551
    $2.44
    contactpin - 1000386551×8
  • 471000386553Not stocked
    seal×2
  • 481000386554Not stocked
    seal×2
  • 491000403627Not stocked
    bushing contact×45
  • 501000403628Not stocked
    bushing contact×6
  • 511000403630Not stocked
    bushing housing×1
  • 521000403631Not stocked
    bushing contact×12
  • 531000403632Not stocked
    bushing housing×1
  • 541000403634Not stocked
    blind plug×8
  • 551000403635Not stocked
    blind plug×57
  • 561000403638Not stocked
    protecting cap×1
  • 571000403639Not stocked
    protecting cap×1
  • 581000407850Not stocked
    blind plug×54
  • 591000407853Not stocked
    blind plug×7
  • 601000407855Not stocked
    bushing contact×2
  • 611000407856Not stocked
    bushing contact×2
  • 621000407858Not stocked
    bushing contact×17
  • 631000407859
    $3.14
    bushing contact SPT_1,0-2,5 MM² - 1000407859×3
  • 641000407862Not stocked
    bushing contact×6
  • 651000407864Not stocked
    seal×8
  • 661000407866Not stocked
    seal×34
  • 671000407872Not stocked
    seal×2
  • 681000407873Not stocked
    seal×17
  • 691000407874Not stocked
    seal×6
  • 701000407875Not stocked
    seal×3
  • 711000027429Not stocked
    housing×1
