DW30

DW30 skip (option) Diagram

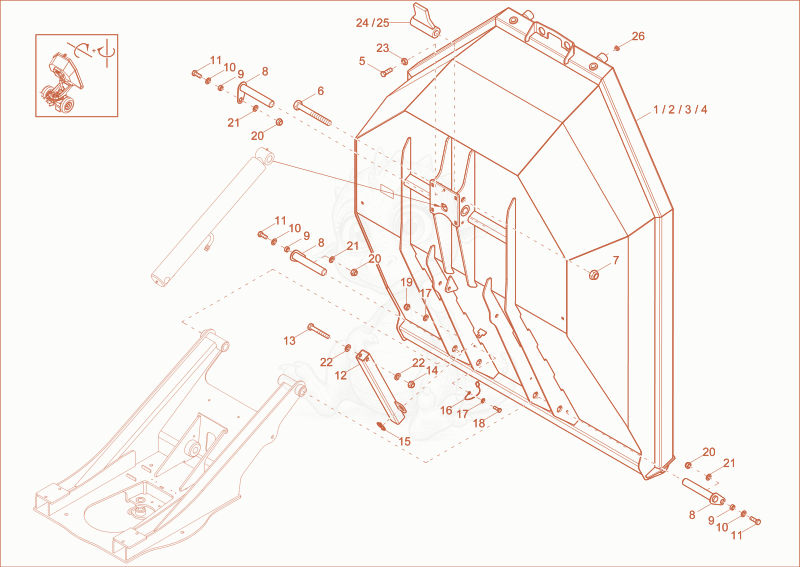

Exploded parts diagram of the skip (option) of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000428742
    $13,214.64
    Skip - 1000428742×1
  • 21000428744
    $13,214.64
    Skip - 1000428744×1
  • 31000470610Not stocked
    skip×1
  • 41000470611Not stocked
    skip×1
  • 51000085438
    $1.16
    6-piont screw M12x50 - 1000085438×1
  • 61000163520
    $9.16
    hex screw - 1000163520×1
  • 71000389603
    $3.98
    screw - 1000389603×1
  • 81000411528
    $77.72
    pin - 1000411528×3
  • 91000151025
    $3.03
    washer 18/12x5 - 1000151025×3
  • 101000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×3
  • 111000015346Not stocked
    hex screw×3
  • 121000384961
    $419.31
    Console - 1000384961×1
  • 131000085341
    $2.71
    hex screw - 1000085341×1
  • 141000350326Not stocked
    hexagon nut×1
  • 151000015457Not stocked
    cotter pin×1
  • 161000082230
    $3.67
    FIXING STRAP - 1000082230×1
  • 171000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 181000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×1
  • 191000357533Not stocked
    hexagon nut×1
  • 201000357535Not stocked
    hexagon nut×3
  • 211000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 221000085605
    $1.57
    washer A 17 St A2C DIN125 - 1000085605×2
  • 231000015415Not stocked
    hexagon nut×1
  • 241000384907Not stocked
    swivel lock×1
  • 251000450733Not stocked
    swivel lock×1
  • 261000315345Not stocked
    plug×2
