DW30

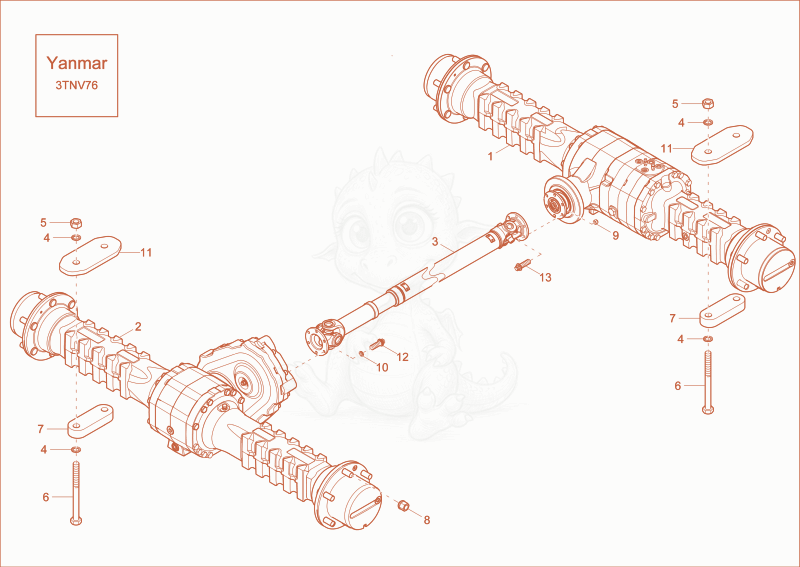

DW30 AXLE Diagram

Exploded parts diagram of the AXLE of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000382382Not stocked
    front axle×1
  • 21000382398Not stocked
    rear axle×1
  • 31000382639Not stocked
    cardan shaft×1
  • 41000094973
    $2.49
    NORTHLOCK DISC - 1000094973×16
  • 51000021948Not stocked
    hexagon nut×8
  • 61000085351
    $5.15
    HEX SCREW - 1000085351×8
  • 71000334318Not stocked
    axle bracket×4
  • 81000345446Not stocked
    wheel nut×24
  • 91000357534Not stocked
    hexagon nut×6
  • 101000094995
    $0.93
    Nord-Lock disc NL8 - 1000094995×6
  • 111000385663Not stocked
    plate×4
  • 121000447906Not stocked
    screw×6
  • 131000447907Not stocked
    screw×6
