DW30

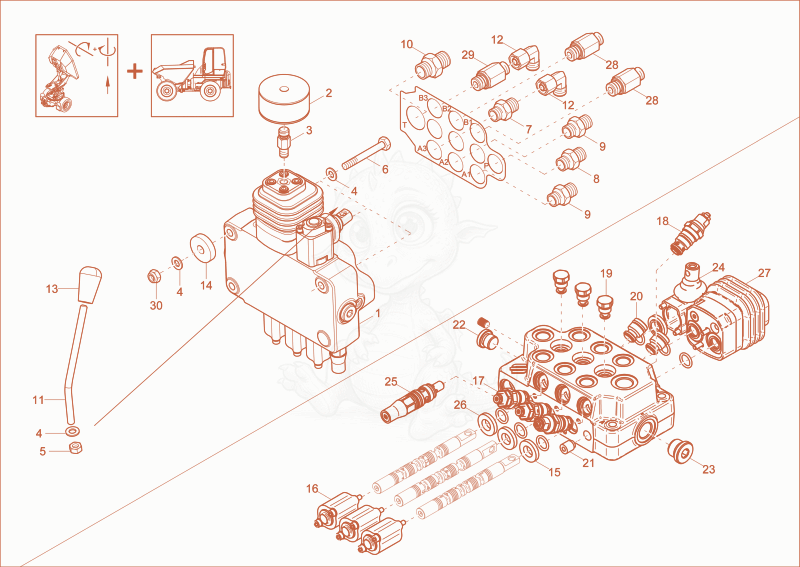

DW30 CONTROL BLOCK Diagram

Exploded parts diagram of the CONTROL BLOCK of a Wacker Neuson DW30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000449676Not stocked
    control block×1
  • 21000387210Not stocked
    rubber buffer×1
  • 31000387225Not stocked
    adapter joystik×1
  • 41000015431Not stocked
    washer×7
  • 51000015406Not stocked
    hexagon nut×1
  • 61000022334Not stocked
    hex screw×3
  • 71000015491Not stocked
    screw joint×1
  • 81000015533Not stocked
    screw joint×1
  • 91000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 101000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×1
  • 111000390341
    $46.02
    lever - 1000390341×1
  • 121000015510Not stocked
    screw joint×2
  • 131000171776
    $10.32
    HANDLE - 1000171776×1
  • 141000326520Not stocked
    rubber shock absorber×3
  • 151000424767Not stocked
    seal kit×2
  • 161000424768Not stocked
    valve cap×3
  • 171000424770Not stocked
    pressure limit reliefvalve×2
  • 181000424792Not stocked
    pressure limit reliefvalve×2
  • 191000442931Not stocked
    non return valve×3
  • 201000424795
    $41.83
    Plug - 1000424795×2
  • 211000424796
    $11.90
    Plug - 1000424796×2
  • 221000424797
    $11.90
    Plug - 1000424797×1
  • 231000424798
    $16.24
    Plug - 1000424798×1
  • 241000424802Not stocked
    lever fastening set×1
  • 251000424799
    $95.06
    Valve - 1000424799×1
  • 261000424800Not stocked
    seal kit×1
  • 271000424801Not stocked
    lever fastening set×1
  • 281000290335
    $6.55
    screw joint 12L-3/8" EDL=51 - 1000290335×2
  • 291000263161
    $69.04
    screw joint 10L-3/8" EDL=51 - 1000263161×1
  • 301000357534Not stocked
    hexagon nut×3
