EZ17e

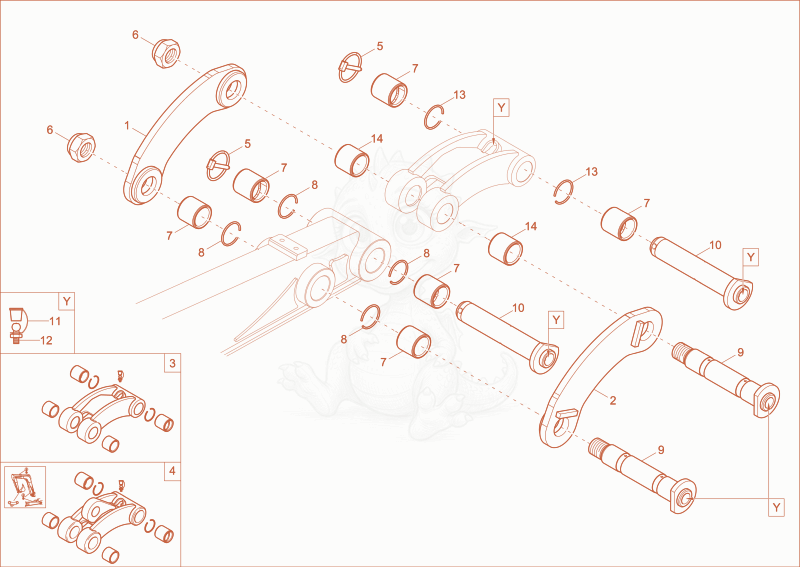

EZ17E support Diagram

Exploded parts diagram of the support of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000004471Not stocked
    pivot plate×1
  • 21000004472Not stocked
    pivot plate×1
  • 31000281009
    $2,357.53
    Pre Assembledconnectinglink 1000281009×1
  • 41000281011
    $1,124.40
    Pre Assembledconnectinglink 1000281011×1
  • 51000015457Not stocked
    cotter pin×2
  • 61000015421Not stocked
    hexagon nut×2
  • 71000015613Not stocked
    steel bushing×6
  • 81000092456
    $3.09
    lock ring - 1000092456×4
  • 91000267685
    $92.82
    pin DM=32x200 - 1000267685×2
  • 101000267686
    $45.61
    pin DM=32x190 - 1000267686×2
  • 111000015480Not stocked
    cap grease nipple×5
  • 121000015475Not stocked
    grease nipple×5
  • 131000015466Not stocked
    lock ring×2
  • 141000015611Not stocked
    steel bushing×2
