EZ17e

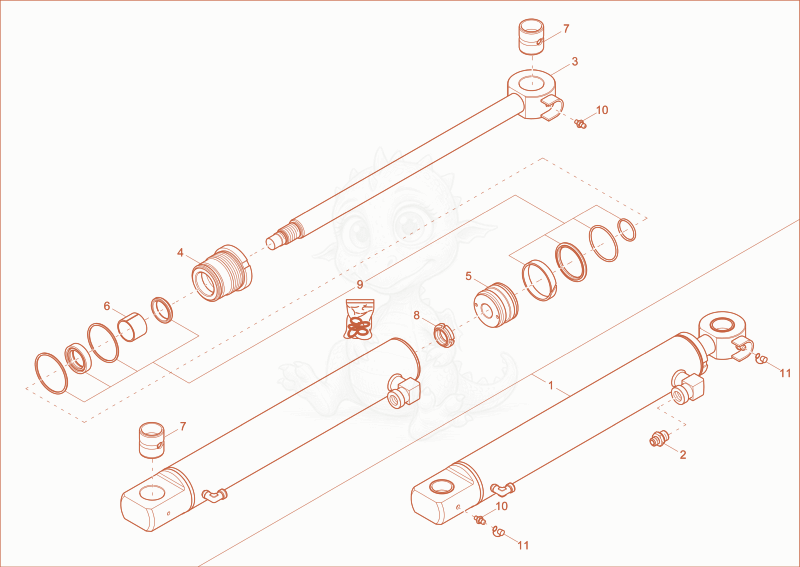

EZ17E boom offset cylinder Diagram

Exploded parts diagram of the boom offset cylinder of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000386356Not stocked
    boom offset cylinder×1
  • 21000015489Not stocked
    screw joint×1
  • 31000414694Not stocked
    piston rod×1
  • 41000414650
    $109.04
    bushing - 1000414650×1
  • 51000403795
    $72.81
    Piston - 1000403795×1
  • 61000403747Not stocked
    slide bearing×1
  • 71000403740
    $61.85
    Bushing - 1000403740×2
  • 81000399498
    $38.26
    Nut - 1000399498×1
  • 91000414693Not stocked
    seal kit×1
  • 101000422192Not stocked
    grease nipple×2
  • 111000015480Not stocked
    cap grease nipple×2
