EZ17E 3. HYDRAULIC CIRCUIT (OPTION) Diagram

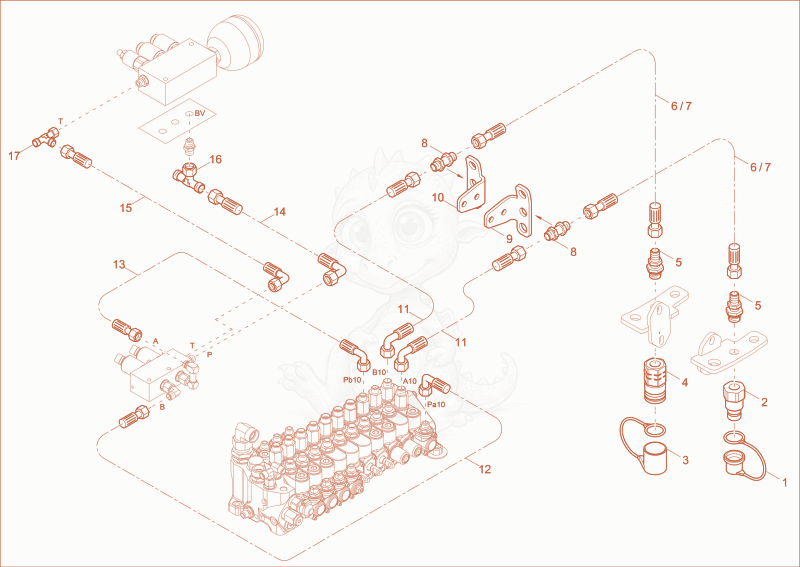

Exploded parts diagram of the 3. HYDRAULIC CIRCUIT (OPTION) of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000109416
    $8.43
    Protection cap - 1000109416×1
  • 21000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 31000109417
    $10.12
    Protection cap - 1000109417×1
  • 41000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 51000238586
    $18.41
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×2
  • 61000290982
    $38.64
    SLHYDR 2SC 8,0PN10 0 PN10 0 L520,0F0 - 1000290982×2
  • 71000290985
    $44.66
    SLHYDR 2SC 8,0PN10 0 PN10 0 L670,0F0 - 1000290985×2
  • 81000085076
    $4.95
    SV10-L - 1000085076×2
  • 91000279112
    $20.80
    bracket - 1000279112×1
  • 101000276093
    $22.47
    bracket - 1000276093×1
  • 111000421835Not stocked
    Hose×2
  • 121000277501
    $33.18
    SLHYDR 1SCP5,0PN8 90 PN8 0 L550,0 0 - 1000277501×1
  • 131000277445
    $40.76
    SLHYDR 1SCP5,0PN8 90 PN8 0 L300,0 0 - 1000277445×1
  • 141000420341Not stocked
    Hose×1
  • 151000421837Not stocked
    Hose×1
  • 161000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 171000015515Not stocked
    screw joint×1
